Kiturami TURBO CONDENSING - 13 - 2 Product Structure; Appearance and Components

OIL CONDENSING BOILER
INSTALLATION AND USER MANUAL
INSTALLATION & USER MANUAL www.krb.co.kr 11
2. Product Structure

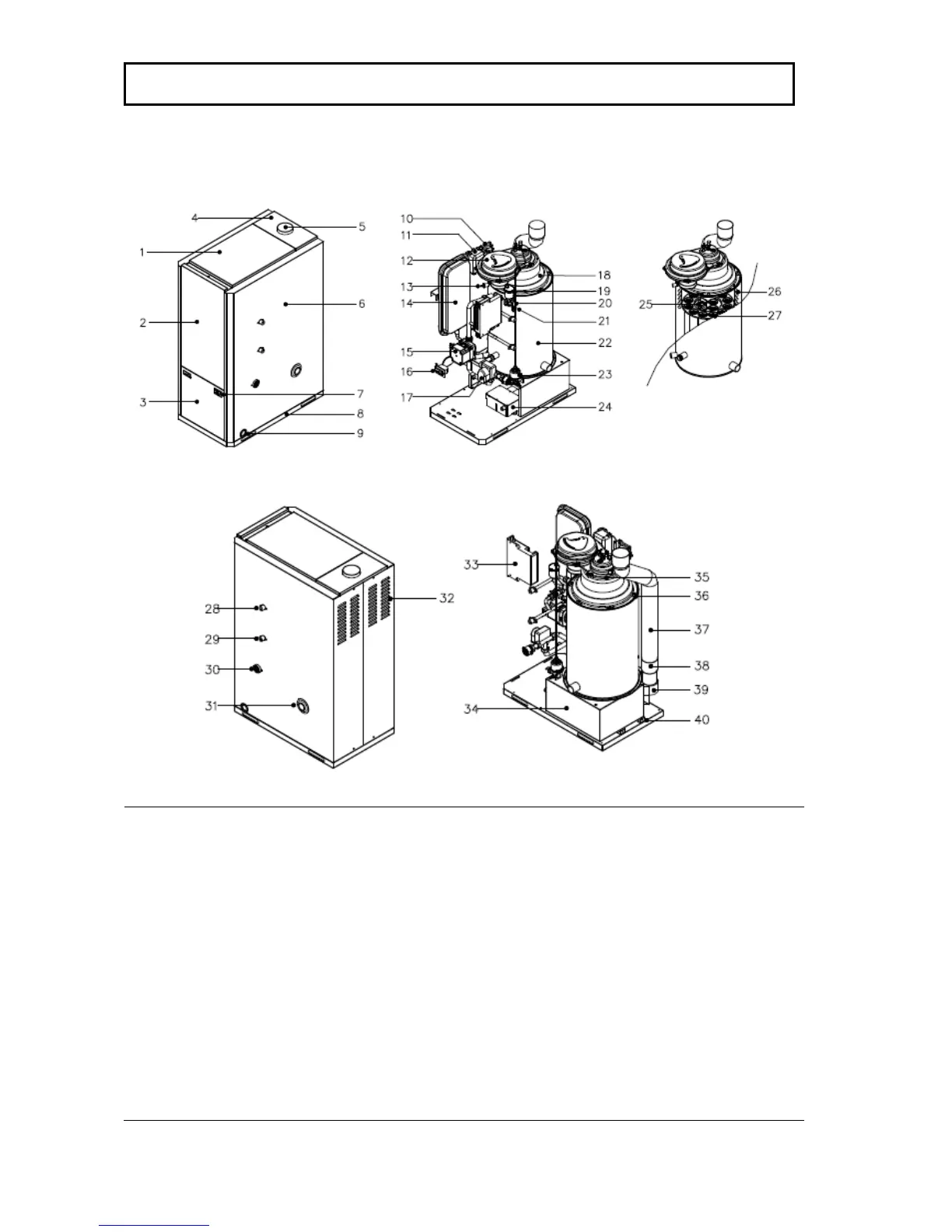

2.1. Appearance and components
Fig. 2.1 Front view of the boiler
Fig. 2.2 Rear view of the boiler
1 A/S cover 12 Oil burner 22 Heat exchanger 33 Control unit
2 Front casing (upper)
13 Low water level
23 Oil pump 34 Heat exchanger
3 Front casing (lower)
14
Sensor
Expansion tank
24 Neutralizer support
4 Upper cover 25 Baffle plate 35 Burner gasket
5
Exhaust flue connector
15
16
Circulating pump
Pressure gauge
26 Hot water coil 36 Hood packing
6 Side/rear casing 27 HI-Fin flue pipe 37 Exhaust tube
7 Power switch 17 3Way valve 28 Hot water outlet 38 Flue O-ring
8 Bottom casing 18 Upper hood 29 Hot water inlet 39
Condensate drainage
9
Condensate drain hole
19 Air vent 30 Heating outlet 40 Casing bracket
10
Air pressure switch 20 Thermostat 31 Heating return
11
Ignition transformer
21 Water temp. sensor 32 Air frill
