3.5.2 Installation in the ceiling

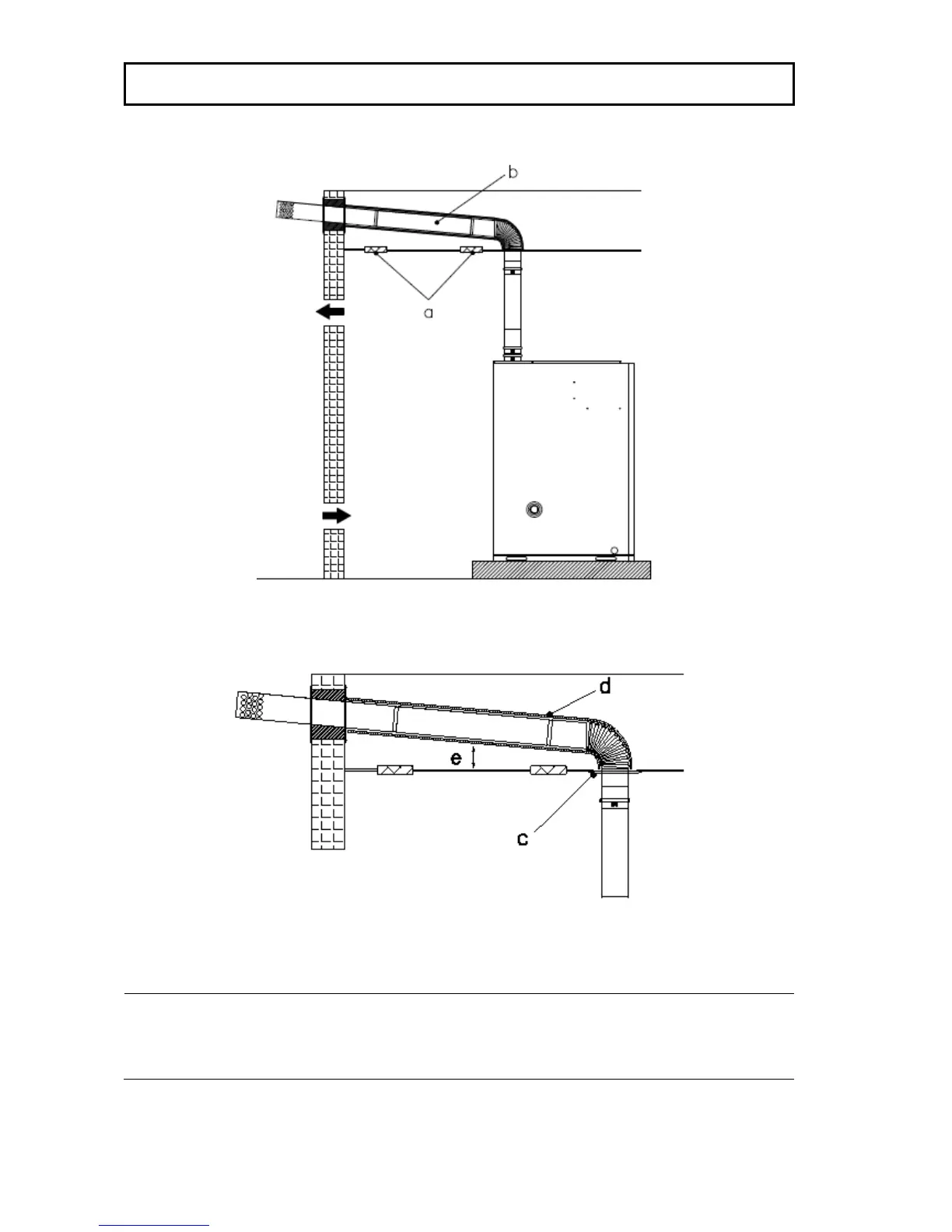

Fig. 3.6. Installation in the ceiling
Fig. 3.7. Detailed view in the ceiling
a Inspection hole d Insulation 20 mm or more thick
b Exhaust pipe e Min 50 mm from the ceiling
c Cover (incombustible material)
