OIL CONDENSING BOILER
INSTALLATION AND USER MANUAL
INSTALLATION & USER MANUAL www.krb.co.kr
28

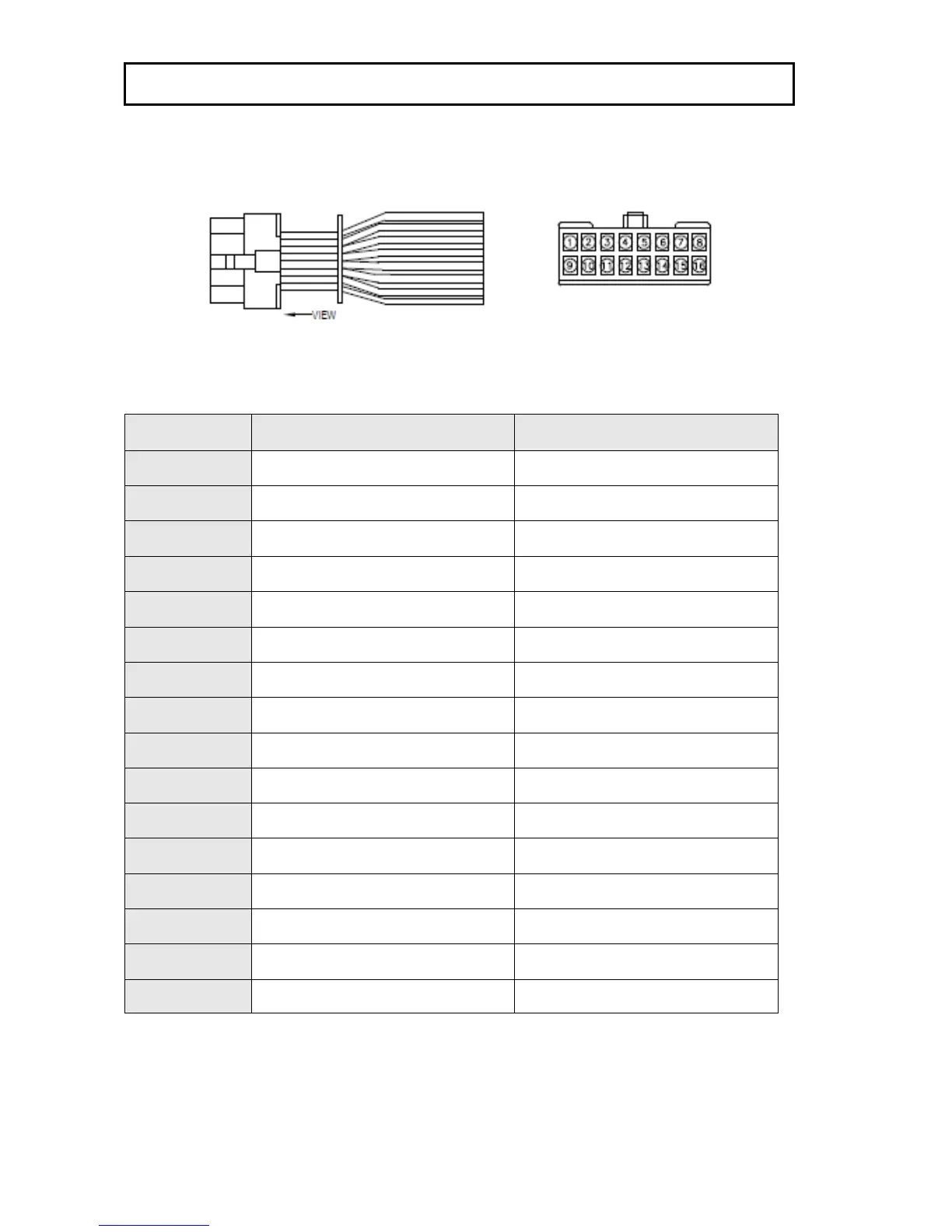

3.8.3 Connector cable structure
Fig. 3.16 16 Pin connector
Terminal No. Classification Color
1 - -
2 - -
3 AC 230V COM White
4 AC 230V Sky / Black
5 Burner motor Yellow
6 - -
7 Ignition transformer Red
8 Fuel pump Blue
9 Earth Yellow / Green
10 - -
11 - -
12 - -
13 Burner motor COM Yellow
14 - -
15 Ignition transformer COM Red
16 Fuel pump COM Blue
