3.3. Product dimensions and pipeline size

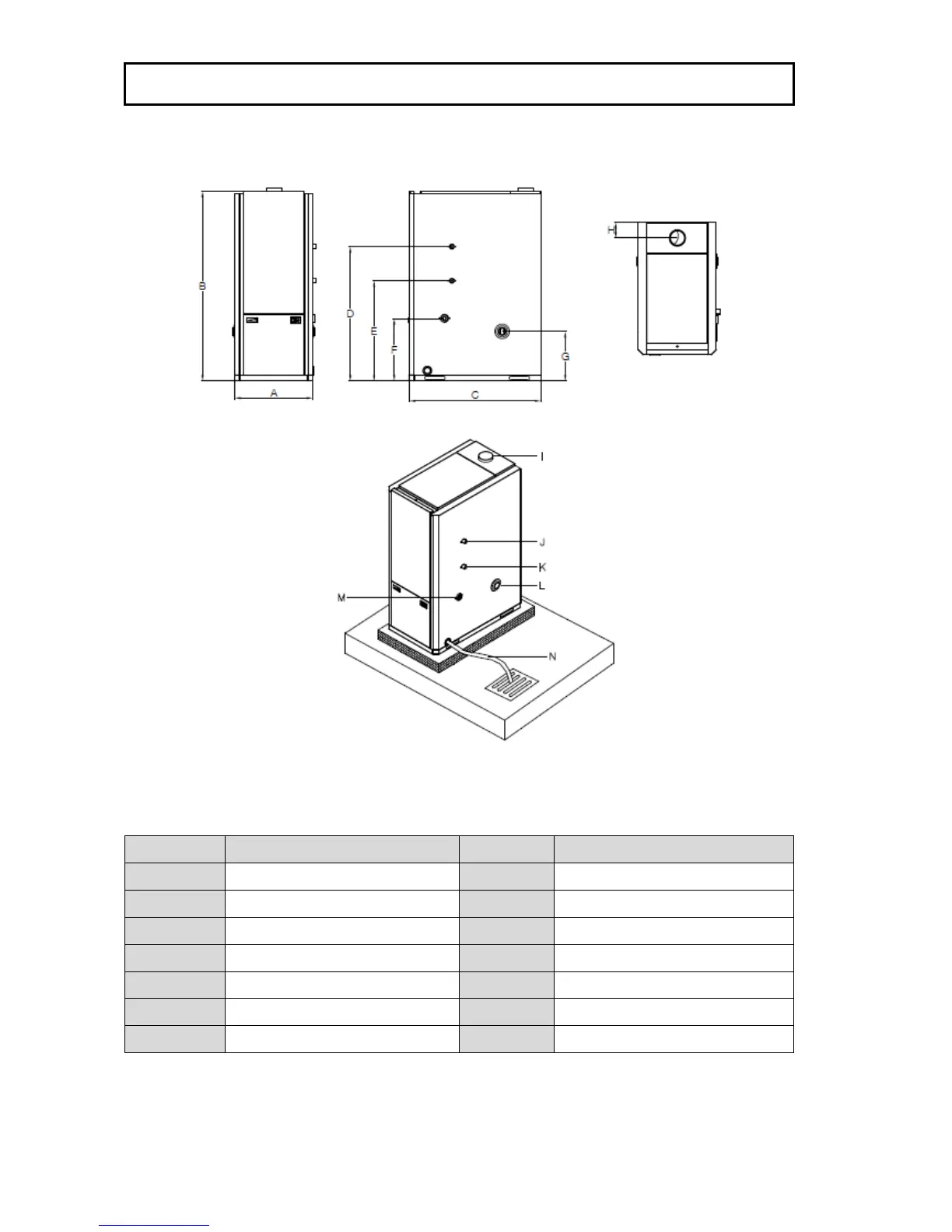

Fig. 3.2. Boiler dimensions
(Unit: mm)
Item Size Item Size
A 385 ± 5 H 77 ± 5
B 933 ± 5 I Flue dia. DN 77
C 650 ± 5 J Hot water outlet G 1/2”
D 661 ± 5 K Hot water inlet G 1/2”
E 493 ± 5 L Heating return/drain G1”
F 308 ± 5 M Heating water outlet G1””
G 244 ± 5 N Condensate drain hose DN 16.5
