3.9. Room temperature controller installation
1
Install the controller mounting plate in a place convenient
for operation, where the temperature varies by relatively
smaller, where there is no obstacle, at 1.2m ~ 1.5m above
the floor.
(Avoid the places close to frequently open/closed door, cold
draft, direct sunlight, within the reach of children.)

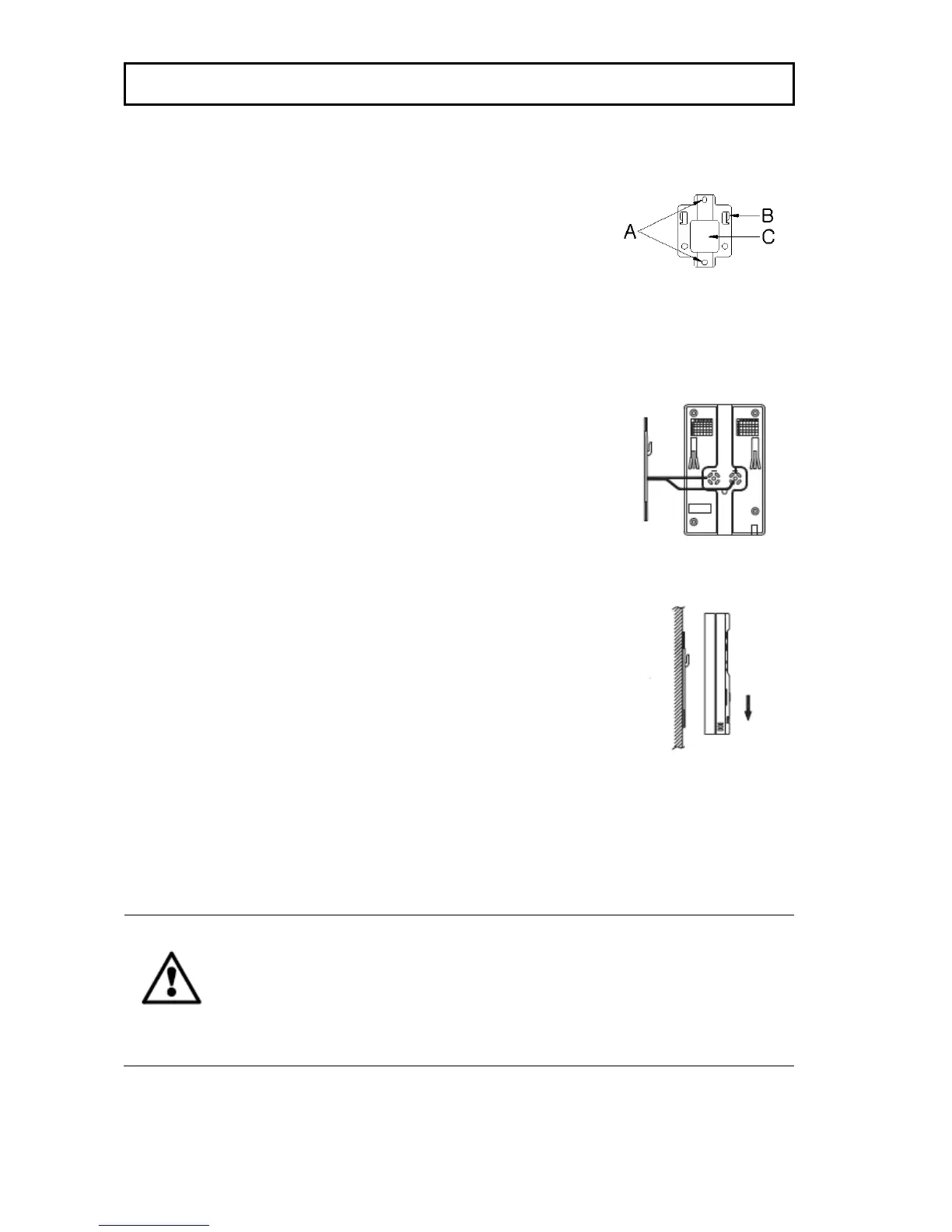

A Screws
B Hook
C Cable hole
2
Connect cable to the terminal block on the backside of the
room temperature controller.
3
Match the hook of the controller and the ring of the
mounting plate, pull down the controller while pressing
towards the wall.
• Do not lay under the floor, or in the same conduit with electric cable. Otherwise,
the signals may become instable which can cause boiler malfunction. In addition,
when the sheath of the cable is aged, the wires can cause short-circuit due to
leakage current or moisture.
