3.7. Fuel line installation
3.7.1 Fuel tank installation

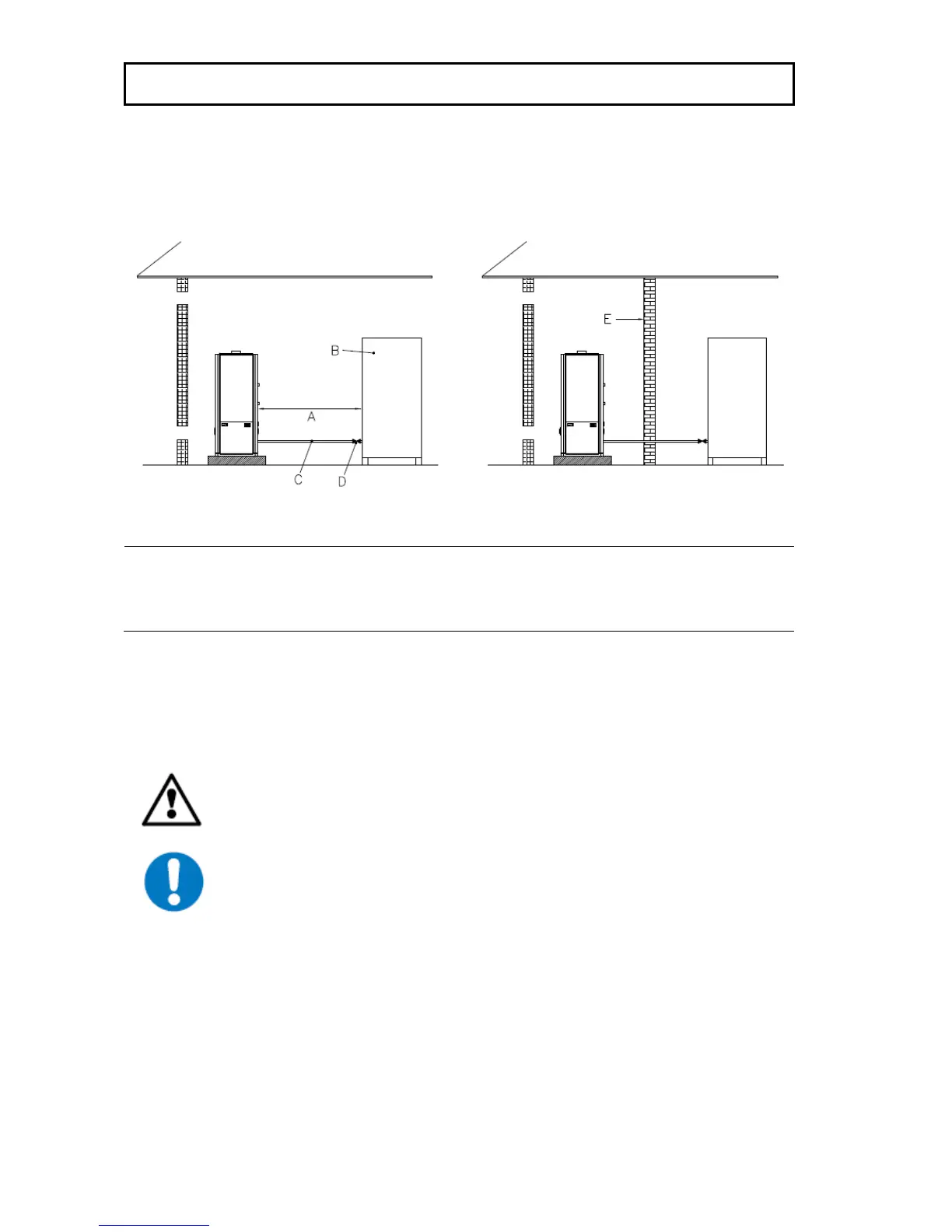

Fig. 3.11. Fuel tank installation
A Away from the boiler by 2 m or more D Fuel valve (a must item)
B Fuel tank E Fire wall
C Fuel line
ㆍ Use a certified fuel tank.
ㆍ Install the tank at a place well-ventilated and safe from direct sunlight and
rain.
ㆍ Keep a safety distance of about 2 m from the boiler, or construct a fire wall
between the boiler and fuel tank.
ㆍ The fuel tank must be provided with a pressure escape tube and drain valve
for safety.
ㆍ Fuel outlet must be provided with a fuel cut-off valve.
ㆍ Fix the fuel tank on the ground to prevent falling over, and horizontal on the
ground.
ㆍ Height of the fuel tank must be within 2 m above and below the level of the
burner. (If lower than the boiler, ignition may fail.)
ㆍ The fuel pipe must be exposed and fixed to the ground to prevent
displacement.
ㆍ The fuel pipe must be made of an anti-corrosive material.
