8. Care and maintenance

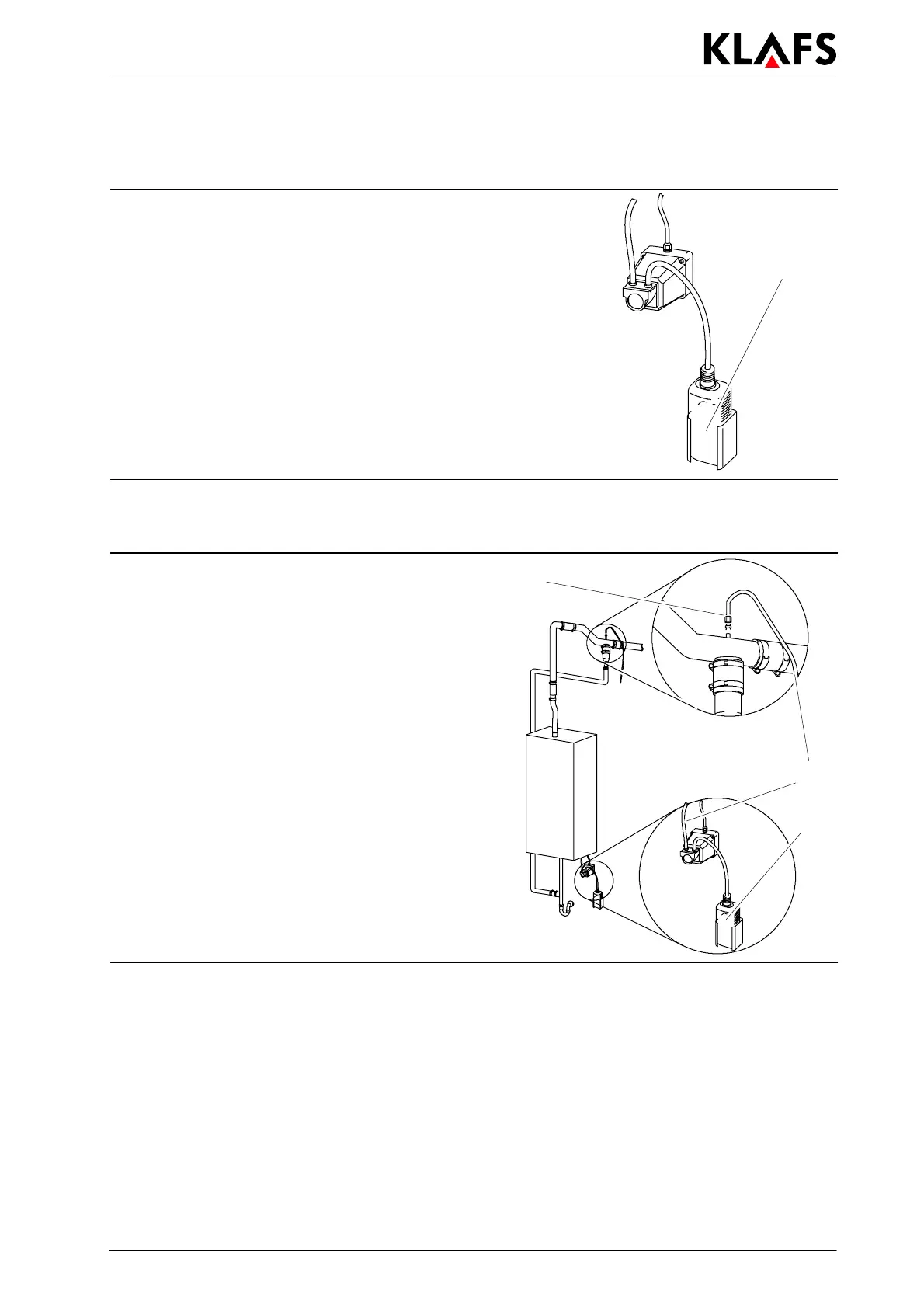

8.4. Evaporator - Changing the scent tank
. Shake the scent (1) container well before
replacing.
1. Take the hose out of the empty scent tank (1).
2. Take the empty scent tank out of the holding
fixture.
3. Screw seal cap off the new scent tank.
4. Put the new scent tank into the holding fixture.
5. Push the hose into the scent tank down to the
bottom of the tank.
1
8.5. Evaporator - Scent line to the evaporator pipe
1. Check the scent line between scent container
and scent pump (2) – exchange if defective.
2. Check the scent line between scent pump and
T-piece on the evaporator pipe (3) – exchange if
defective.
3. Check and clean the scent feed on the T-piece
to the evaporator pipe (4) – to do this unscrew
the cap nut and detach the scent supply line.
2
4
3
