4. Operating and display elements

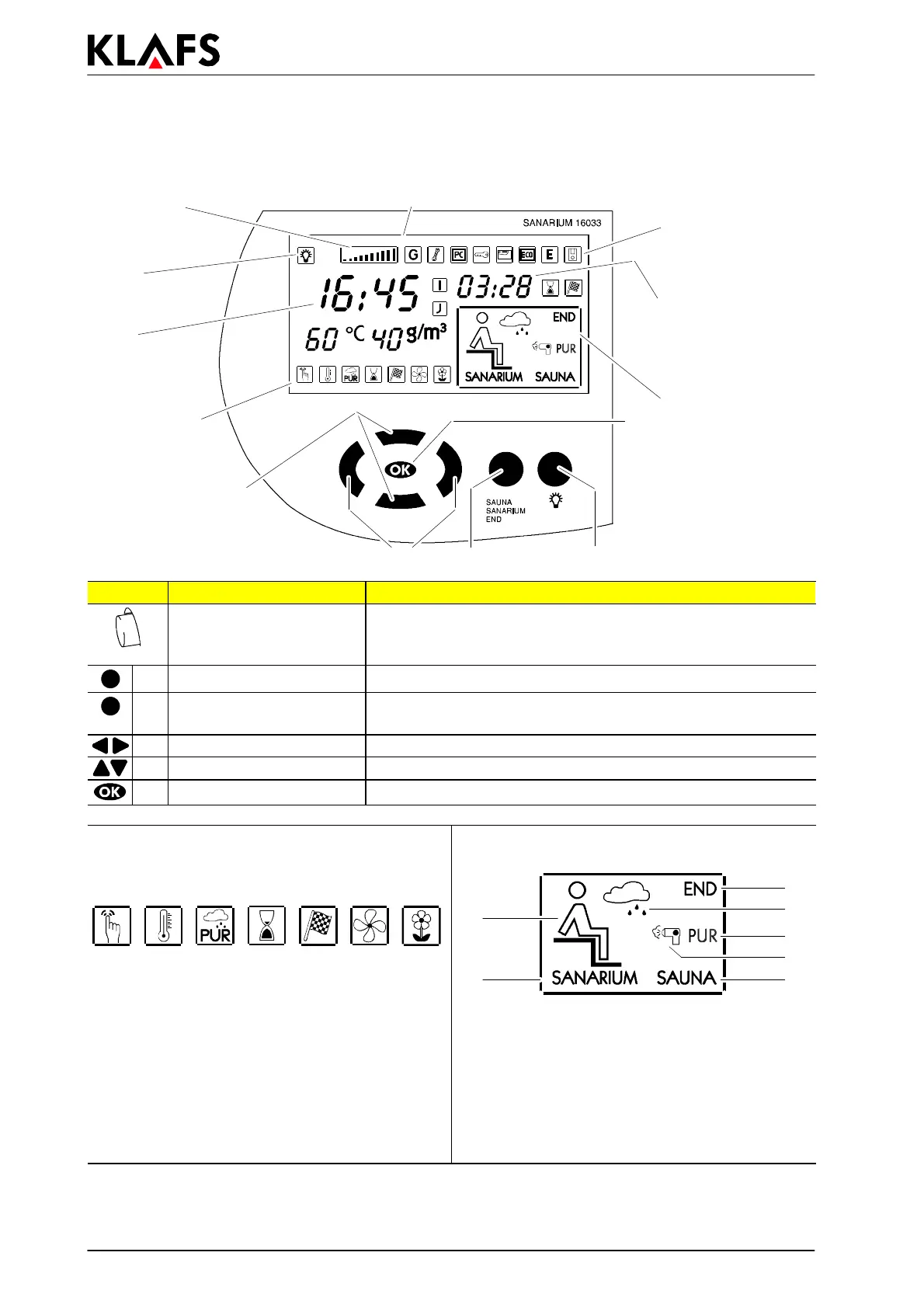

4.1. Display of Control Unit 16033
LCD display
Further symbols
and additional
options
Preselection
time/remaining
bathing time
Operating modes
Symbols for
programs and
individual
settings
Time
Light
Set value
Bar display
E
ABC
D
Button: Description: Function:
Master switch
(on left side of unit
housing)
Switches on/off the stand-by mode.
Whenthestand-bymodeison,thetimeappearsinthe
display.
A Light button Switches on/off the cabin light.
B Operatingmodebutton Selects the operating mode: sauna, SANARIUM or program
end.
C Left/Right buttons Selects the symbols for the programs or individual settings.
D Up/Down buttons Selects a program or changes configurable values.
E OK button Accepts/stores values.
Symbols for programs and individual settings
in sauna and SANARIUM:
Symbols for operating modes:
1234567
12
3
4
5
7
6
1. Programs
2. Temperature
3. Humidity (only during SANARIUM operation)
SaunaP
UR operation
4. Bathing duration
5. Preselection operation
6. Air extraction fan
7. Scent pump.
1. Sauna operation
2. SANARIUM operation
3. SANARIUM operation, (flashes in case of lack
of water)
4. Cabin ready for bathing
5. SaunaP
UR operation
6. Subsequent drying
7. Program end.
