KLS Martin marLED E15 - Page 41



Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E15E9 / E9i / E15
V V 1.0 1.0 4141
••
Open lamp casing (see section 6.6 “”,Open lamp casing (see section 6.6 “”,
page 39).page 39).

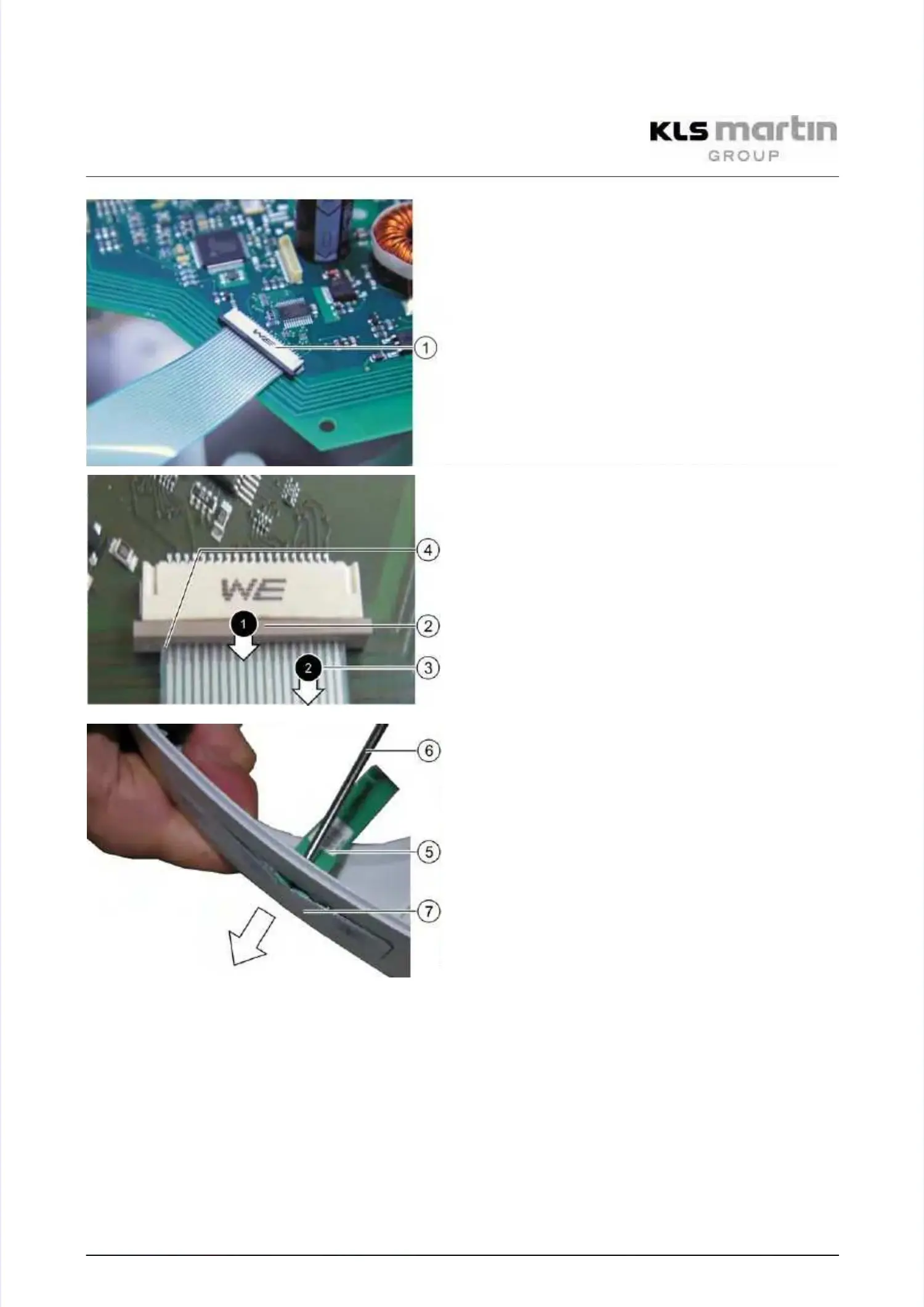

The connection (1) for the operating foil isThe connection (1) for the operating foil is
located at the upper corner of the board.located at the upper corner of the board.
Pin 1 (4) is located on the left side.Pin 1 (4) is located on the left side.
••
 Carefully pull out the latch (2).Carefully pull out the latch (2).
•• Pull the flat ribbon cable (3) out of thePull the flat ribbon cable (3) out of the
socket (1).socket (1).
In the next step the operating foil In the next step the operating foil isis
destroyed!destroyed!

••
 Press a flat screwdriver (6) through thePress a flat screwdriver (6) through the
gap (5) against the operating foil (7).gap (5) against the operating foil (7).
•• Press out the operating foil (7), remove andPress out the operating foil (7), remove and
discard it.discard it.
•• Carefully remove any residual adhesive fromCarefully remove any residual adhesive from
the casing.the casing.
••

Push the flat ribbon cable of the newPush the flat ribbon cable of the new
operating foil through the gap in the casingoperating foil through the gap in the casing
and attach the operating foil.and attach the operating foil.
