KLS Martin marLED E15 - Plug Connections on Plug Connections on Control Electronics and Light Control Electronics and Light Engine Engine



Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E9 / E9i / E15E15
44 44 V V 1.01.0
6.116.11 Plug Connections on Control Electronics and Light EnginePlug Connections on Control Electronics and Light Engine
For a better overview, the 4-pin socket housing are labeled according to the cable colorsFor a better overview, the 4-pin socket housing are labeled according to the cable colors
above.above.

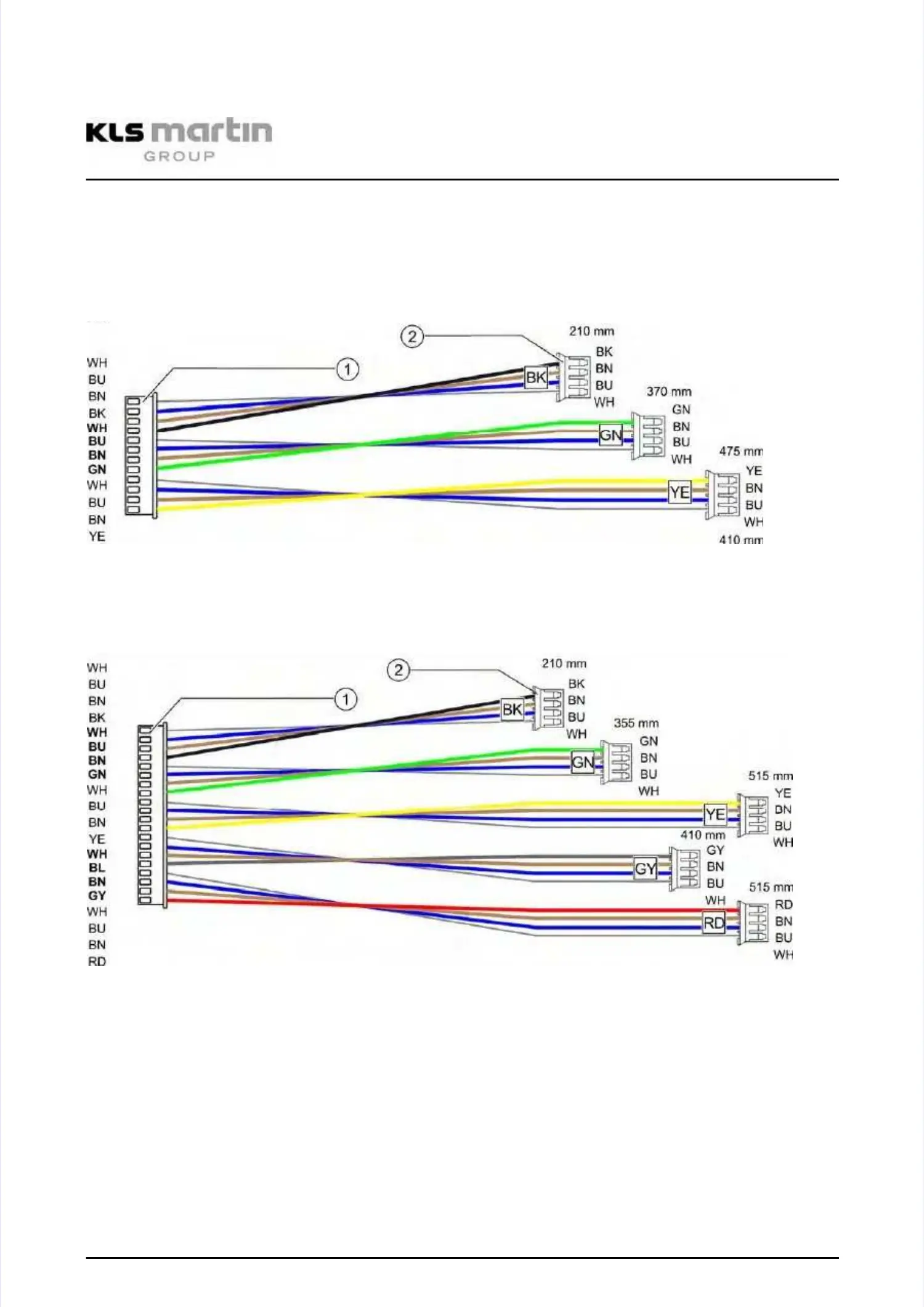

Cable harness of the Light Engine Cable harness of the Light Engine for marLEDfor marLED
®®
E9E9
1 1 XPH-12 XPH-12 socket socket housing housing 2 2 3x 3x 4-pin 4-pin socket socket housinghousing
Cable harness of the Light Engine Cable harness of the Light Engine for marLEDfor marLED
®®
E15E15
1 1 XPH-20 XPH-20 socket socket housing housing 2 2 5x 5x 4-pin 4-pin socket socket housinghousing
