Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E15E9 / E9i / E15
V V 1.0 1.0 4949
6.13.16.13.1


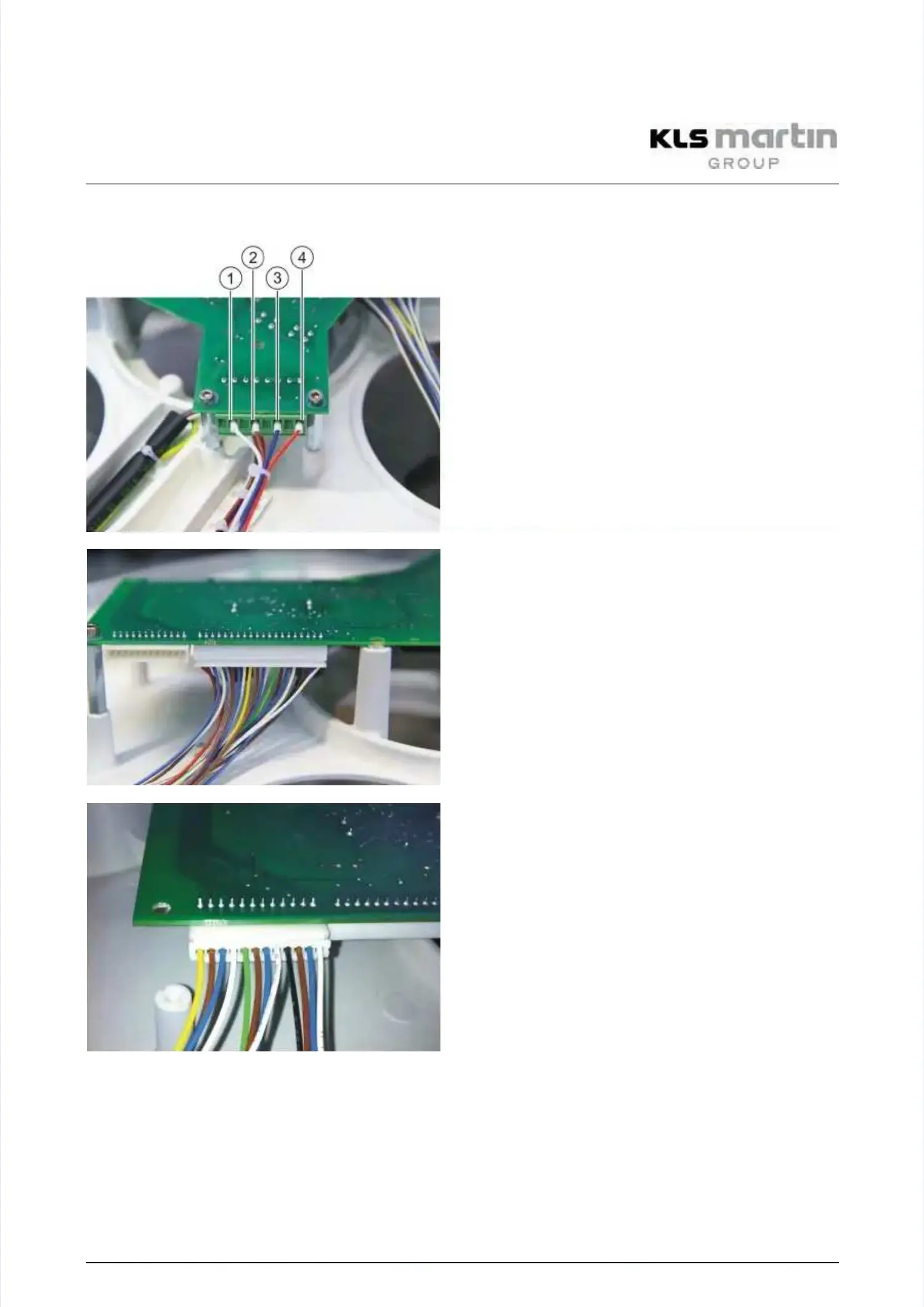

Connections for Supply Voltage and Light Connections for Supply Voltage and Light EnginesEngines
Pin Pin Color Color Signal Signal / / connectionconnection
1 1 WH WH CAN_HIGHCAN_HIGH
2 2 BN BN CAN_LOWCAN_LOW
3 3 BU BU GND, GND, CAN_GNDCAN_GND
4 4 RD RD +24–36 +24–36 VDC VDC supplysupply
(with GND 24–36 TRMS)(with GND 24–36 TRMS)
Connections clamps of the control electronicsConnections clamps of the control electronics
Connection for Light Engine of marLEDConnection for Light Engine of marLED
®®
E15E15
Connection for Light Engine of marLEDConnection for Light Engine of marLED
®®
E9E9
