KLS Martin marLED E15 - Connection for D-Sub Plug



Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E9 / E9i / E15E15
50 50 V V 1.01.0

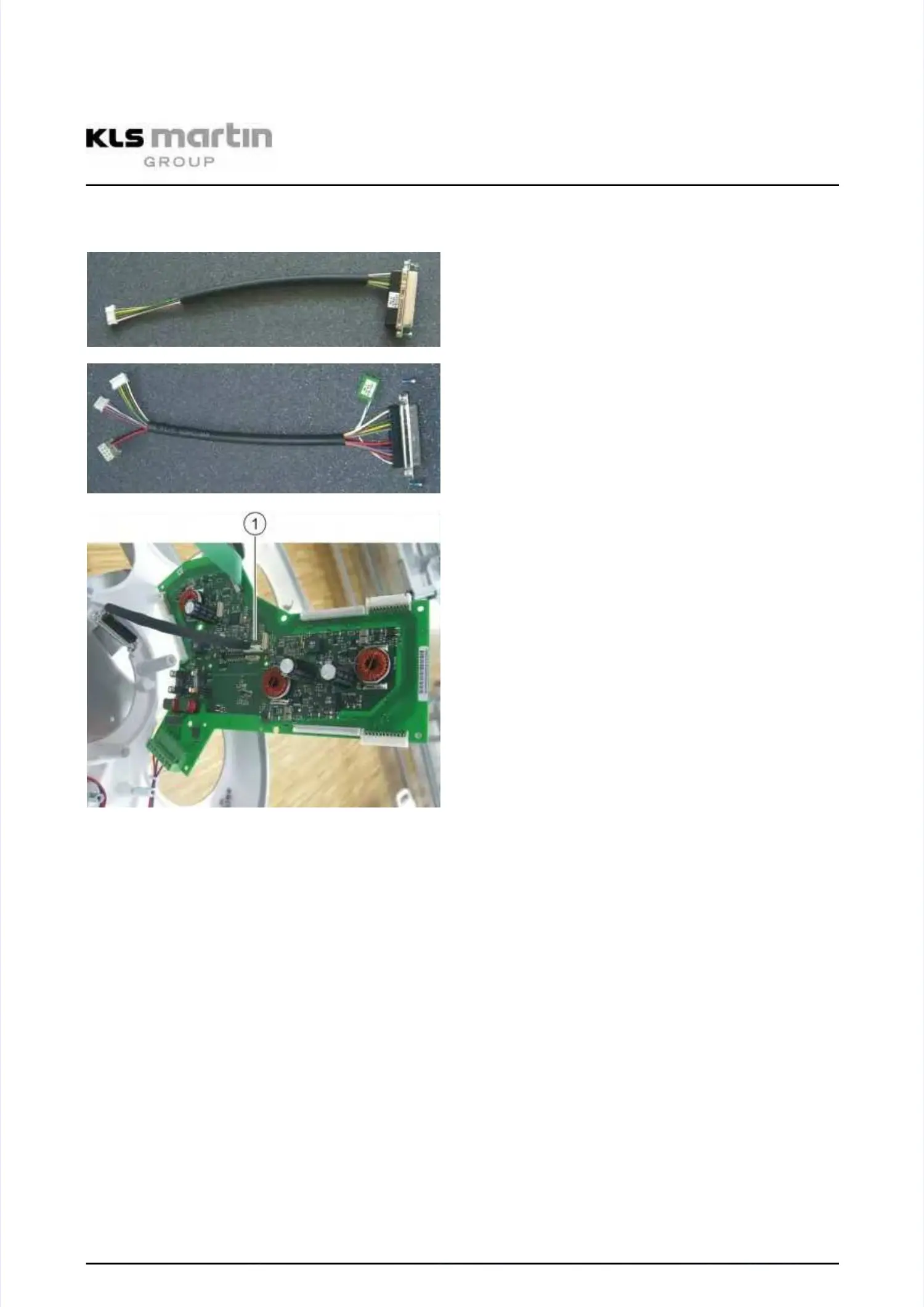

6.146.14 Connection for D-Sub PlugConnection for D-Sub Plug
Cable set Cable set “Standard”“Standard”
Cable set “Camera”Cable set “Camera”
Connection (1) on the control electronicsConnection (1) on the control electronics
