31

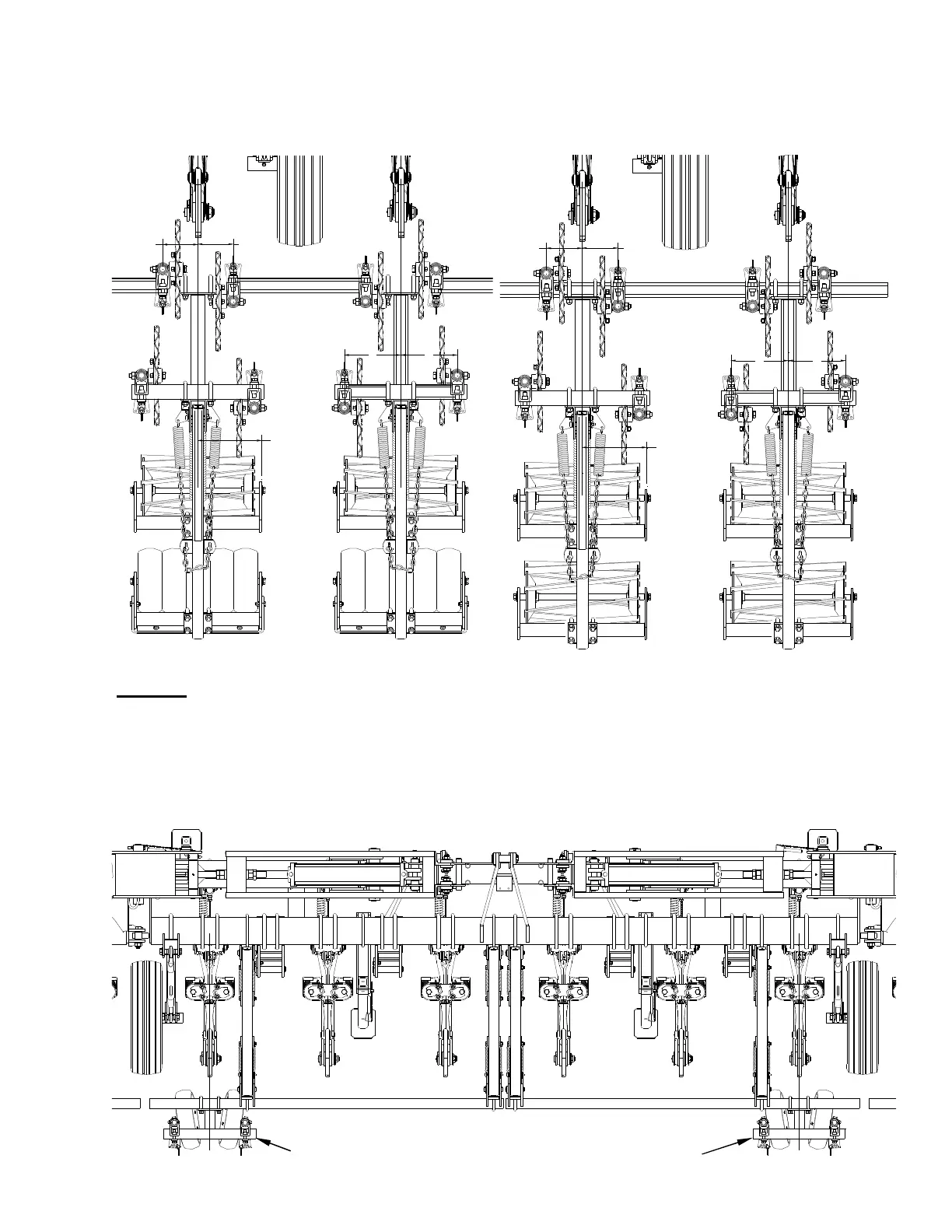

Quad Tillage w/20”Crumbler
& 20” Tire Roller
(67-QC-LC-LR)
Quad Tillage w/20”Crumbler
& 20” Crumbler
(67-QC-LC-LC)
6 1/4
6 1/4
1010
11 1/4
THE TILLAGE COULTERS ARE STAGGERED BACK
IN THE MIDDLES WHERE THE GAUGE WHEELS
ARE POSITIONED.
6 1/4
6 1/4
1010
11 1/4
THE TILLAGE COULTERS ARE STAGGERED BACK
IN THE MIDDLES WHERE THE GAUGE WHEELS
ARE POSITIONED.
NOTE: For all 12-Row Machines
An Offset Bracket (67-082-109) is mounted to the rear tool bar of the machine
when mounting Press Wheels or Concave Disc. This is done in order to give the
necessary clearance with other toolbar components. They are located on the outside
rows on each end of the center section as shown below.
(67-082-109) (67-082-109)
C
L
C
L
