Cover Crop Roller Adjustment

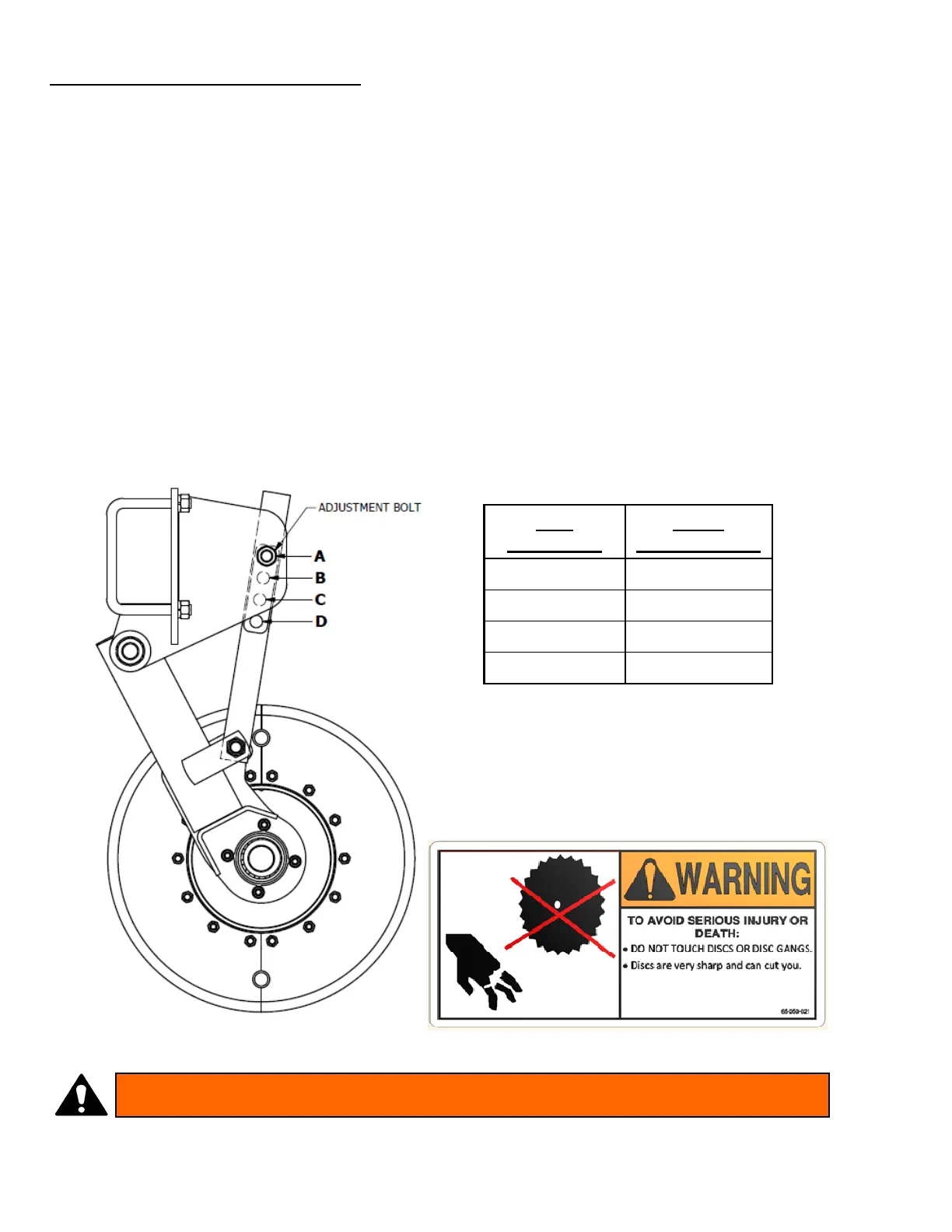

The height of the Cover Crop Roller (CCR) is determined by the position of the 7/8in
adjustment bolt. To adjust the height of the CCR, pull the shanks into the soil until the weight of the
roller is supported by the ground. Loosen and remove the roller adjustment bolt from its current
position. It may be necessary to slightly raise or lower the toolbar to relieve any pressure on the
adjustment bolt. Once the bolt is removed, use the 3 point lift to raise or lower the toolbar slowly until
the CCR is at the desired height and reinstall the adjustment bolt. Be sure to tighten the bolt to the
proper torque specification to reduce the chance of loosening. (See Bolt Torque Chart) Shank Working
Depth, as it corresponds to bolt hole location, is shown on the chart below. It should be noted that the
bottom hole, “D,” is not used for 6700 series equipment. If the CCR is bolted through hole “D” and ran
through the field, the coulters will cause damage to the shanks. The height of the Cover Crop Roller is
set to gauge the Shank Working Depth when optional Toolbar Gauge Wheels are not ordered.
IMPORTANT: When using the Cover Crop Roller, the tractor’s draft control feature should be
disengaged for optimal performance. Also, for best results, ensure the height of the CCR on stackfold
wings is matched to the CCR height on the stackfold center section.
Hole
Designation
Shank
Working Depth
A ≤ 12in
B 13in-15in
C 16in-18in
D NOT USED
WARNING
STAND CLEAR OF IMPLEMENT WHILE RAISING AND LOWERING LIFT ARMS
