45
DANGER
DO NOT STAND BETWEEN
TRACTOR AND IMPLEMENT
DURING HITCHING.

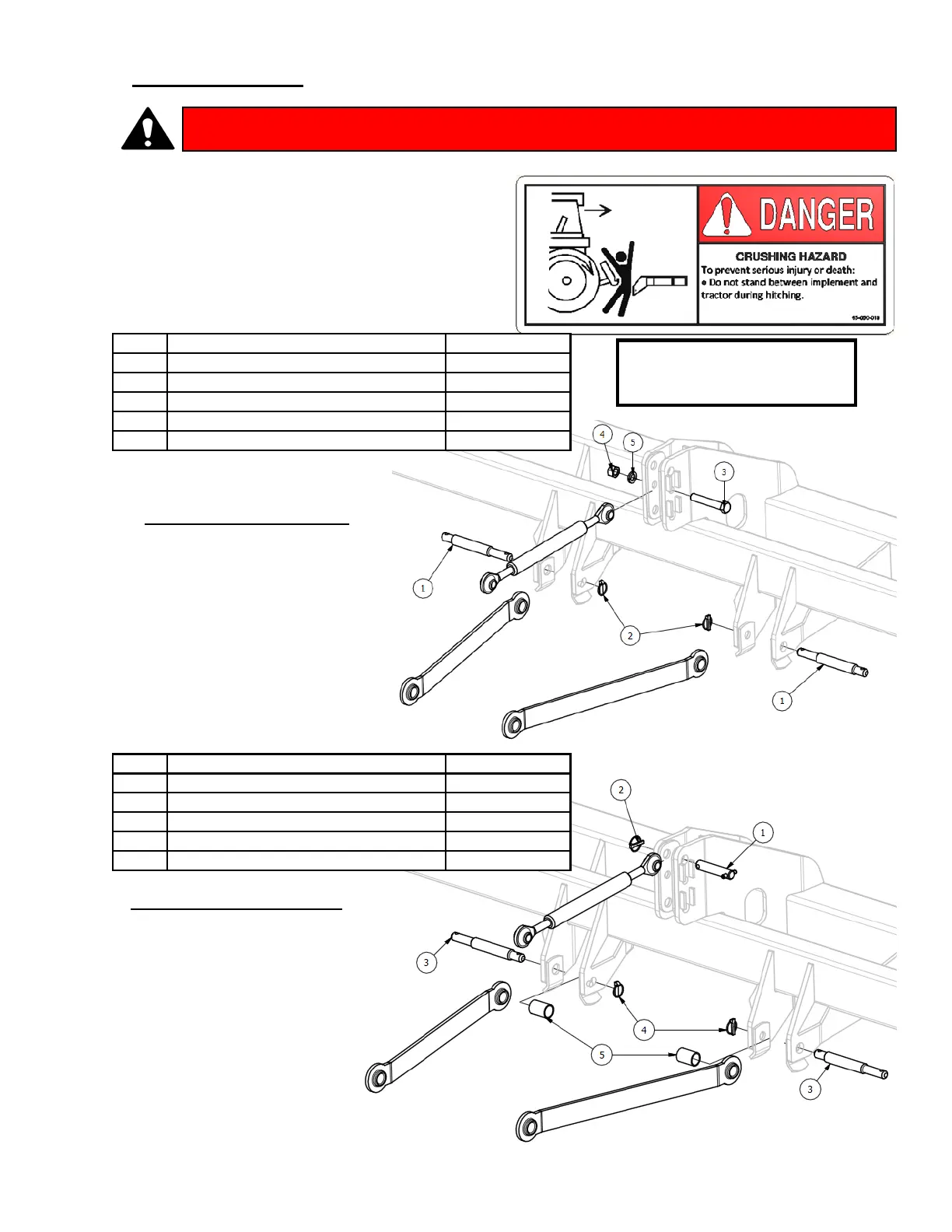

Tractor Hook-Up
CAT II 3-POINT HITCH
• Top link pins with bolt
in center mast hole
• Lower links against in-
side of lower hitch
• Lower hitch pins with
long small diameter to
inside
CAT III 3-POINT HITCH
• Top link pin in top mast
hole
• Lower links against out-
side of lower hitch
• Lower hitch pins with
long small diameter to
outside
• Bushings against inside
of lower hitches
4-ROW(36”,38”&40”)
RIGID TOOLBAR
ITEM DESCRIPTION PART NUMBER
1 STEP HITCH PIN, LONG PLT 05-026-008
2 KLIK PIN, 7/16 X 1 3/4 02-050-002
3 CAPSCREW, 1 X 6 G8 PLN 48-200450
4 HEXNUT, 1 PLT 68-010450
5 LOCKWASHER, 1 PLT 66-010450
ITEM DESCRIPTION PART NUMBER
1 PIN, MAST 06-081-018
2 KLIK PIN, 7/16 X 2 03-050-094
3 STEP HITCH PIN, LONG PLT 05-026-008
4 KLIK PIN, 7/16 X 1 3/4 02-050-002
5 SPACER, CAT III 05-024-010
