TOOLBAR GAUGE WHEEL:
The 6700 Series Rip Strip Toolbar Gauge Wheels come as standard equipment on all Front Swivel
Coulter models. When ordered as such, they should be pre-mounted to the bar when your unit arrives.
Verify the pre-mount location of all the Toolbar Gauge Wheels by using the “Overhead Layout” por-
tion of this section. When ordered as optional equipment for Cover Crop Roller models, the Gauge
Wheels will need to be mounted to the rear of the 7X7 toolbar, preferably centered between the ripper
shanks, in a location that other components are not occupying and by using the pre-installed 7/8” V-
bolt and other 7/8” hardware. In some instances, it may be necessary to move some of the existing
components to allow room for these added gauge wheels. For reference on the preferred mounting
location, see the “Overhead Layout” of the corresponding Front Swivel Coulter Model. When add-
ing or taking off and moving components, make sure all components are fully supported and secured
in place with any hoisting or lifting device. Once all components have been repositioned and the
Gauge Wheels are in place, fully tighten all loosened hardware. (Refer to the “Bolt Torque Chart” at
the first of this section for proper assembly torque).

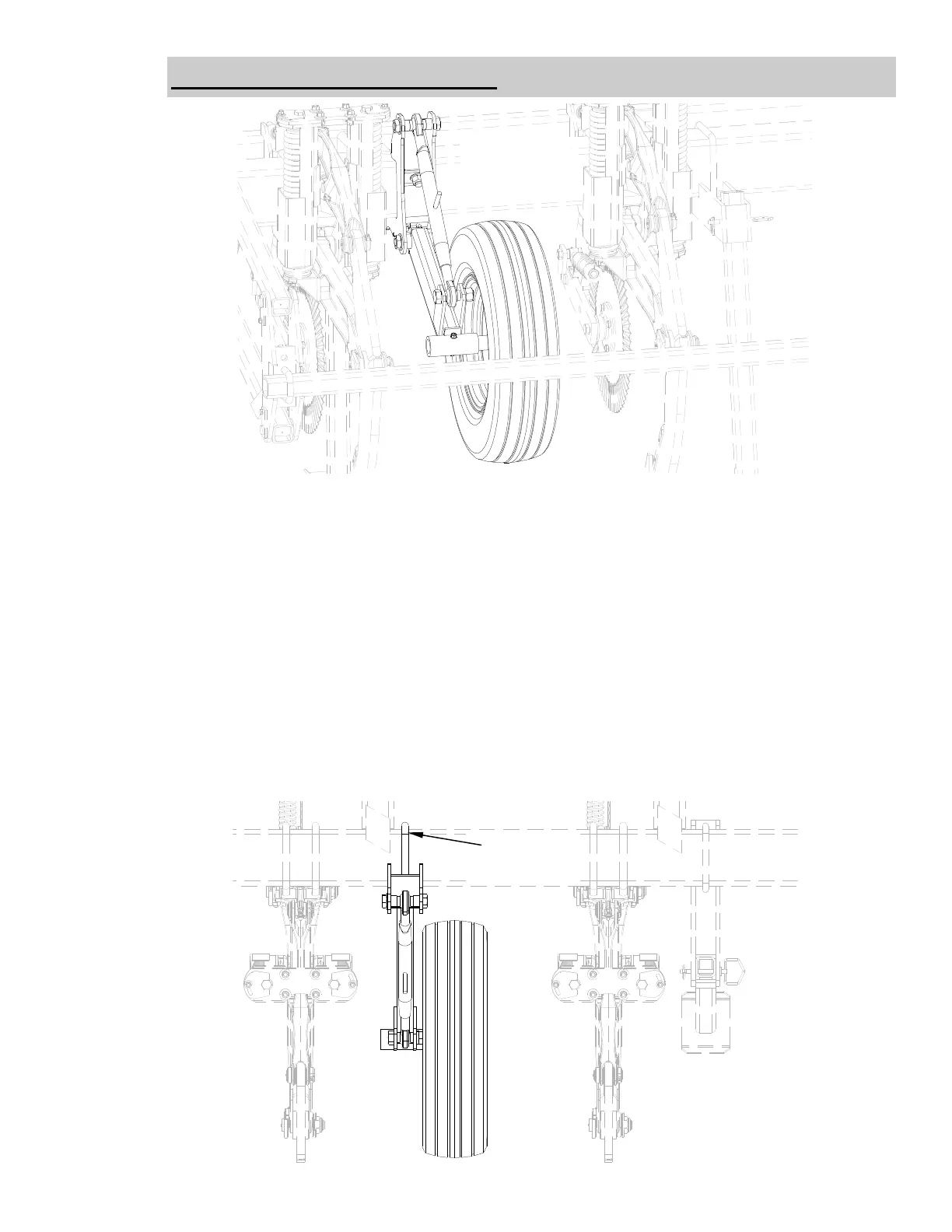

Gauge Wheels
mount to rear of
7X7 Toolbar.
7/8” V-bolt
and Hardware.
