50

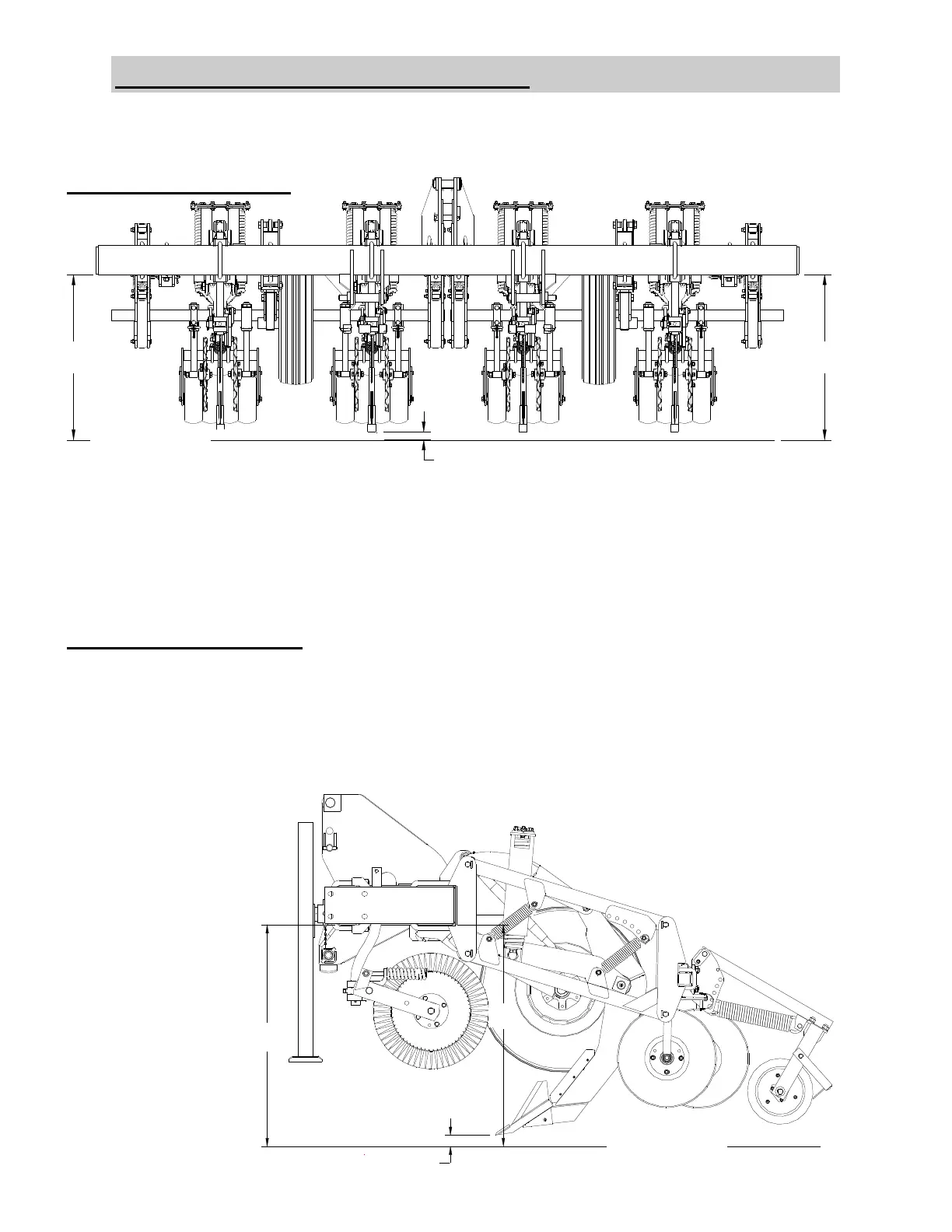

LEVELING IMPLEMENT TOOL BAR
For best results, when leveling the implement, position the tractor with implement on a level floor.
Check tractor tire pressure and inflate equally from side to side. See your tractor operator’s manual for
correct tire inflation pressure.
“A”
“B”
1” - 2”
GROUND LINE
With the implement attached to tractor, raise the unit 1 to 2 inches off the floor. Shut-off engine and
lock brakes on tractor. Measure to the bottom edge of the rear toolbar tube on each side of the
machine. Toolbar will be level when dimension “A” is the same as dimension “B” as shown in drawing
above. Level toolbar from side to side by adjusting the lift links on tractor 3-point hitch.
Before adjusting 3-point links see your tractor operator’s manual for correct adjustment procedures
and safety requirements.
Leveling Side To Side
Leveling Front To Rear
Before setting the front coulters or cover crop roller, it is necessary to level the toolbar from the front
to the rear.
For initial adjustment keep the machine raised off the ground 1 to 2 inches (being sure bottom of
shanks clear floor). Measure to the bottom of the front toolbar tube and the rear toolbar tube.
If toolbar is not level from front to rear with ground line, extend or retract the tractor top link until
toolbar is parallel ( or level) to the ground line. Toolbar will be level when dimension “C” is the same
as dimension “D”.
Further front to back
adjustment will be
required once machine
is operated in the field.
When properly leveled,
all tillage components
will enter the ground
uniformly.
1” - 2”
“C”
“D”
GROUND LINE
NOTE: All height
dimensions given in
this section assume the
toolbar is running level
to the ground.
