ROW CLEANER OPTION:
The 6700 Series Rip Strip Row Cleaner Option
attaches directly to the Front Swivel Coulter
option of the Rip Strip unit. If ordered as part
of a new unit it should come pre-installed at the
KMC factory. Inspection should be made of the
Row Cleaners to ensure that proper assembly
has been made and all hardware is tightened
before operation. (Refer to the “Bolt Torque
Chart” at the first of this section for proper
assembly torque).
If the 6700 Series Rip Strip Row Cleaner
Option was ordered as a bundle to be installed
by the customer, please review the bundle

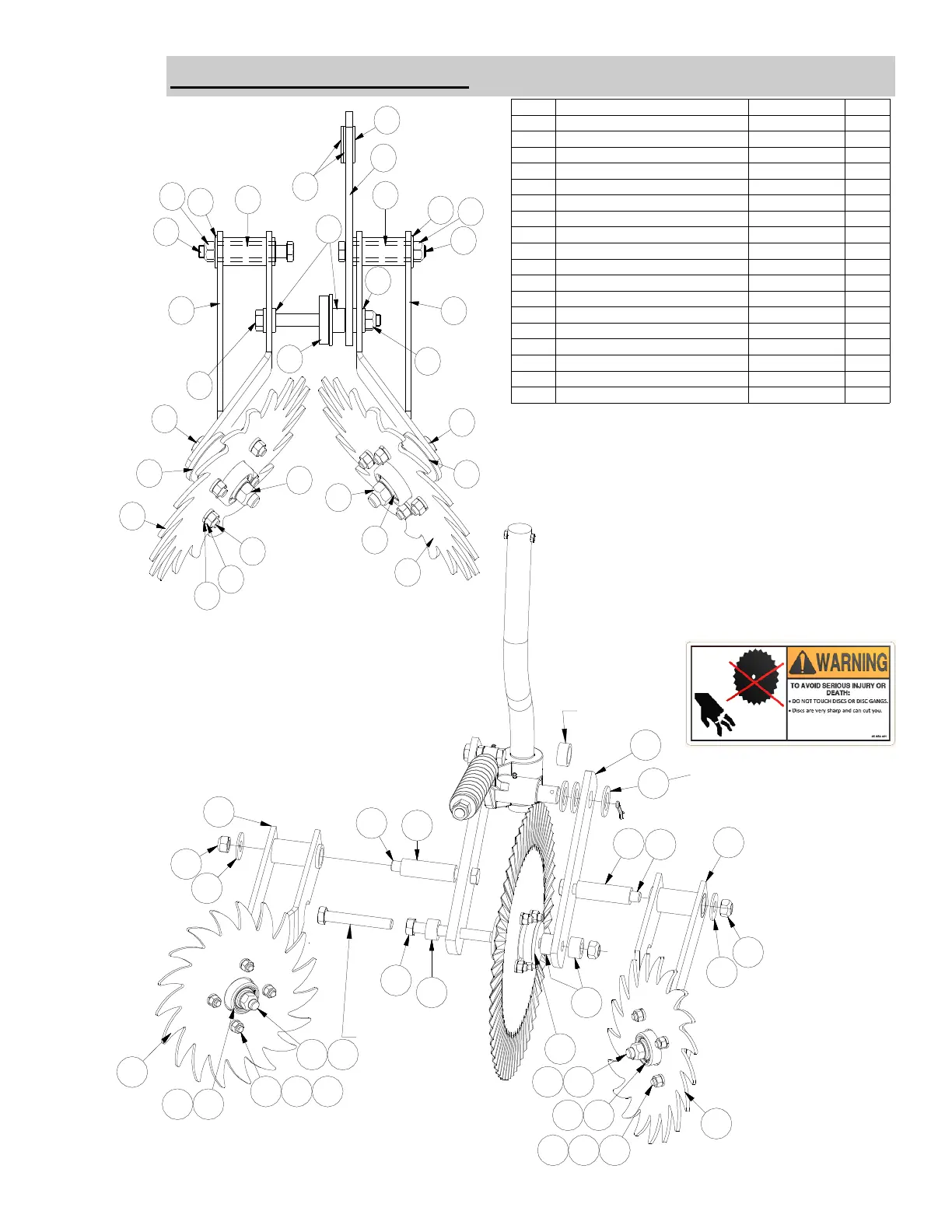

above with the side parts list. Installation
should be made easy by following the diagram
below and removing those items listed and
adding in all the components from the Row
Cleaner Option Bundle. Tighten all hardware
by referring to the Bolt Torque Chart.
QTYPART NUMBERDESCRIPTIONITEM
167-080-096ARM, ROW CLEANER LT1
1
67-080-097ARM, ROW CLEANER RT2
167-023-063ARM, ROW CLEANER RT3
216-027-168
DISC, 14" RC (19 FT)4
267-024-081BUSHING, ROW CLEANER5
367-024-082STOP TUBE, ROW CLEANER6
302-050-105WASHER, PIVOT PIN7
416-080-230COVER, BEARING8
316-081-004HUB, DISC '969
1248-090595
CAPSCREW, 1/2 X 1 1/2 NC G5 PLT
10
1266-010250LOCKWASHER, 1/2" REGULAR PLT
11
1268-010250
HEXNUT, 1/2 PLT
12
148-100080CAPSCREW, 3/4 X 8 G5 PLT13
148-100025
CAPSCREW, 3/4 X 5 1/2 NC G5 PLT
14
148-100050CAPSCREW, 3/4 X 6 NC G5 PLT15
2
48-091450CAPSCREW, 3/4 X 4 1/2 NC G5 PLT
16
262-010300
FLATWASHER, 3/4 STD PLT
17
5
72-020128LOCKNUT, 3/4 STOVER GC PLT18
