The purchase of your 6700 Series Rip Strip is a substantial investment to your farming needs.
For this reason, your 6700 Series Rip Strip should be cleaned and stored in a manner that will ensure
the life and value of your investment for years to come.
KMC recommends after each season of use to:
• Pressure wash and clean the machine thoroughly to remove all dirt and moisture
retaining materials.
• Repaint worn and scratched parts if possible.
• Grease all bearings, bushings, and pivot joints that are fitted for relube. Also, fully
grease the turnbuckle threads to prevent these areas from rusting and pitting.
• Store under a shelter in a location away from all weather elements if possible.
STORAGE

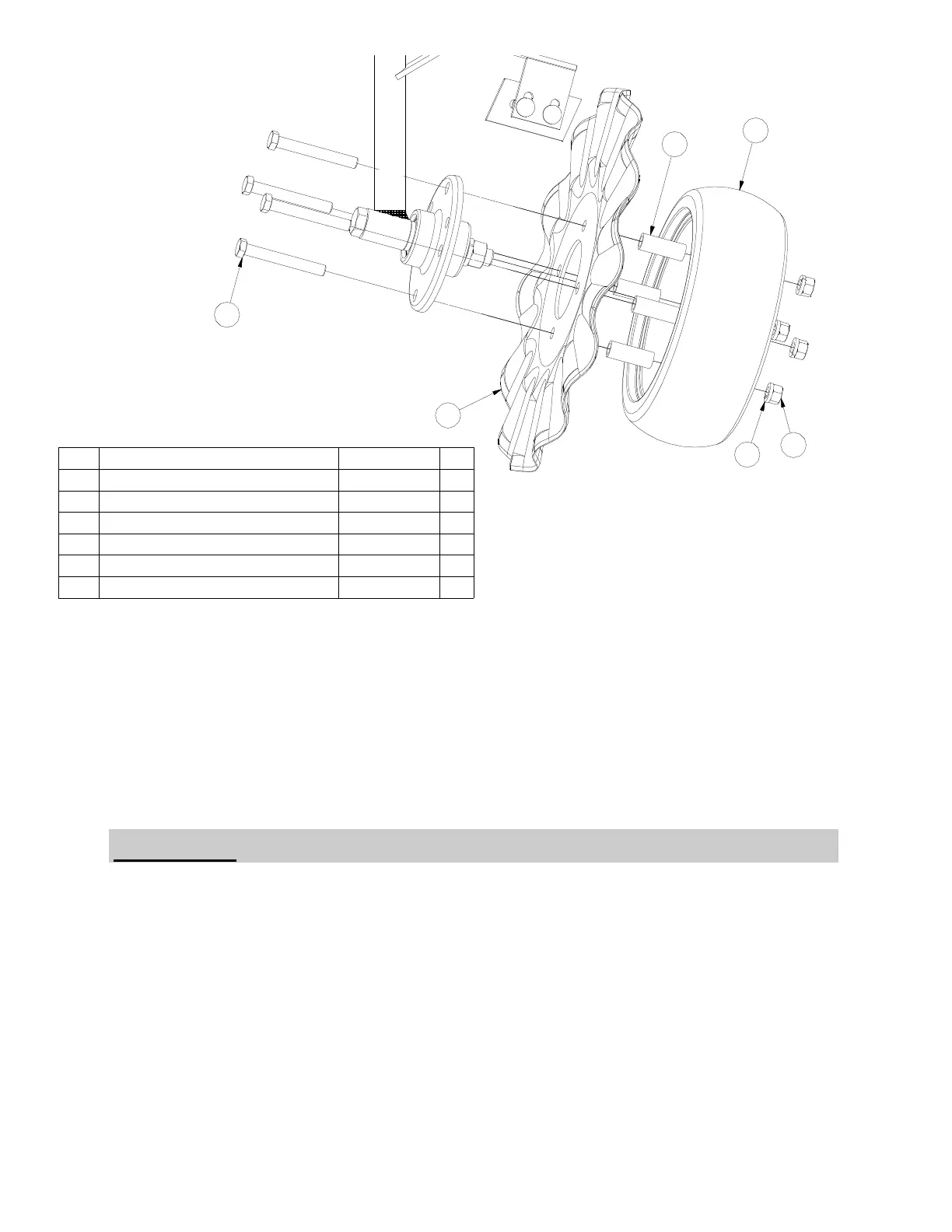

QTYPART NUMBERDESCRIPTIONITEM
167-050-003
COULTER, 18" SF TILLAGE
1
416-024-019SPACER, HUB BOLT2
4
48-090800CAPSCREW, 1/2 X 3 3/4 NC G5 PLT3
4
66-010250LOCKWASHER, 1/2" REGULAR PLT
4
4
68-010250
HEXNUT, 1/2 PLT
5
167-081-048ASSEMBLY, 4.25 X 12 WHEEL6
3
1
2
6
5
4
1. Remove 1/2 x 3-3/4 capscrews and the corresponding lockwasher and hexnut.
2. Remove worn disc from the bearing hub and wheel assembly. (may need to lightly tap
the disc with a hammer to remove) Retain hub bolt spacers between worn disc and
wheel assembly.
3. Install new disc by realigning four bolt holes in the bearing hub and then adding (4)
hub bolt spacers and the wheel assembly.
4. Reinstall 1/2 x 3-3/4 capscrews and corresponding lockwasher and hexnut. (may
need to install new hardware if existing are in poor condition) See “Torque Chart” for
proper assembly torque.
In-Row Tillage Disc
To Next Page
