The KMC 6700 Series Rip Strip unit can be equipped with a variety of tillage tools and
finishing options.

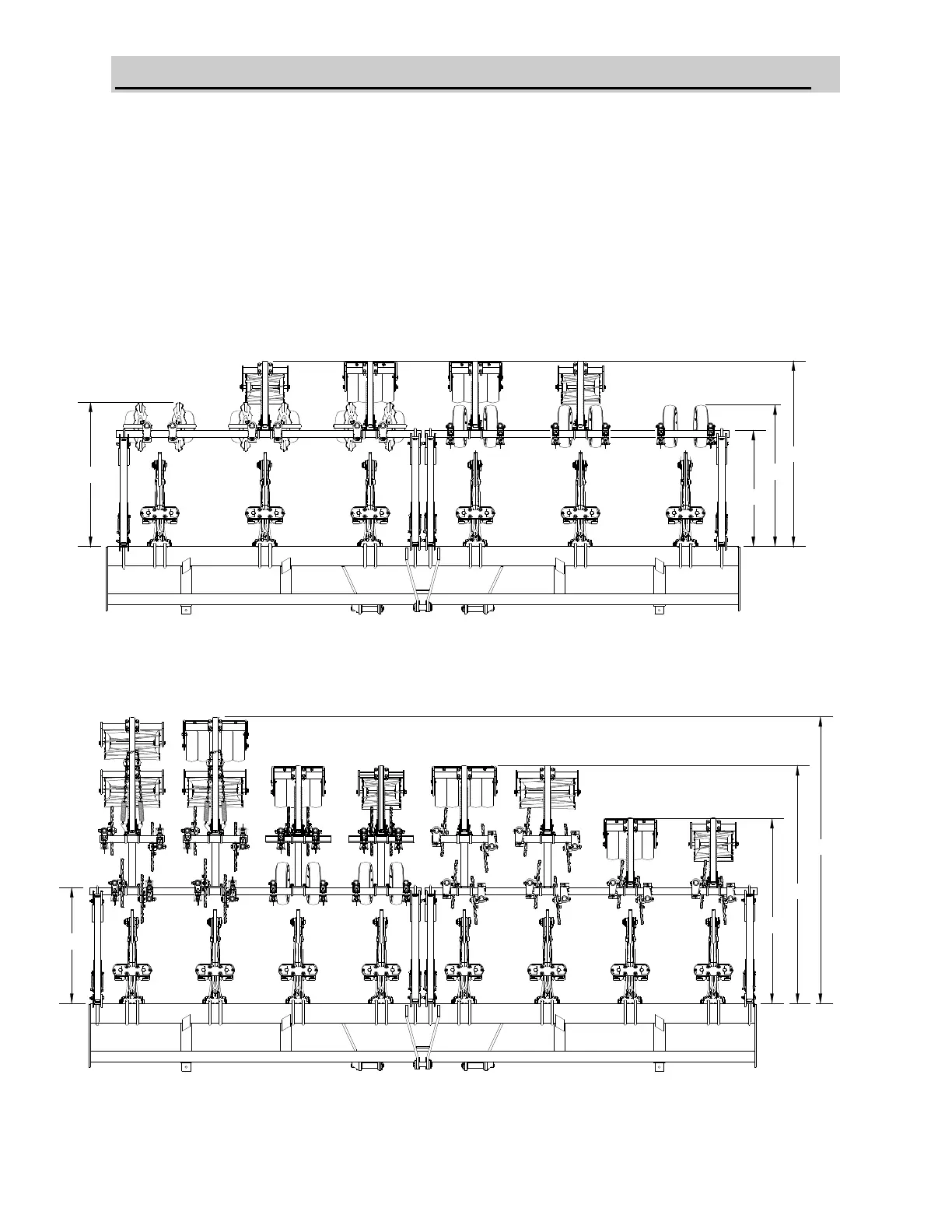

The following two diagrams show the relationship that each of these tillage tools and
finishing options have with the backside of the rear 7x7 tube on any of the KMC 6700 Series
Rip Strip toolbars. With each of these distances it can be determined, in conjunction with the
KMC Lift Assist owner’s manual, which set of Lift Assist beams or Planter Beams will be
needed to provide clearance between the Rip Strip toolbar and the Planter toolbar for the par-
ticular KMC tillage/finishing tool used.
REAR DISTANCES FOR STD. TILLAGE CONFIGURATIONS:
67
52
52
86
67
104
42
42
