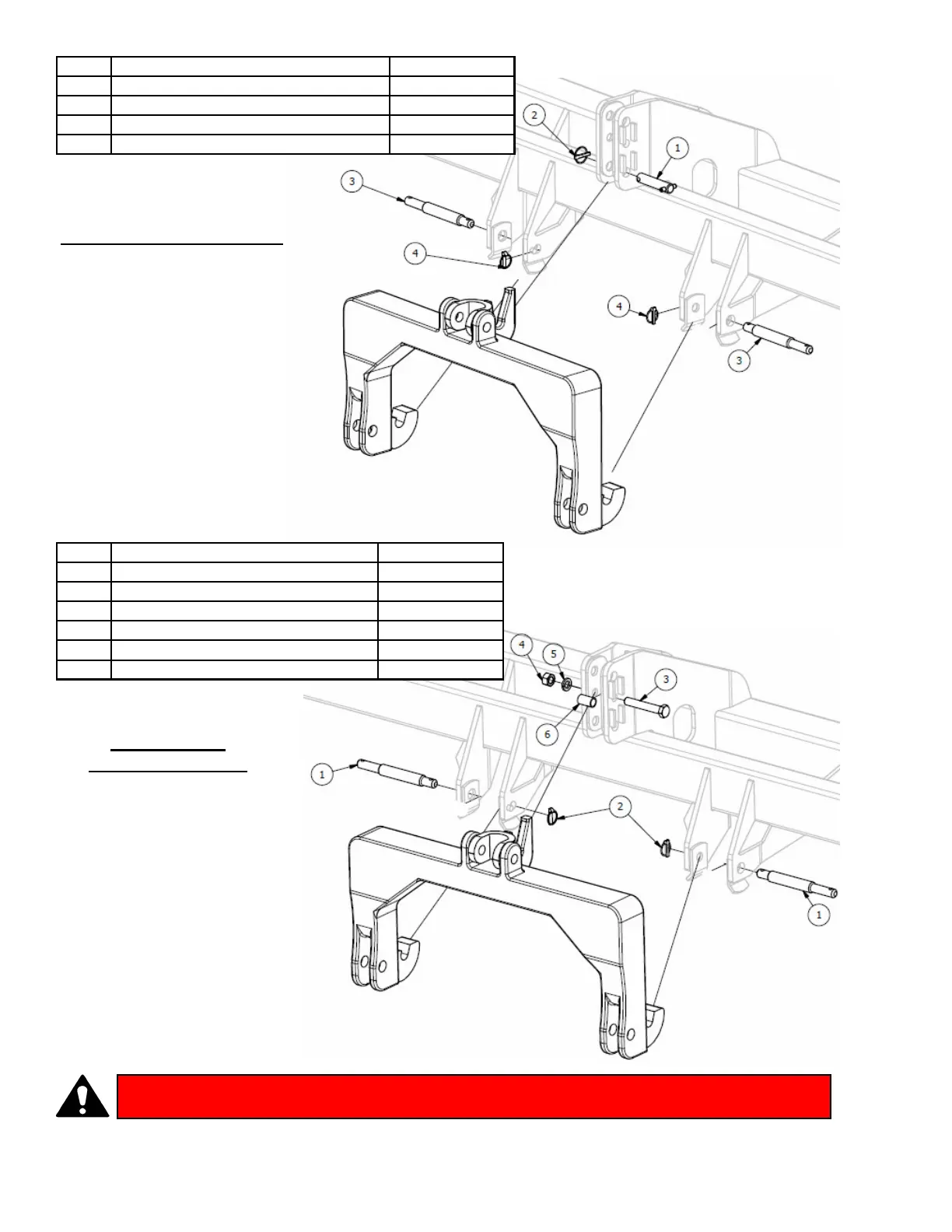

ITEM DESCRIPTION PART NUMBER
1 STEP HITCH PIN, LONG PLT 05-026-008
2 KLIK PIN, 7/16 X 1 3/4 02-050-002
3 CAPSCREW, 1 X 6 G8 PLN 48-200450
4 HEXNUT, 1 PLT 68-010450
5 LOCKWASHER, 1 PLT 66-010450
6 8 X 10 SPACER (SHORT) 02-024-004
DANGER
DO NOT STAND BETWEEN TRACTOR AND IMPLEMENT DURING HITCHING.
ITEM DESCRIPTION PART NUMBER
1 PIN, MAST 06-081-018
2 KLIK PIN, 7/16 X 2 03-050-094
3 STEP HITCH PIN, LONG PLT 05-026-008
4 KLIK PIN, 7/16 X 1 3/4 02-050-002
CAT II QUICK COUPLER
• QC hooks pin in lower
mast hole
• QC against inside of
lower hitches
• Lower hitch pins with
long small diameter to
outside
CAT III / IIIN
QUICK COUPLER
• QC hooks bolt with
spacer in center mast
hole
• QC against outside of
lower hitches
• NQC against inside of
lower hitches
• Lower hitch pins with
long small diameter to
outside
