Selecting plate configuration (continued)
[6] Select a holder, then click Add.
The holder moves from the list of available holders on the left to the list of selected holders on the right.
[7] Click Apply on the bottom of the Setup tab to save and apply your selection.
[8] Perform steps 3–6 to configure intraoral, extraoral, or both image types as you wish them to be associated with
the particular room.
[9] Click OK to return to the Main Screen.
Fine Tuning the CR7400
All Kodak CR 7400 systems pass calibration and tuning procedures before leaving the factory. Perform the following
procedures in the clinic after installation to verify unit calibration.
Items Required
• System: Kodak dental imaging software, version 6.6 or later, and Kodak CR7400 digital radiography system
user interface software, version 2.1 or later.
• Extraoral cassette with Kodak plate
• Intraoral holder for size 0-2 plate
• Intraoral plate size #2
• Intraoral tuning tool: square AL plate, 6-mm thick; part number SK-14009, SPBD681, SKU-CR140097, or
CAT #1817469
• Panoramic tuning tool: square AL plate, 15-mm thick; part number SK-000005, SKU000005, or SPCX050.
Unit Setup
[1] In the Acquisition window, click .
[2] Select Technician Settings, type 1331, and click Login.
[3] Click the Setup tab, and in the Diagnostic section check Load image viewer after scan.
[4] Click Apply, and click OK.
Note
After you tune the unit, repeat these steps and uncheck Load image viewer after scan.

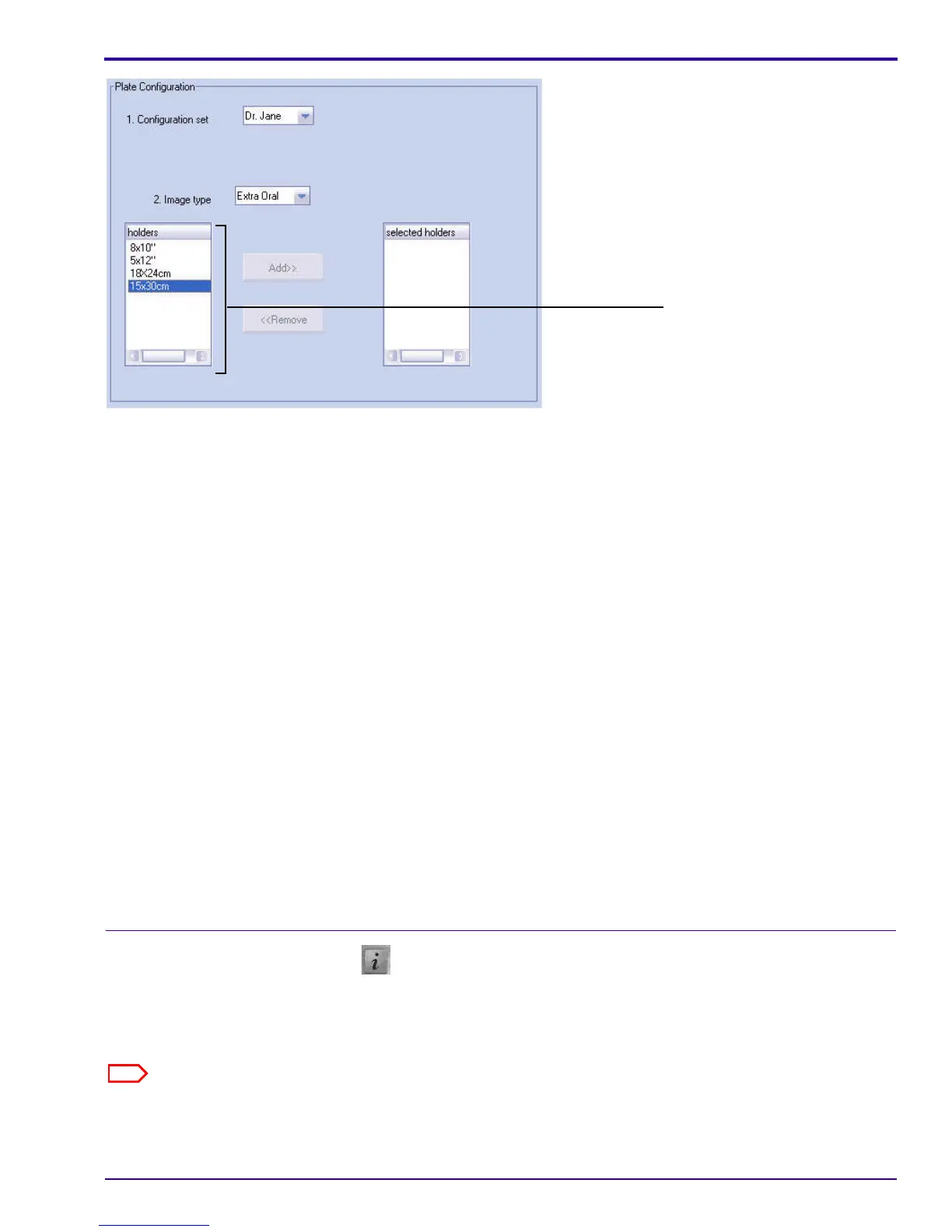

Available holders
