TP-6844 1/13 Section 3 Controller 29

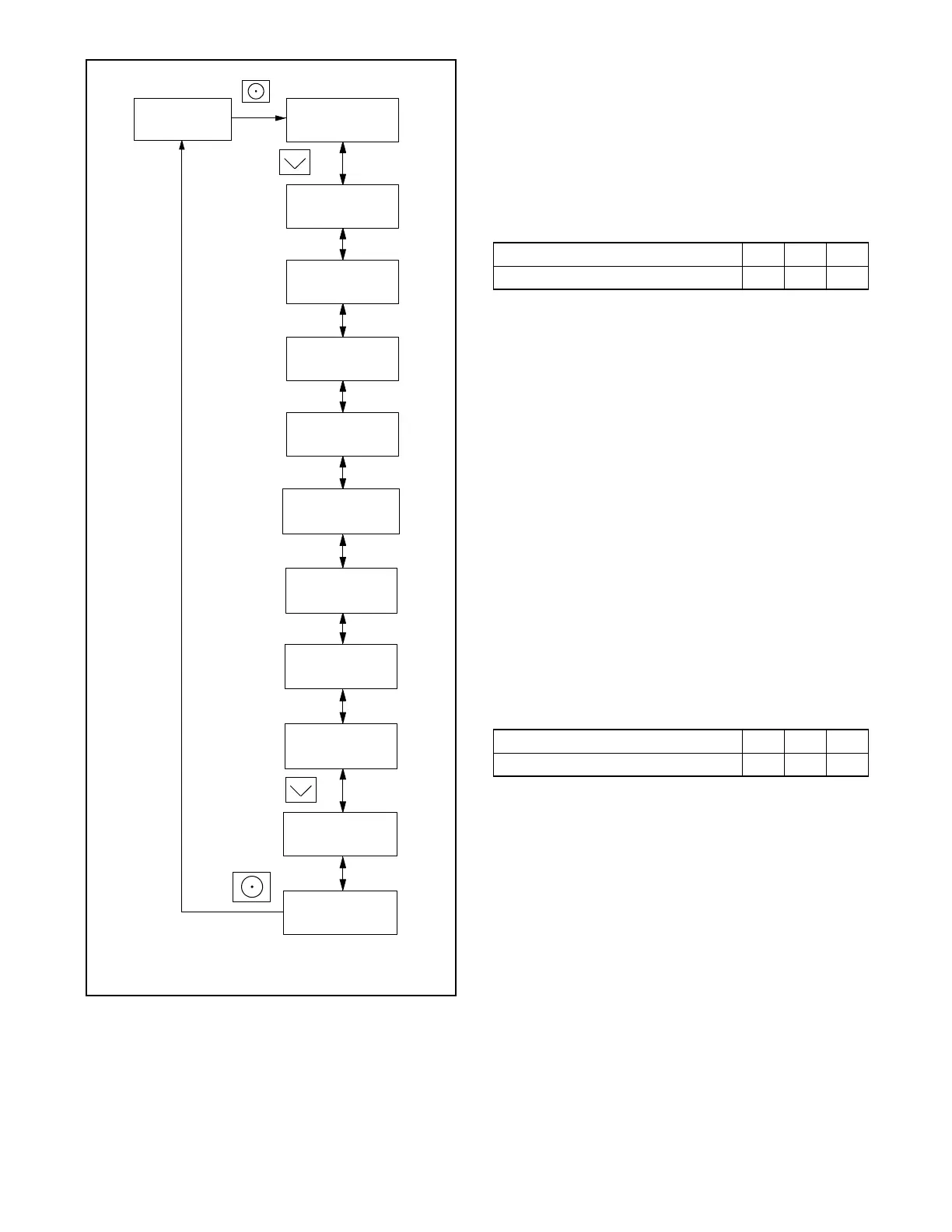

Figure 3-4
Figure 3-4 Genset System Menu
System Voltage: The system voltage is the output
voltage of the generator set. Default values are shown
in Figure 3-5. The system voltage is set to the
required output voltage to properly support the load
and charge the battery. Do not confuse this value with
the voltage designation of the battery stack. For
example, four 12V batteries in series results in a 48V
battery stack, but the output voltage needed to charge
the battery stack is 54V.
Figure 3-5
Figure 3-5 System Voltage Default Settings
Refer to the battery manufacturer’s documentation for
the recommended charging voltage. If the system
voltage needs to be changed, see the Operation
Manual for instructions to change settings.
Note: Setting the system voltage to a higher value
than the factory default setting will decrease the
power output of the generator set.
A 6VSG set at the system voltage shown in Figure 3-5
will have an output of 6 kW. If the system voltage is
set to a higher value, the output current decreases.
The available power output also decreases below 6
kW due to the limits on the engine speed. The graphs
in Figure 3-7 illustrate the effect of changing the
system voltage.
Auto Start Volt: The 6VSG will automatically start
when the battery bank voltage has reached or fallen
below this value for 180 seconds (3 minutes). Default
settings are shown in Figure 3-6.
Figure 3-6
Figure 3-6 Auto Start Voltage
Note: The 3-minute (180-second) time delay can be
changed using a personal computer (laptop)
and Kohler
®
SiteTech
™
software. See Figure
3-9 for SiteTech parameters.
tp6804
System Voltage:
54.0 V
50 V
40 %
100 %
Genset ---->
System
Auto Stop Load:
Pct. Load Limit:
Natural Gas
Fuel Type:
Auto Start Volt:
Meas System:
<---- Return
Next Exercise:
01:00p 02Dec2012
Exercise Freq:
Weekly
English
Exercise Mode:
Loaded Full Sp
Contrast:
50
* If the exerciser has not been set,
No Exercise Sch will be displayed.
*
Nominal Voltage 24V 36V 48V
Default System Voltage, VDC 27 40.5 54
Nominal Voltage 24V 36V 48V
Default Auto Start Voltage, VDC 25 37.5 50
