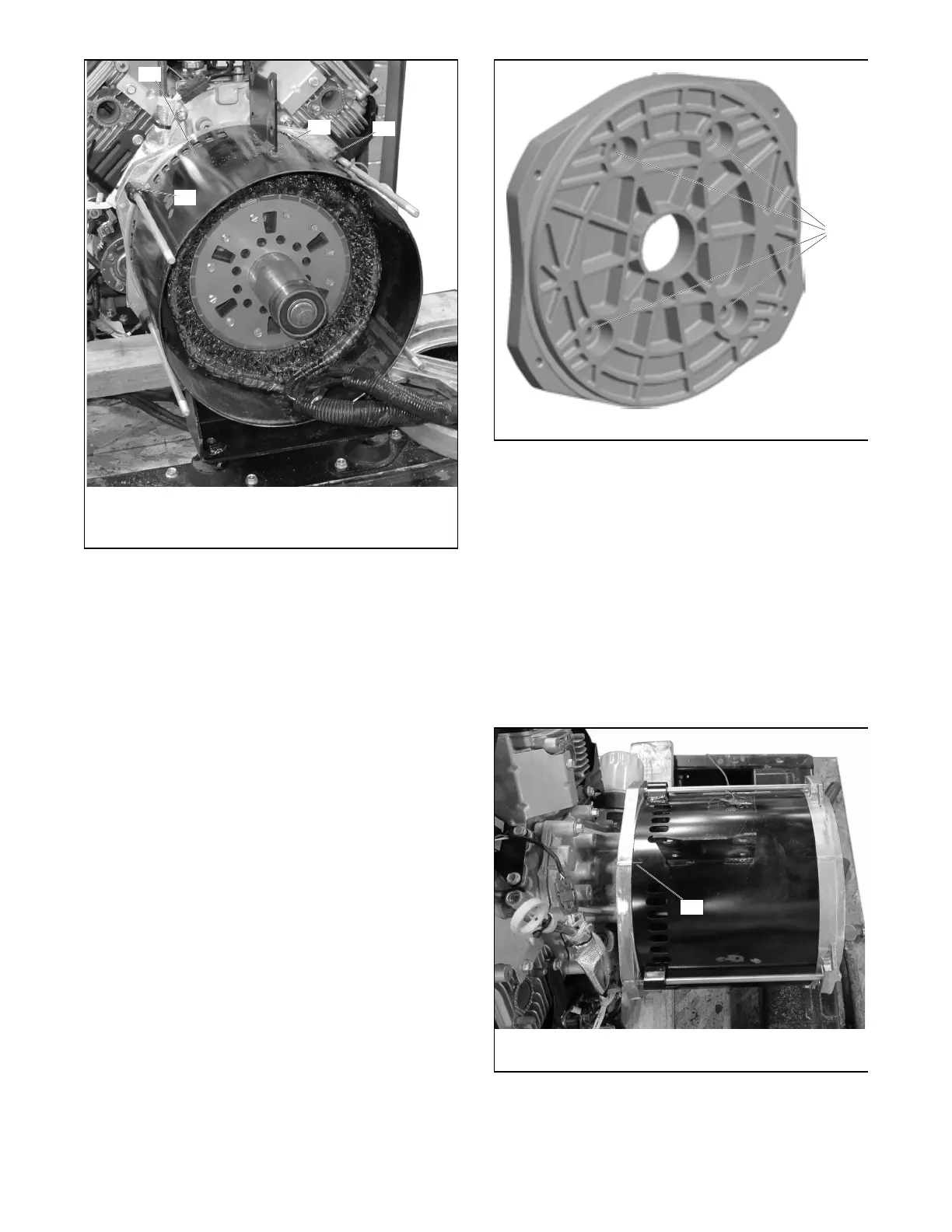

TP-6844 1/13 Section 6 Disassembly/Reassembly 89
Figure 6-10
Figure 6-10 Removing Stator
6. The rotor can be removed two different ways:
Method 1:
a. Loosen but do not remove the rotor thrubolt.
Hold the rotor with a strap wrench if needed.
b. Using a soft faced hammer strike the rotor
shaft. Rotate the rotor and strike it on
alternate sides until it can be rocked back and
forth. Do not strike the rotor anywhere but on
the shaft area.
Method 2:
a. Remove the rotor thrubolt. Hold the rotor with
a strap wrench if needed.
b. Thread a slide hammer into the threads of the
rotor shaft and use the slide hammer to
remove the rotor.
7. Remove the four adapter mounting bolts to
remove the adapter if required.
Figure 6-11
Figure 6-11 Adapter Plate
6.3 Assembly
Assembly is done in reverse order of disassembly,
except as noted.
1. Install the adapter plate to the engine and tighten
bolts to 40 Nm (28 ft. lb.).
2. Install the rotor and tighten the rotor thrubolt to
85 Nm (63 ft. lb.).
3. Install the stator, making sure the alignment
marks on the stator and the adapter plate line up.
Figure 6-12
Figure 6-12 Installing Stator
4. Install end cap and tighten end cap bolts to
14.9 Nm (11 ft. lb.).
1
KPS_127
3
3
2
1. Prying area
2. Top bracket
3. Stator guides
1
KPS_135
1. Adapter mounting bolts
1
KPS_129
1. Alignment marks
