88 Section 6 Disassembly/Reassembly TP-6844 1/13
Generator Disassembly
1. Remove the two bolts from the center of the
rubber isolators.

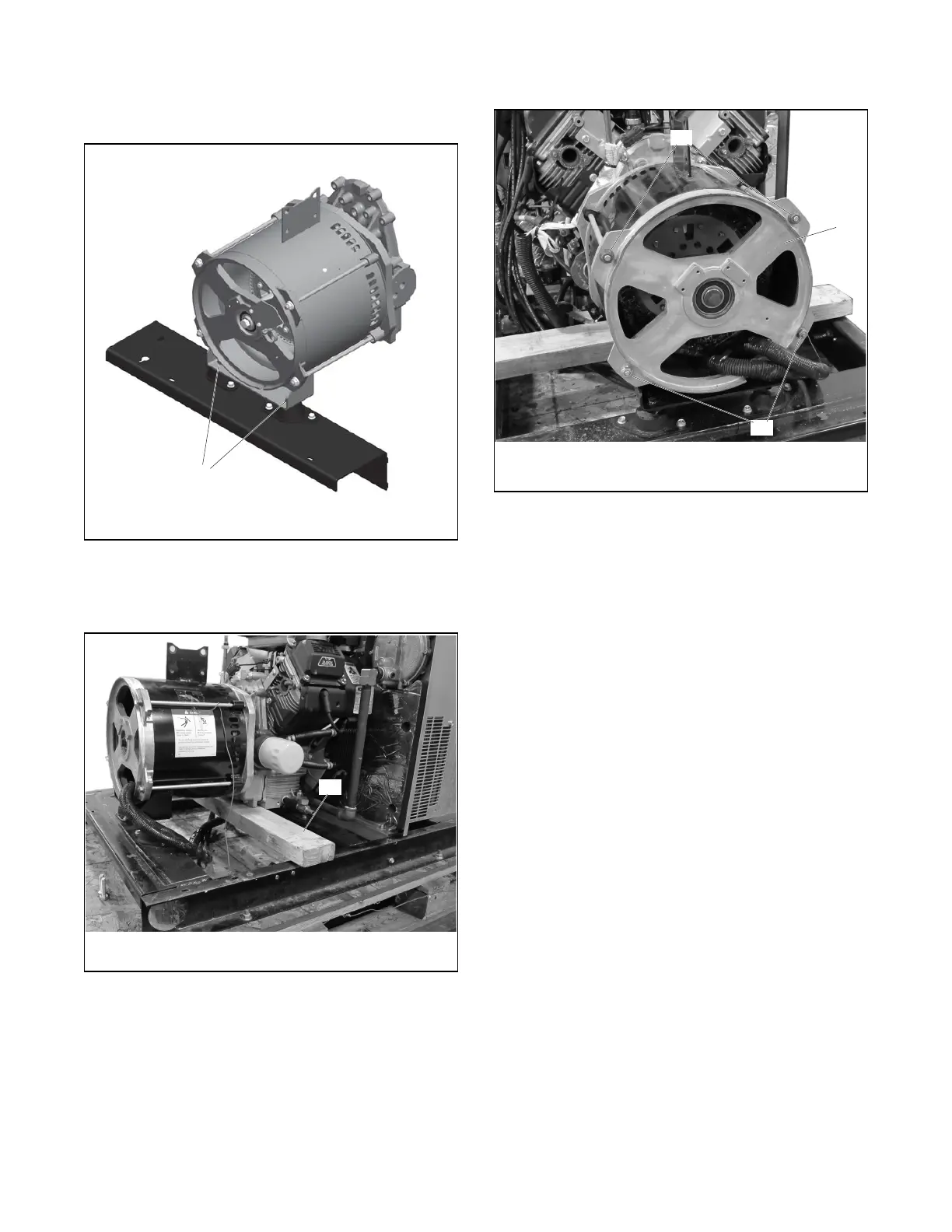

Figure 6-7
Figure 6-7 Removing Mounting Bolts
2. Lift up on the back of the alternator and place a
wood support under the engine.
Figure 6-8
Figure 6-8 Wood Support for Engine
3. Remove the four nuts holding the end cap on the
stator and remove the end cap.
Figure 6-9
Figure 6-9 Removing End Cap
4. Pry lightly between the adapter and the stator to
separate them slightly and tap on the top bracket
on stator.
5. Slide the stator away from the rotor using the
guides on the stator.
1. End cap nuts
2. End cap
