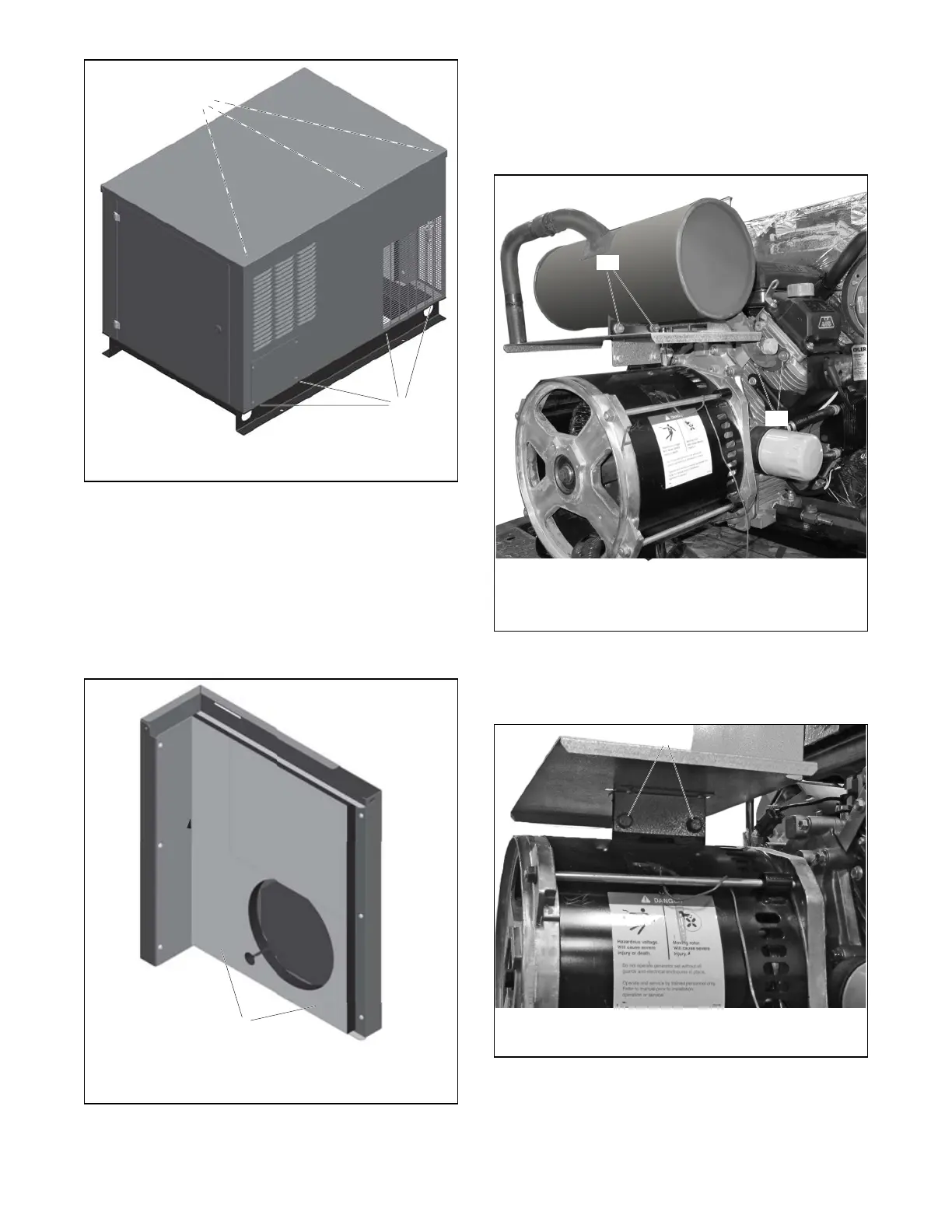

Figure 6-3
Figure 6-3 Left-Side Panel
6. Remove rear panel:
Note: The two bottom screw holes are slotted and
only need to be loosened.
a. Loosen the two bottom screws.
b. From the rear, slide the panel to the left side
and lift up and off.
Figure 6-4
Figure 6-4 Remove Rear Panel
Remove the Muffler
1. Remove the two bolts and nuts from the muffler
bracket.
2. Remove the four nuts from the exhaust flanges.
Figure 6-5
Figure 6-5 Removing Muffler
3. Remove the two bolts and nuts holding the heat
shield to the alternator.
Figure 6-6
Figure 6-6 Removing Heat Shield
2
1
KPS_121
1. Four bottom screws
2. Three top screws
1
KPS_122
1. Two bottom screws
1
2
KPS_123
1. Two muffler bracket bolts and nuts
2. Four exhaust flange nuts
1
KPS_124
1. Two heat shield bolts and nuts
