86 Section 6 Disassembly/Reassembly TP-6844 1/13

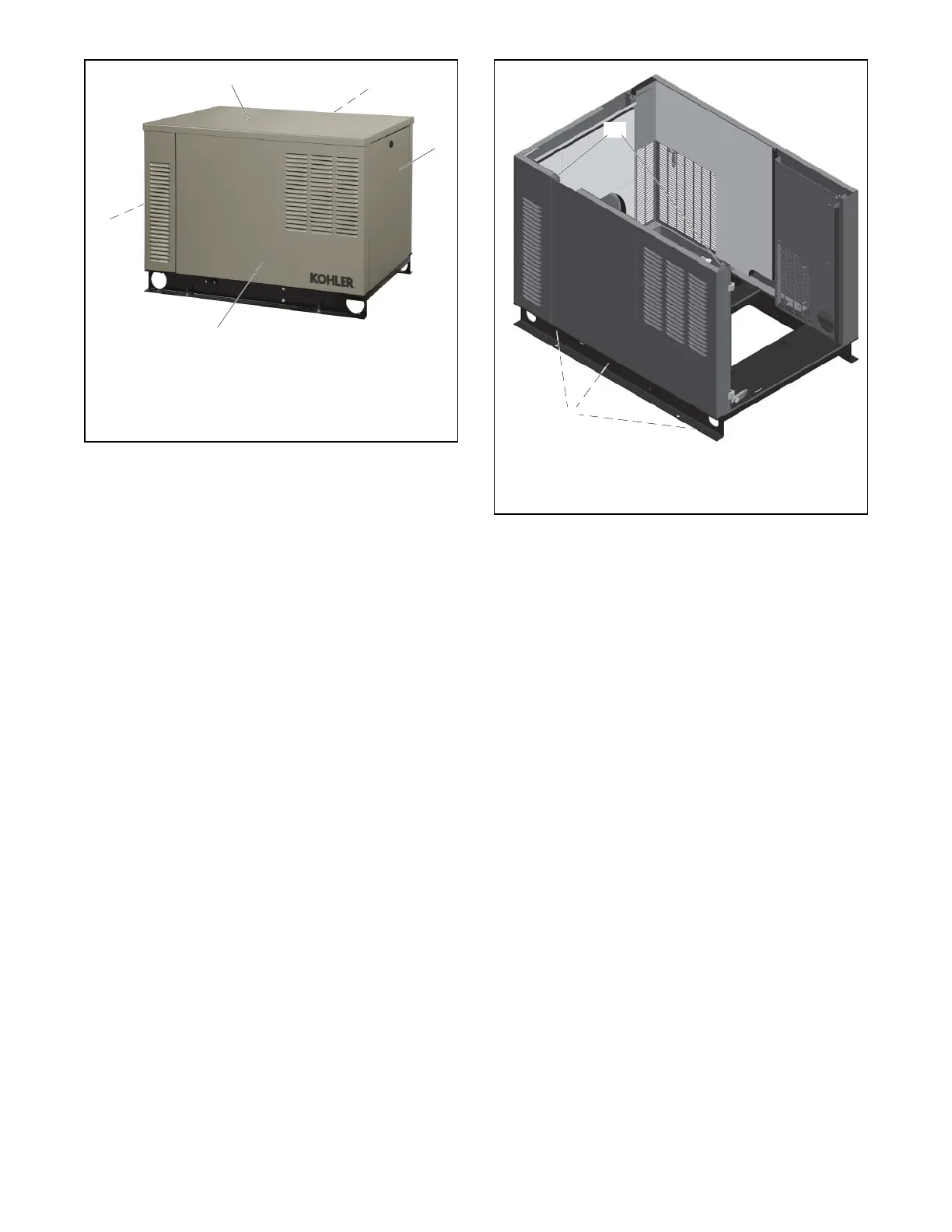

Figure 6-1
Figure 6-1 Enclosure
4. Remove the right-side panel:
Note: The three bottom screw holes are slotted and
only need to be loosened.
a. Loosen the bottom screws. See Figure 6-2.
b. Remove the top two screws.
c. Slide the right-side panel to the front and lift up
and off.
Figure 6-2
Figure 6-2 Right-Side Panel
5. Remove the left-side panel:
Note: The four bottom screw holes are slotted and
only need to be loosened.
a. Loosen the four bottom screws.
b. Remove the top three screws.
c. Slide the left-side panel to the front and lift it up
and off.
1
3
2
4
5
KPS_095
1. Roof
2. Left-side panel
3. Front service door
4. Right-side panel
5. Rear panel (exhaust end)
2
1
KPS_120
1. Three bottom screws
2. Two top screws
