Kohler Industrial Generator Set - Overview and Engine Metering

TP-6694 7/1852 Section 2 Operation
2.7.2 Overview
Displays basic and commonly sought after information
about the generator set. This information scrolls
automatically after about 5 minutes of no user input
(pushbutton/rotary selector dial or button activity).
To change from auto scrolling to fixed display, press the
rotary dial and the main menu will appear. Press the
rotary dial again to select the first menu item Overview.
Turn the rotary dial to select the desired fixed view.
Note: Some displays are engine dependent; refer to the
Appendix, Controller Displays from the Engine
ECM.

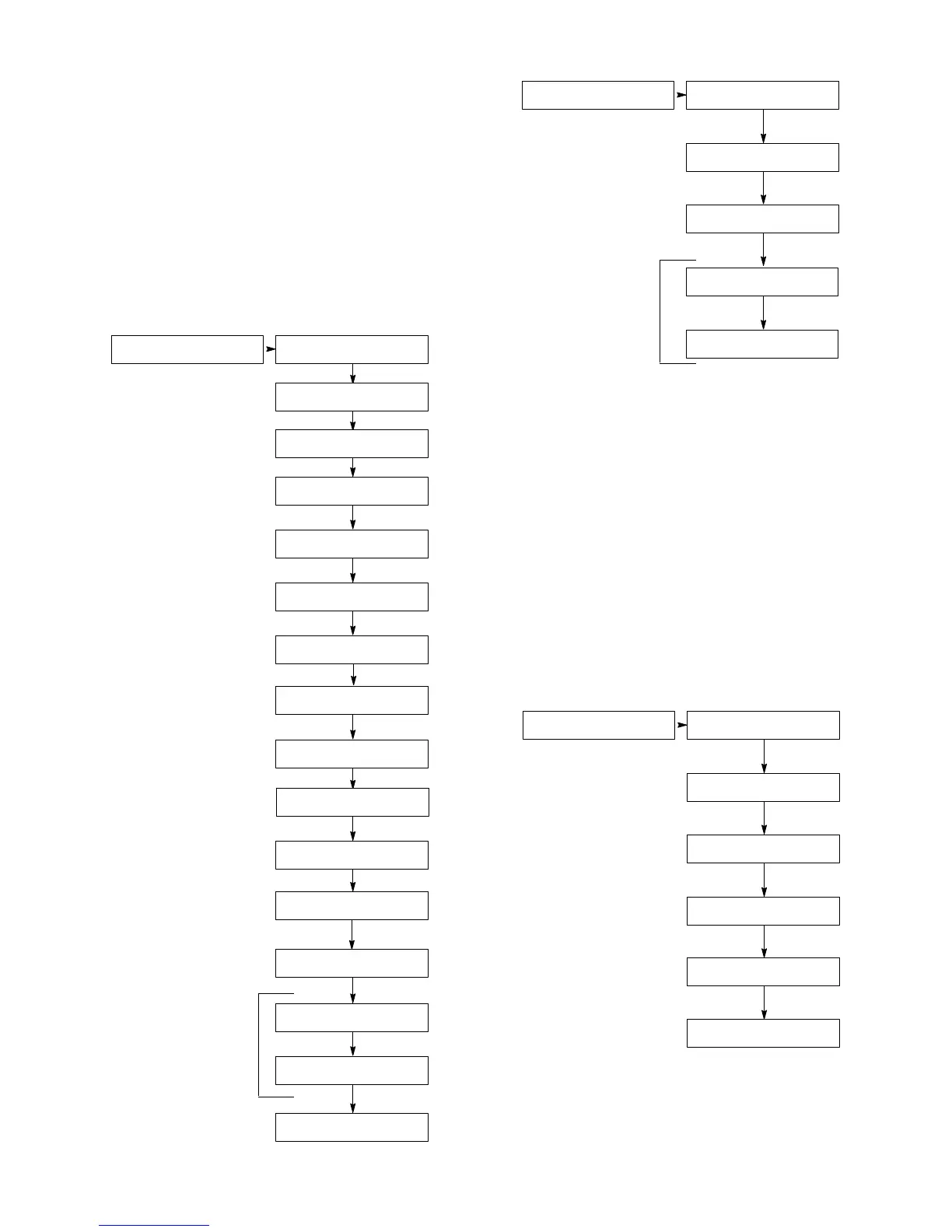

Overview (Auto Scrolling Display)
Overview ---->
##.# hr
Average kW
#### kW
SW Version:
1.02
Coolnt Temp:
### F
Diesel Powered
Models (requires fuel
tank sensor) -->
Engine Dependent
(see NOTE above) -->
Active Shutdowns
(if present)
Active Warnings
(if present)
GenSet State ######
Avg V L--L:
#.# V
Frequency:
#.# Hz
Current:
#.# A
Oil Pressure:
# PSI
Fuel Level:
#%
Fuel Pressure:
## PSI
Battery:
##.# V
Eng Runtime:
##.# h
CHG1: ##.#V
##.# A
CHG2: ##.#V
##.# A
With 10 Amp Charger
GM87448 Only
(N/A if no charger) -->
Overview (Fixed Display)
Overview ---->
##.# hr
###_ C ##.# %
#.# MPa ##.# V
### V ##.# Hz
### A #### kW
###_F ###%
### PSI ##.# V
English Display
Measurements -->
Metric Display
Measurements -->
CHG1: ##.# V
##.# A
CHG1: ##.# V
##.# A
With 10 Amp Charger
GM87448 Only
(N/A if no charger) -->
The battery charger displays appear only if the
CAN-enabled 10 amp charger GM87448 has been
connected. Charger displays will show N/A if the
charger is connected and then removed.
2.7.3 Engine Metering
Displays engine operating data as measured by the
engine and other sensors.
Note: Some displays are engine dependent, refer to the
Appendix, Controller Displays from the Engine
ECM.
Engine Metering
Engine ---->
Metering
Coolnt Temp:
### F
Eng Speed:
#R/min
Oil Pres:
# PSI
Fuel Pressure:
## PSI
Fuel Level:
#%
Battery:
##.# V
Diesel Powered Models
(requires fuel tank
sensor) -->
Engine Dependent
(see NOTE above) -->
