TP-6694 7/1898 Section 6 Accessories
6.1.10 Remote Emergency Stop Kit
The emergency stop kit allows immediate shutdown of
the generator set from a remote location. See
Figure 6-20 and Figure 6-21. If the emergency stop
switch activates, the EMERGENCY STOP lamp lights
and the unit shuts down. Before attempting to restart the
generator set, reset the emergency stop switch (by
replacing the glass piece) and reset the generator set by
pressing the master control switch OFF/RESET button.
Use the single glass piece located inside the switch for
replacement and order additional glass pieces as
service parts. See Section 2.4.3, Emergency Stop
Switch Resetting.
See Section 6.2, Accessory Connections, for terminal
identifications.
A-222654
TP-5352-1

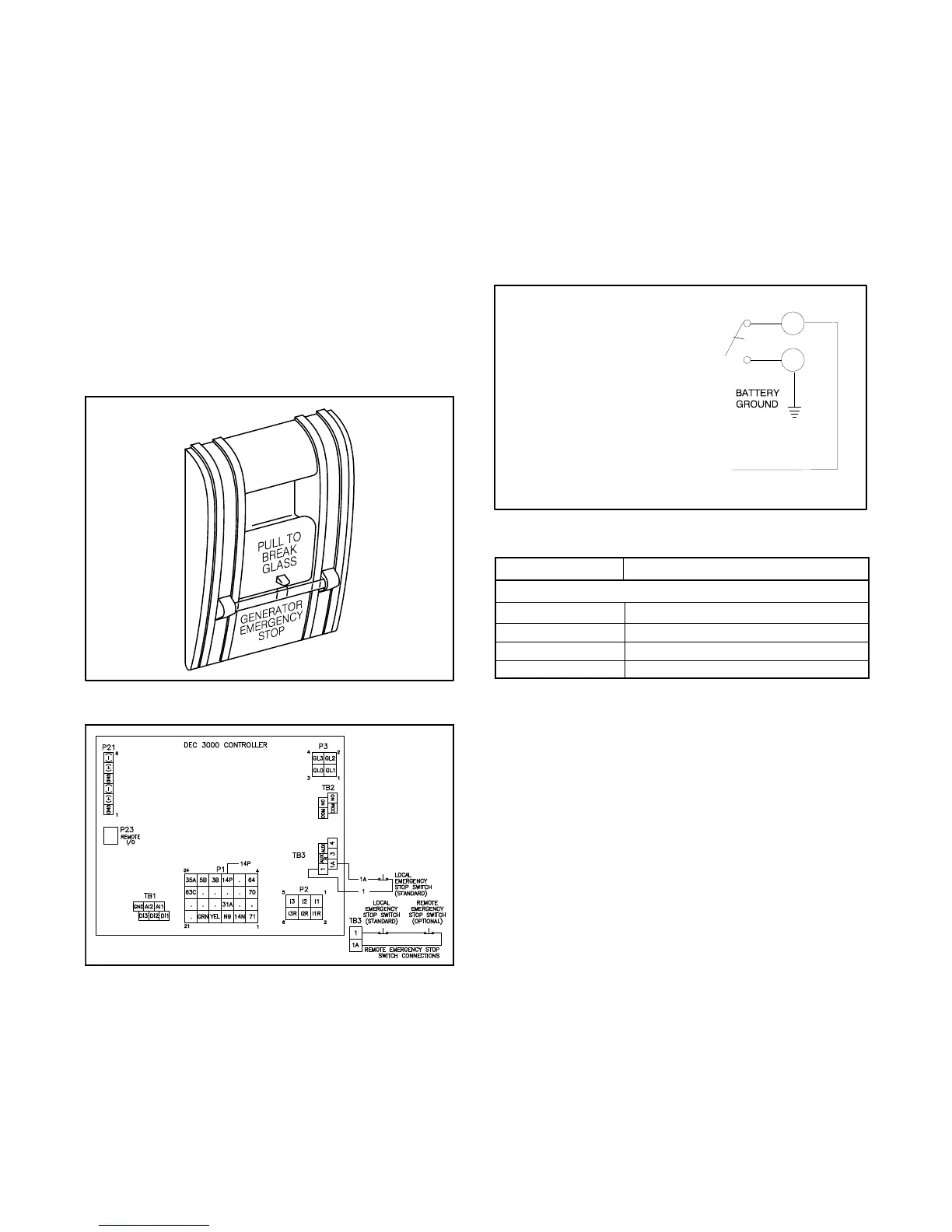

Figure 6-20 Emergency Stop Kit
GM67191-B
Figure 6-21 Remote Emergency Stop Kit
Connections
6.1.11 Remote Reset Feature
The remote reset switch provides generator set
controller resetting after a fault shutdown at a remote
location. See Figure 6-22 and Figure 6-23 for
user-supplied switch connection.
Press and hold the switch for 2--3 seconds and release
to reset the generator set controller.
See Section 6.2, Accessory Connections, for terminal
identifications.
REMOTE RESET SWITCH
CONTACTS NORMALLY OPEN
MOMENTARY CLOSED TO
ACTIVATE
GM16088A-A-/TP--6694
CONNECT TO TB1 as a Di-
gital Input
Figure 6-22 Remote Reset Switch Connections
Switch Rating 12 volts DC minimum, 1 amp minimum
Wiring Recommendation
Gauge m (ft.)
18--20 30.5 (100)
14 153 (500)
10 305 (1000)
Figure 6-23 Switch Rating and Wiring
Recommendations
