TP-6461 1/08
107
Section 7 Component Replacement, Model KSP
3. Remove two M4 bolts that secure the trip coil. See
Figure 7-23.
6226
1. Trip coil M4 bolts (2)
2. Trip shaft M4 bolt (and ring, not visible in this view)
3. Trip lever
1 2 3

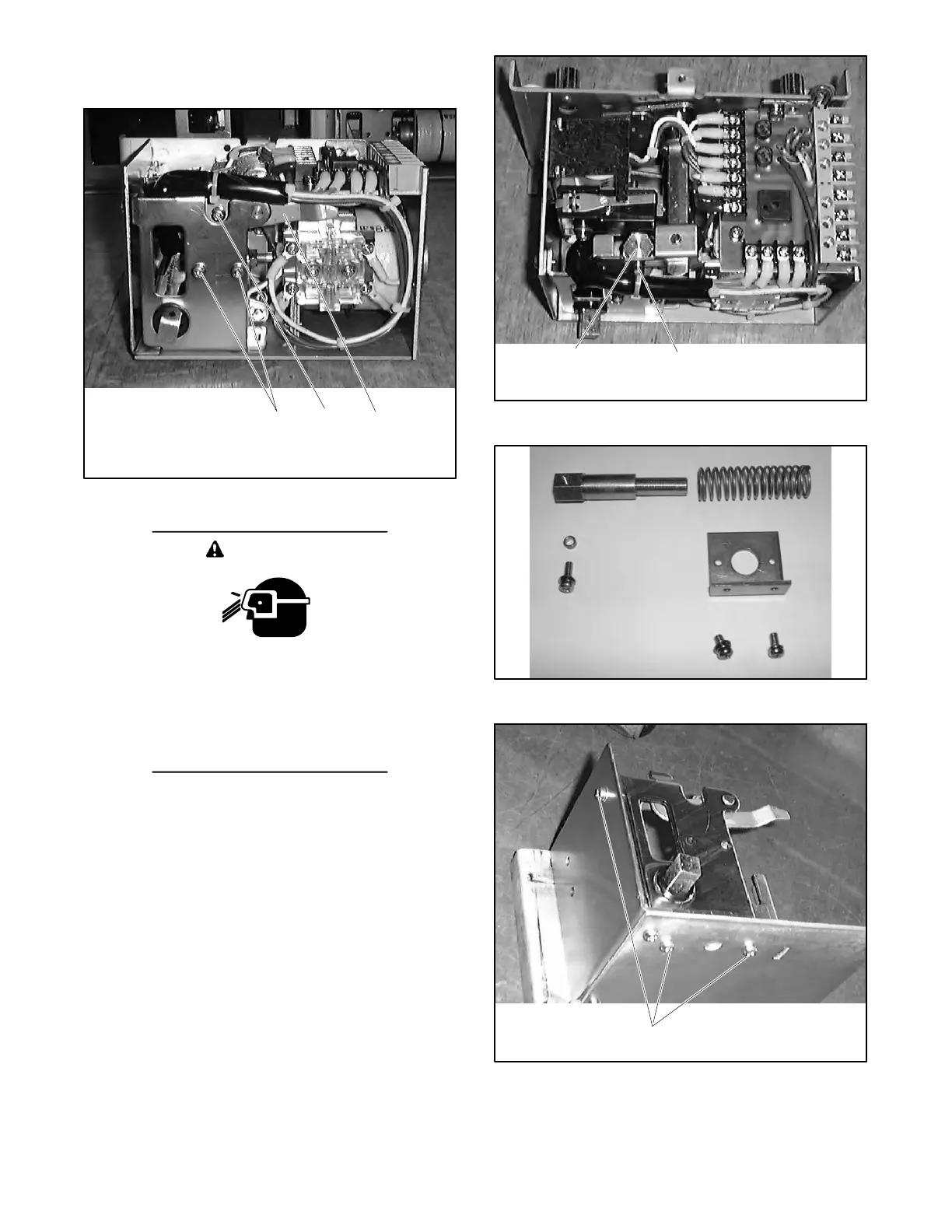

Figure 7-23 Trip Coil and Trip Shaft Bolts
Spring-loaded parts.
Can cause severe personal injury
or property damage.
Wear protective goggles when
servicing spring-loaded parts. Hold
parts securely during disassembly.
WARNING
4. The trip shaft is spring-loaded. Hold the shaft
securely while removing the trip shaft bolt. See
Figure 7-24. Remove the M4 bolt with ring, trip
shaft, spring, and L-shaped bracket. See
Figure 7-25. Keep the parts for reassembly later.
5. Loosen three bolts shown in Figure 7-26, remove
the side plate, and replace the trip coil. See
Figure 7-26.
6226
1
1. Trip shaft
2. M4 bolt
2
Figure 7-24 Trip Shaft Location
6226
Figure 7-25 Trip Shaft Parts
6226
1. Bolts (3)
1
Figure 7-26 Side Plate Bolts
To Next Page
