Section 7 Component Replacement, Model KSP
7.3.5 Select Coil Replacement,
600 Amp Models
1. Note the connections and disconnect the select
coil leads from the printed circuit board and the
control switch. See Figure 7-32 and Figure 7-33.
2. Loosen the M5 bolt and remove the select coil
movable steel shaft and the spring. See
Figure 7-35 and Figure 7-36.
3. Loosen the M4 bolts and replace the select coil.
See Figure 7-35.
4. Connect the select coil leads to the control switch
and circuit board.
6226
1. Steel shaft (and spring, see Figure 7-36)
2. Select coil
3. Select coil M4 bolts
3
1
2

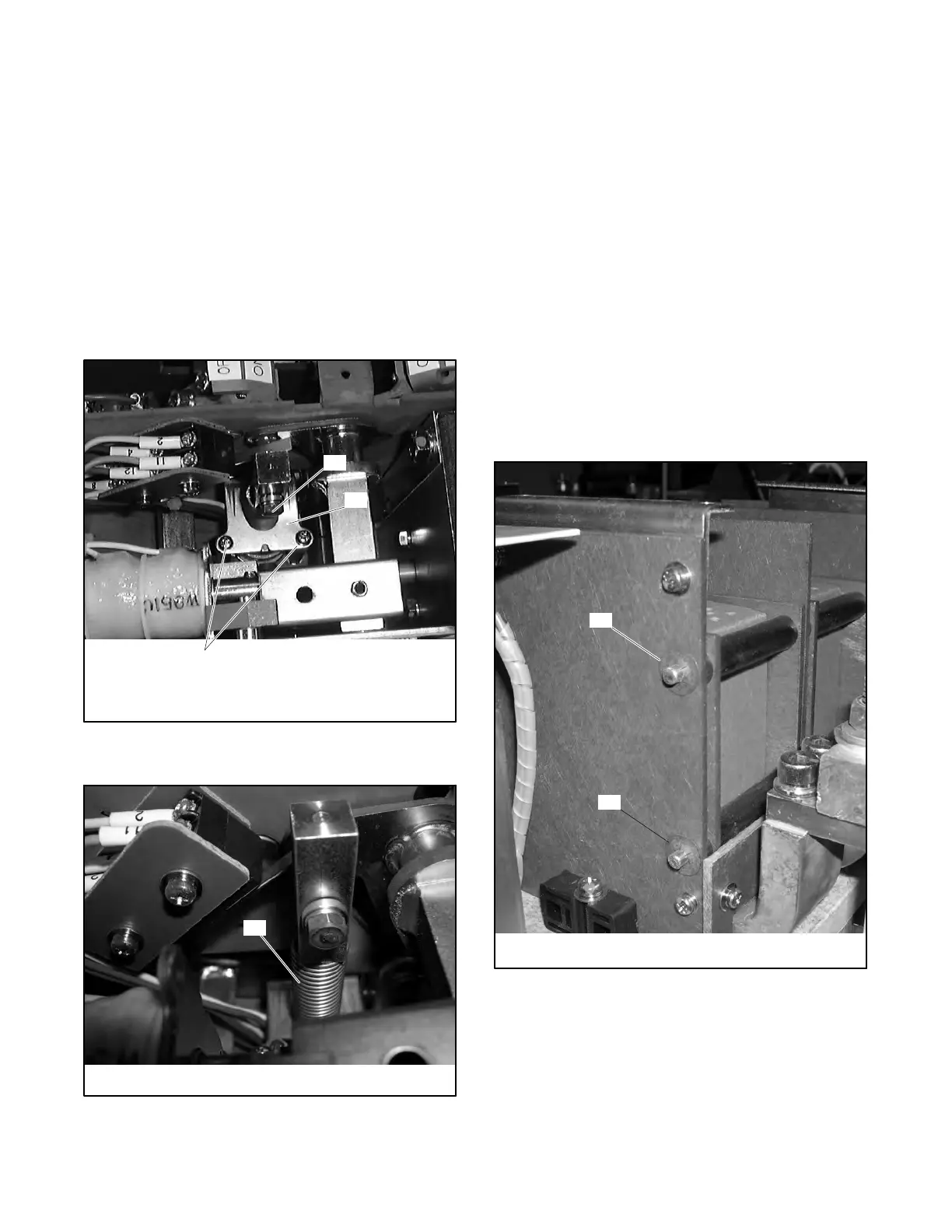

Figure 7-35 Select Coil Replacement, 600 Amp
Models
1
6226
1. Spring
Figure 7-36 Spring Location
7.3.6 Printed Circuit Board
Replacement, 600 Amp Models
Note: The individual rectifiers are not replaceable.
Replace the entire printed circuit board in the
case of rectifier failure.
1. Note the connections and disconnect all leads to
the circuit board. See Figure 7-32.
2. Loosen the M4 bolts to replace the printed circuit
board.
3. Reconnect all leads.
7.3.7 Arc Chute Replacement,
600 Amp Models
Note: Some units use retainers (part number 295010)
instead of M6 nuts. See Figure 7-37. Obtain new
retainers before disassembly.
1
6226
1. Retainer
1
Figure 7-37 Retainer
