TP-6461 1/08 49Section 3 Transfer Switch Troubleshooting

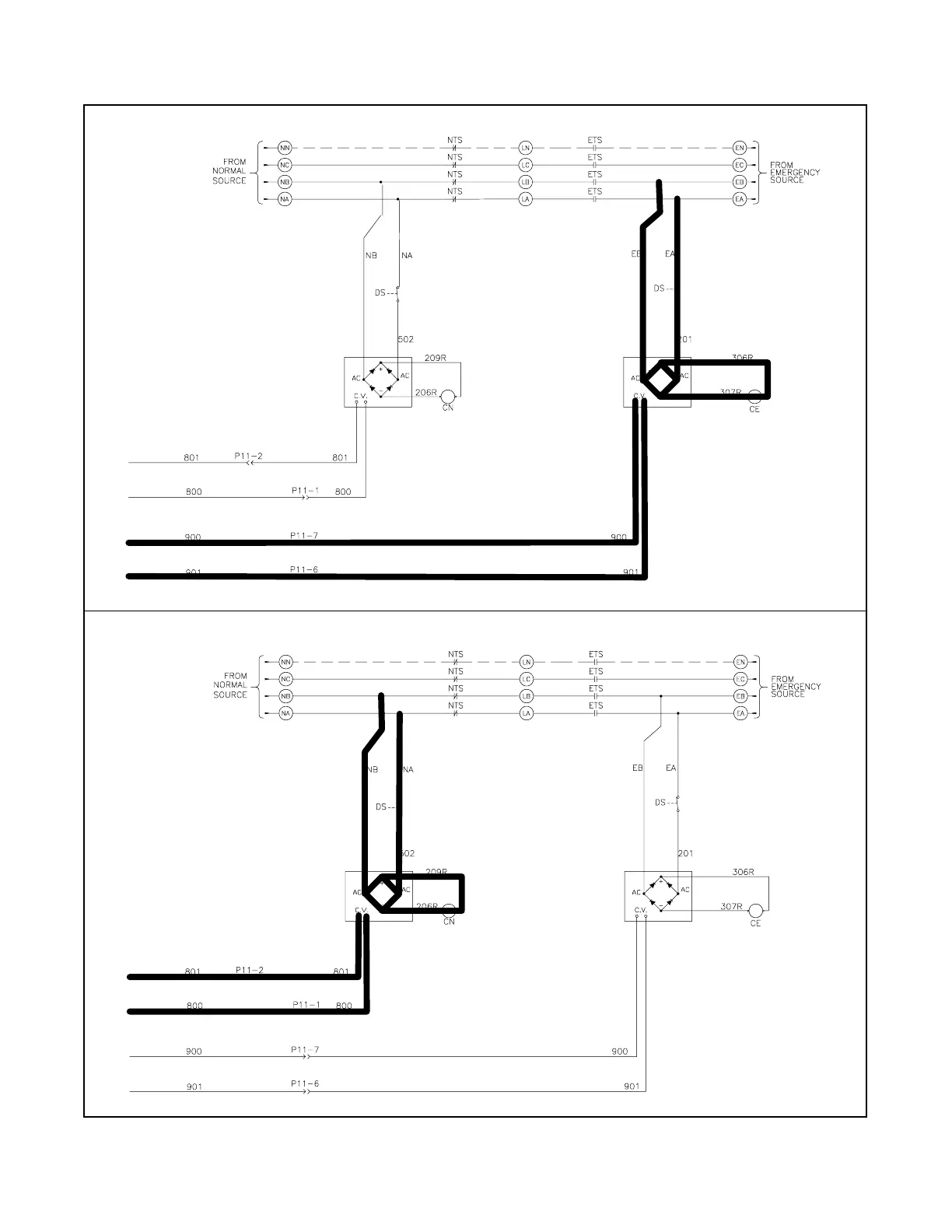

3.6.6 Solenoid Operation Diagrams, Model KGS Open Transition Bypass/Isolation
Switches
GM46246
Central voltage C.V. triggers
SCRRNtoactivatecoilCN.
Central voltage C.V.
triggers SCR RE to
activate coil CE.
SCR
RN
SCR
RE
SCR
RN
SCR
RE
Normal to Emergency
Emergency to Normal
