Kohler KSS User Manual

TP-6461 1/08
106
Section 7 Component Replacement, Model KSP

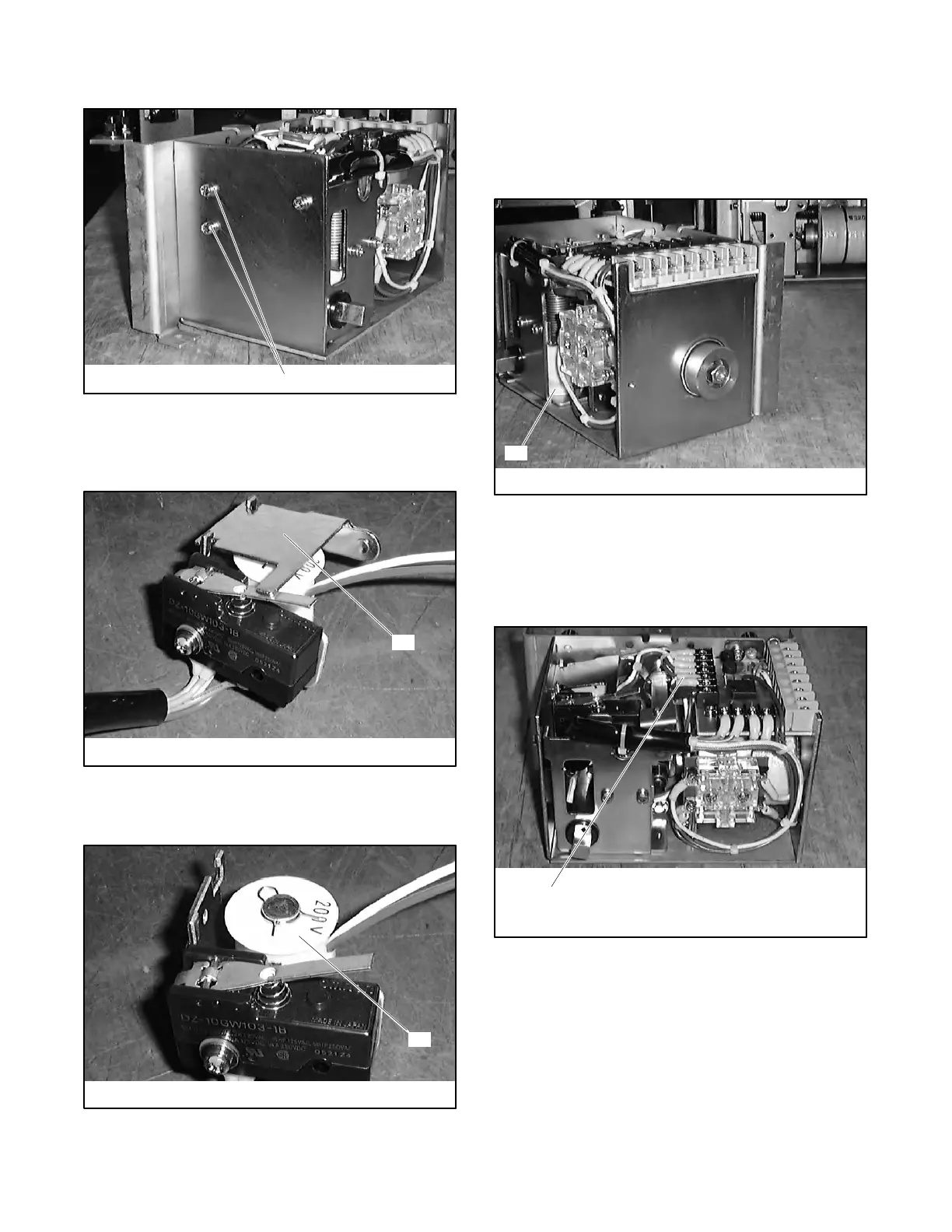

2. Remove two M4 bolts shown in Figure 7-18 and
remove the select coil assembly.
6226
1. M4 bolts
1
Figure 7-18 Select Coil Assembly Bolts
3. Remove the upper plate from the select coil
assembly. See Figure 7-19.
6226
1. Upper plate
1
Figure 7-19 Select Coil Assembly
4. Replace the select coil. See Figure 7-20.
6226
1. Select coil
1
Figure 7-20 Select Coil
7.2.6 Trip Coil Replacement,
100--400 Amps
Note: Remove the select coil first for easier access to
the trip coil. See Section 7.2.5.
1. Locate the trip coil. See Figure 7-21.
6226
1. Trip coil
1
Figure 7-21 Trip Coil Location
2. Note the connections and disconnect the trip coil
leads from the printed circuit board. See
Figure 7-22.
6226
1. Trip coil connections
1
Figure 7-22 Trip Coil Connections
