TP-6461 1/08
108
Section 7 Component Replacement, Model KSP
6. Reassemble in reverse order:
Align the bosses on the coil with the holes in the
L-shaped bracket.
Be sure to reinstall the ring on the trip shaft bolt and
align the parts so that the ring fits into the hole on
the trip lever.
7.2.7 Arc Chute Replacement,
100--400 Amps

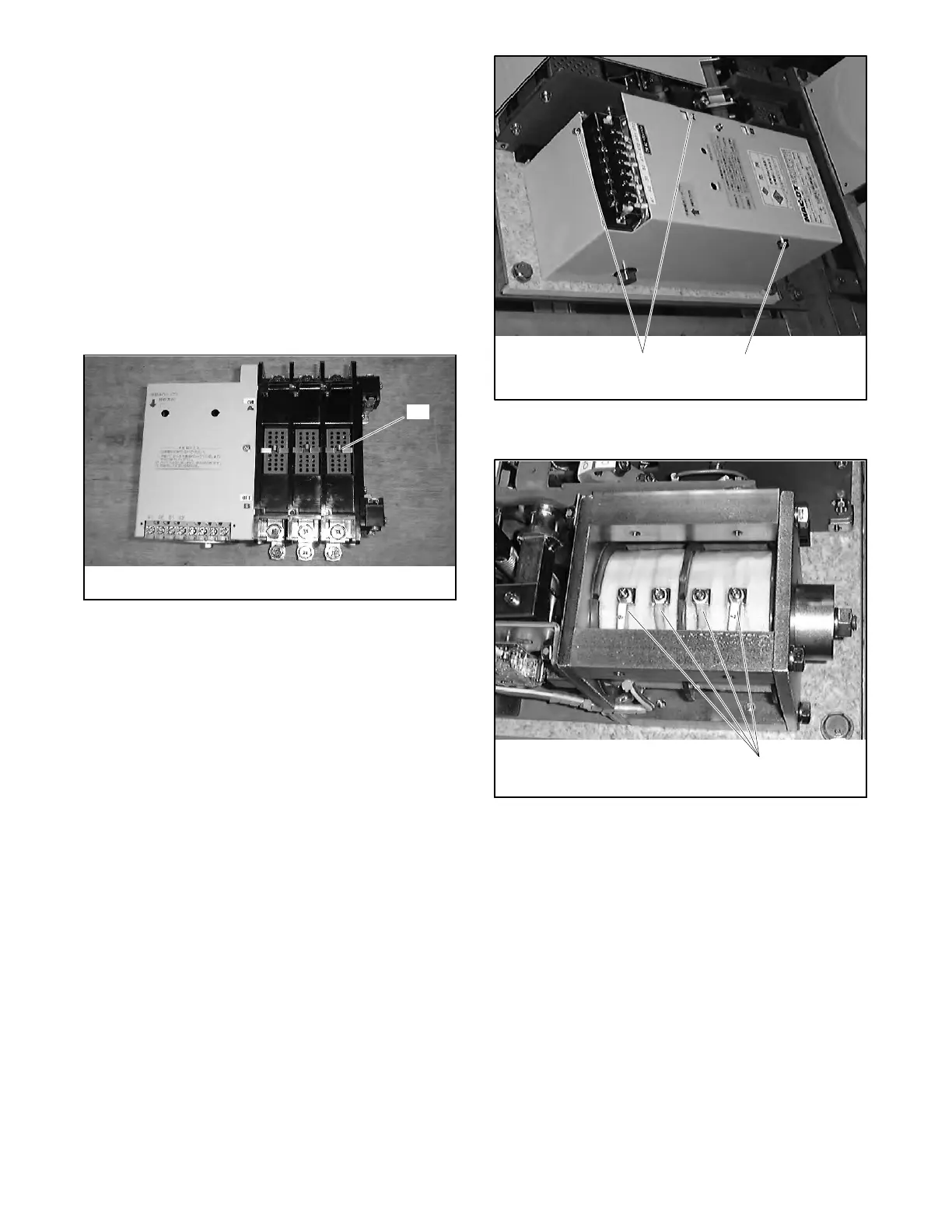

Remove the retainer clips shown in Figure 7-27 and
replace the required arc chute. Reinstall the retainer
clips.
6226
1. Arc chute retainer clips
1
Figure 7-27 Arc Chutes
7.3 Component Replacement,
600 Amp Models
7.3.1 Closing Coil Replacement,
600 Amp Models
1. Remove the M4 bolts and the M6 bolt. Remove the
cover from the mechanical unit. See Figure 7-28.
2. Note the connections shown in Figure 7-29 and
disconnect the closing coil leads at four locations.
6226
1. M4 bolts
2. M6 bolt
1 2
Figure 7-28 Removing the Cover
6226
1. Closing coil leads
1
Figure 7-29 Closing Coil Connections
