TP-6461 1/08
112
Section 7 Component Replacement, Model KSP
1. Remove the insulation plate. See Figure 7-38.
6226
1. Insulation plate
1

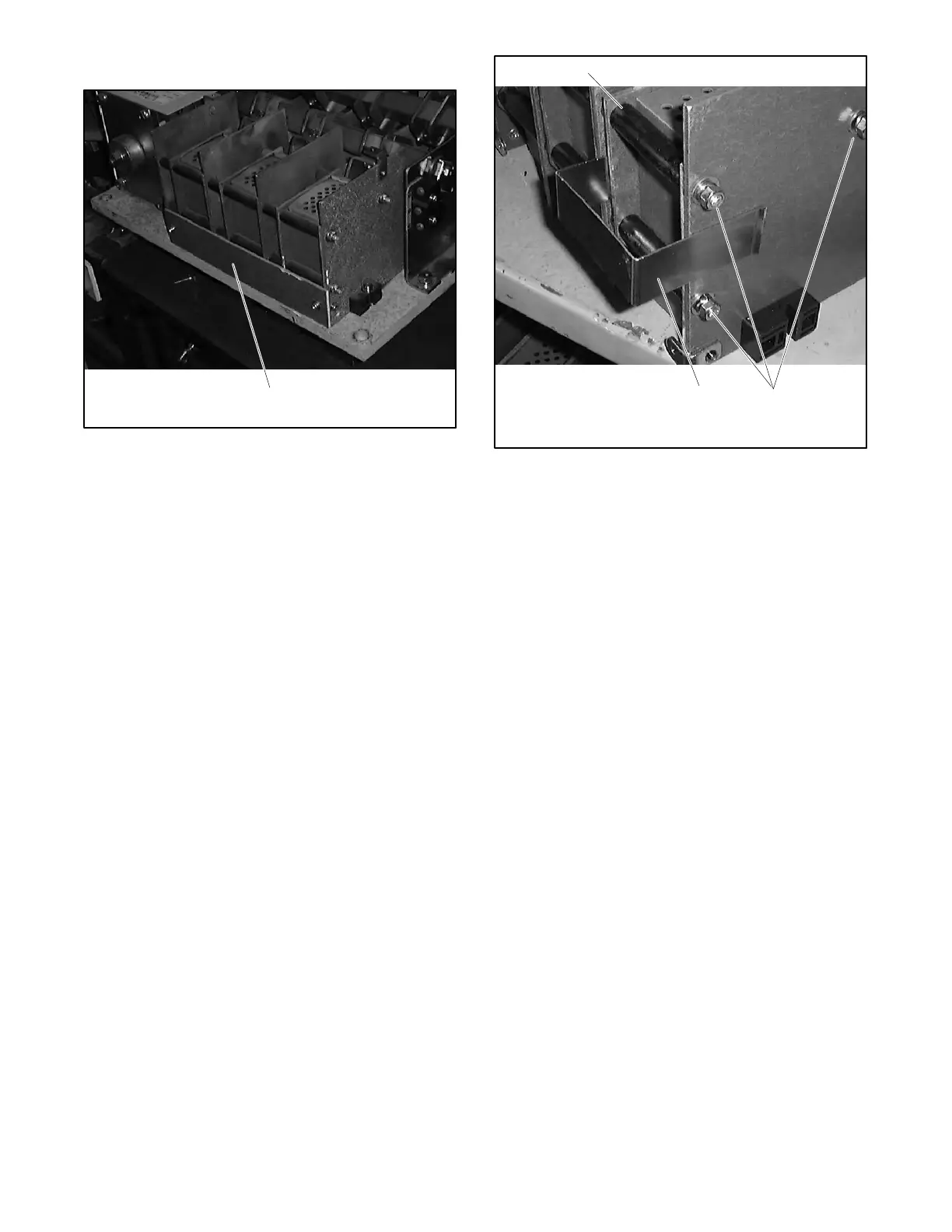

Figure 7-38 600 Amp Contactor
2. Attach a clamp or fixture similar to the one shown in
Figure 7-39.
Note: The transfer switch will come apart if the
parts are not clamped as shown before the
nuts or retainers are removed.
3. Loosen the M6 nuts or remove the retainers. See
Figure 7-39.
4. Remove the upper rod shown in Figure 7-39.
tp6226
1. Remove this rod
2. Fixture
3. M6 nuts or retainers
2
3
1
Figure 7-39 Fixture or Clamp, 600 Amp Models
5. Replace the arc chutes.
6. Replace the rod.
7. Reinstall and tighten the M6 nuts or install new
retainers and then remove the clamp.
8. Reinstall the insulation plate.
