Kold-Draft GB564AC - Parts Diagrams; Gt36 X Parts

50
PARTS DIAGRAMS

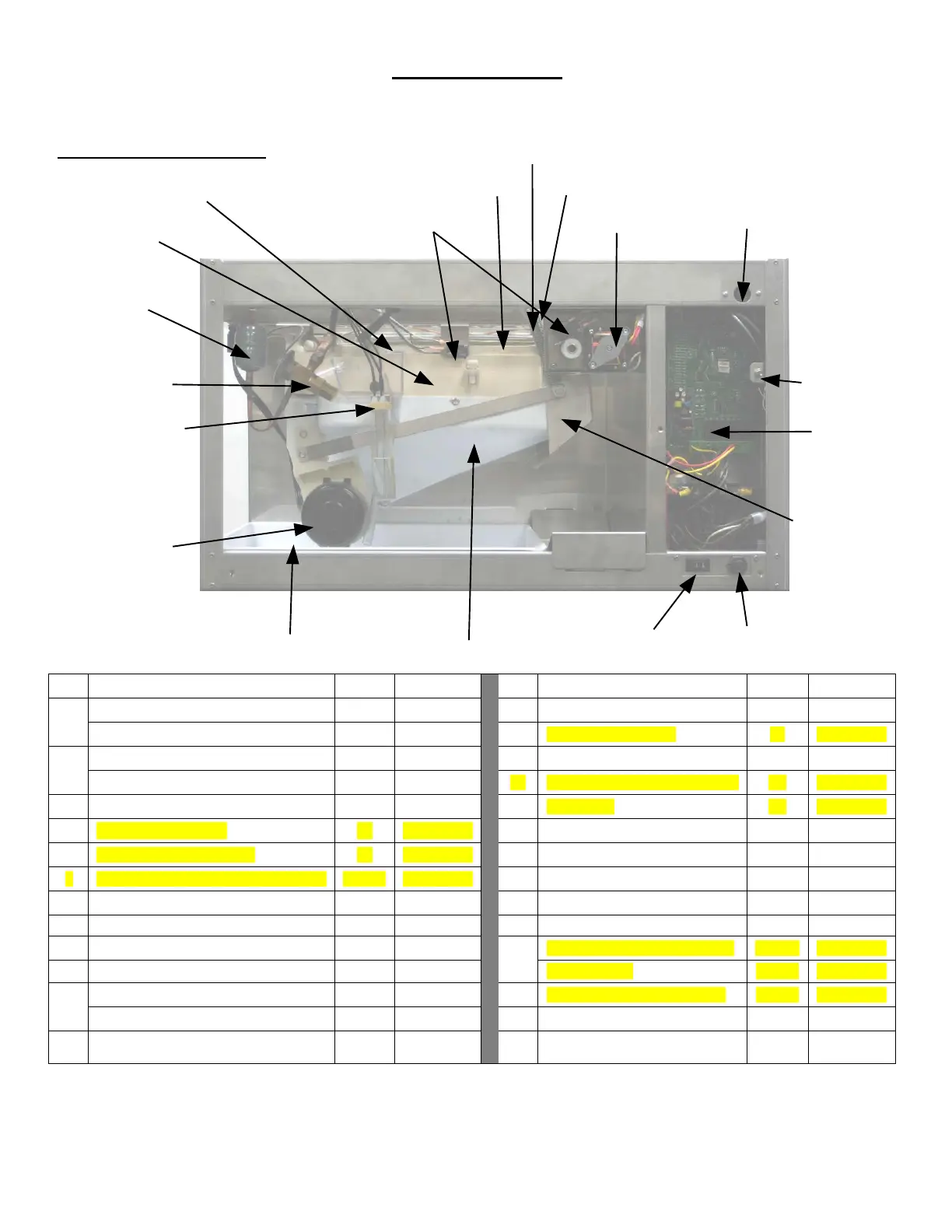

GT36x Parts – Left Side
No.
Part Description
Model
Part No.
No.
Part Description
Model
Part No.
1
Water Plate "C"
GT36x
102141501
10
Ice-Clean Switch
All
102138501
Water Plate "HK”
GT36x
102141601
11
Controller ( PCB 1.8
All
102145901
2
Evaporator "C"
GT36x
102142101
12
Water Deflector
GT36x
102141001
Evaporator "HK"
GT36x
102142001
13
Fuse Holder With Fuse 4amp
All
102144901
Fuse Only
All
102136301
3
Cam Switch 2Req’d
All
102138001
14
On-Off Switch
All
102138601
Magnetic Plate Switch-Kit
All
102147701
4
Evap/Bin Temperature Probe Assy
GT36x
102143901
15
Water Tank
GT36x
102142301
5
Spring 2Req’d
All
GBR00909
16
Drain Pan
GT36x
102142201
6
Cam (Front) with Spring
All
GBR00969
17
Water Pump All GT3,GT5,GB
ALL IM
102146305
7
Cam (Rear) with Spring
All
GBR00949
Power Supply
GT364
102146303
8
Actuator Motor
GT361
102140901
18
Water Level Assy ( FLOAT )
GT36x
102146201
Actuator Motor
GT364
102123802
19
Expansion Valve
GT36x
102118802
9
High Pressure Cut-Out
(Manual Reset)
All
102105501
20
Filter Drier
All
GBR02750
14-On/Off Switch
11-Controller
10-Ice/Clean Switch
9-High Pressure Cut-Out
20-Filter Drier
19-Expansion Valve
16-Drain Pan
8-Actuator Motor
3-Plate/Cam Switch (3x)
17-Water Pump
18-Probe Tube Assy
1-Water Plate
12-Water Deflector
15-Water Tank
2-Evaporator
5-Spring (2x)
6-Front Cam w/Springs
7-Rear Cam w/Springs
4-Evap/Bin Temp Sensor Assembly
13-Fuse Holder w/ 4A fuse
