PARTS DIAGRAMS

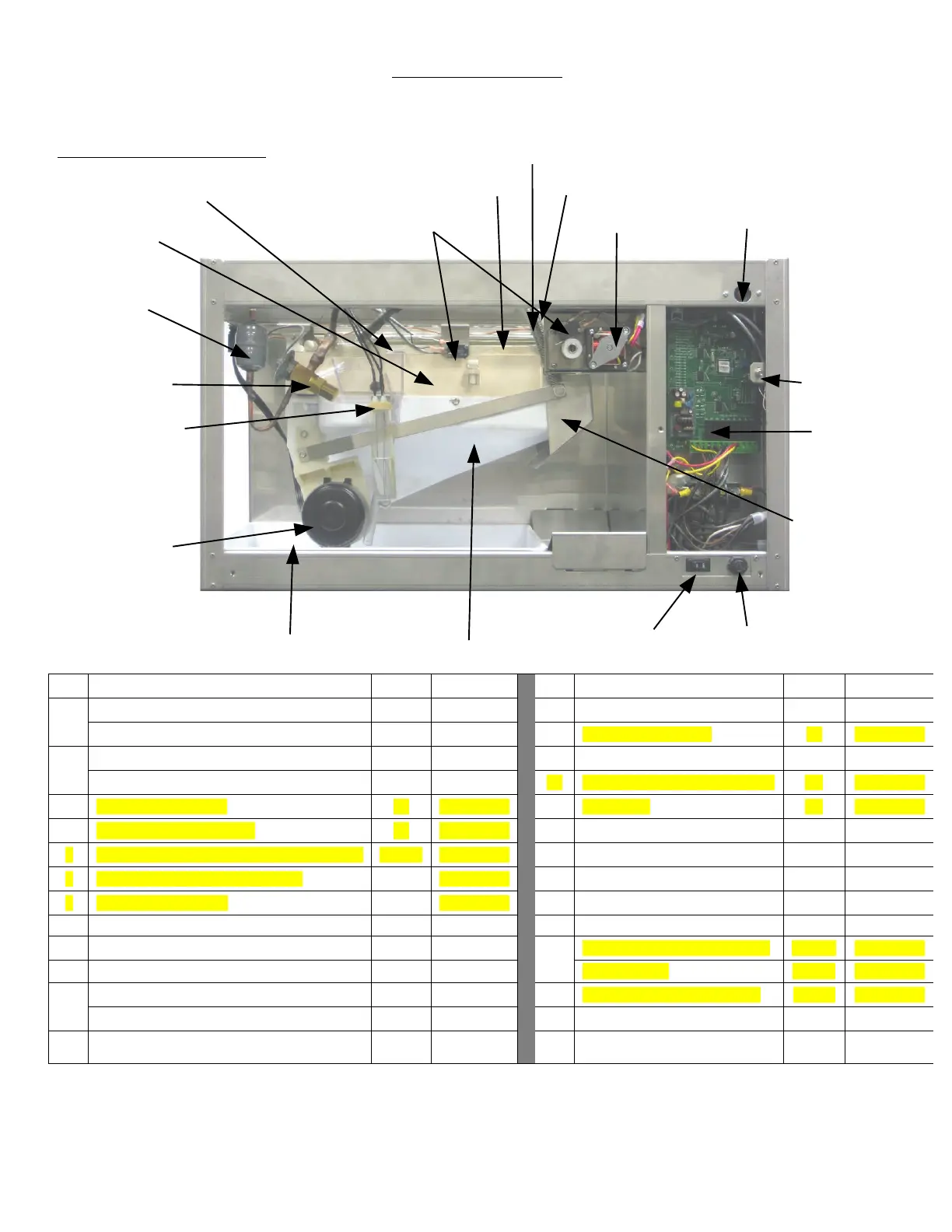

GT36x Parts – Left Side
No. Part Description Model Part No.
No. Part Description Model Part No.
1
Water Plate "C" GT36x 102141501 10 Ice-Clean Switch All 102138501
Water Plate "HK” GT36x 102141601 11 Controller ( PCB 1.8 All 102145901
2
Evaporator "C" GT36x 102142101 12 Water Deflector GT36x 102141001
Evaporator "HK" GT36x 102142001 13 Fuse Holder With Fuse 4amp All 102144901
3 Cam Switch 2Req’d All 102138001 Fuse Only All 102136301
Magnetic Plate Switch-Kit All 102147701 14 On-Off Switch All 102138601
4 Evap./Bin Temperature Probe Assembly GT36x 102143901
4 EVAPORATOR PROBE KIT 1.8 102145701 15 Water Tank GT36x 102142301
4
BIN PROBE KIT 1.8
102145801
5
Spring 2Req’d
All
GBR00909
16
Drain Pan
GT36x
102142201
6 Cam (Front) with Spring All GBR00969
17
Water Pump All GT3,GT5,GB ALL IM 102146305
7 Cam (Rear) with Spring All GBR00949 Power Supply GT364 102146303
8
Actuator Motor GT361 102140901 18
Water Level Assembly Float GT36x 102146201
Actuator Motor GT364 102123802 19 Expansion Valve GT36x 102118802
9
High Pressure Cut-Out
(Manual Reset)
All 102105501 20 Filter Drier All GBR02750
14-On/Off Switch
11-Controller
10-
Ice/Clean Switch
9-High Pressure Cut-Out
20-Filter Drier
19-Expansion Valve
16-Drain Pan
8-Actuator Motor
3-Plate/Cam Switch (3x)
17-Water Pump
18-Probe Tube Assy
1-Water Plate
12-Water Deflector
15-Water Tank
2-Evaporator
5-Spring (2X)
6-Front Cam w/Springs
7-Rear Cam w/Springs
4-Evap/Bin Temp Sensor Assembly
13-Fuse Holder w/ 4A fuse
