Kold-Draft RC314APV SC200 - Gt56 X Parts

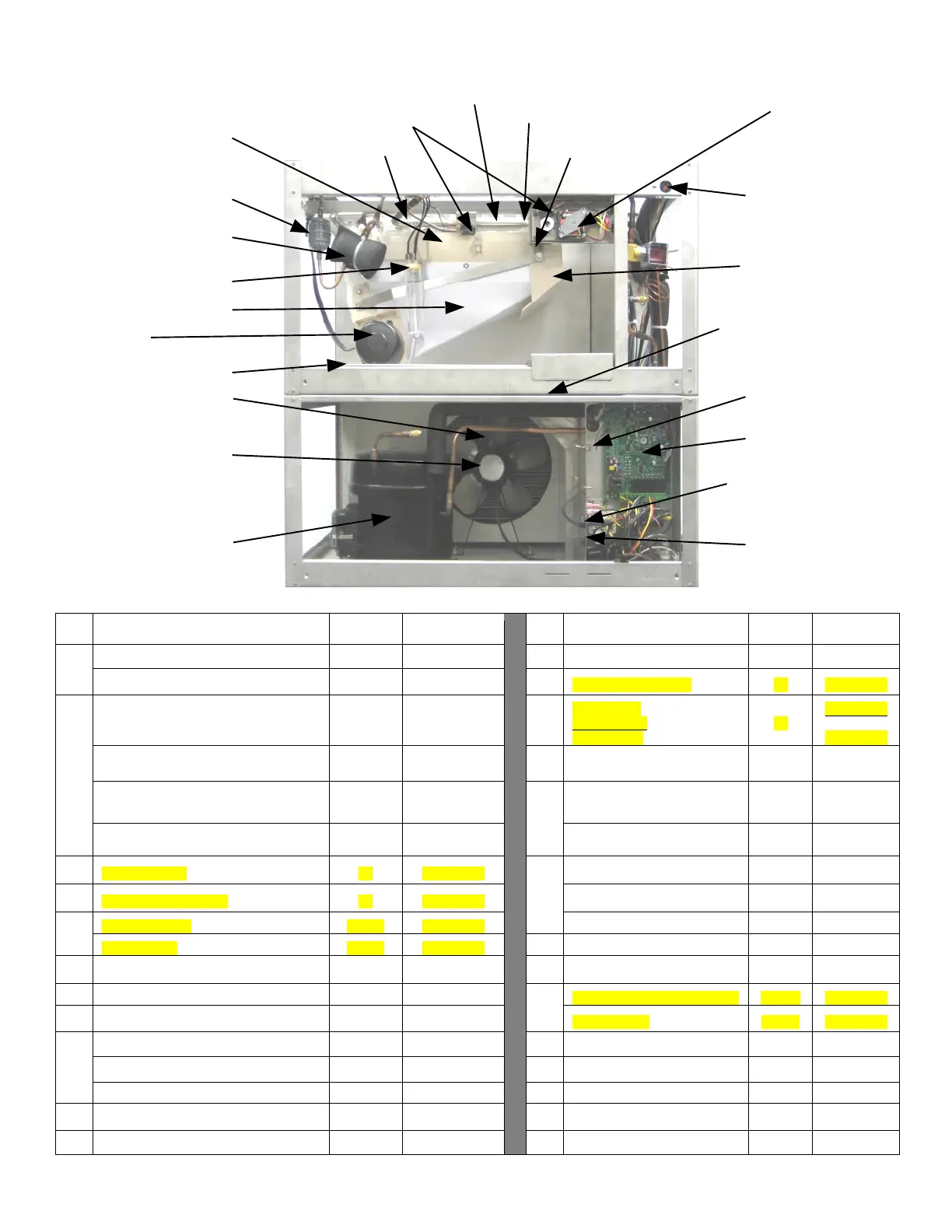

GT56x Parts – Left Side
No.
Part Description
Model #
Part No.
No.
Part Description
Model #
Part No.
1
Water Plate "C"
GT56x
GBR00200
12
Ice/Clean Switch
All
102138501
Water Plate "HK”
GT56x
GBR00270
13
Controller ( PCB 1.8 )
All
102145901
2
Evaporator-"C"
After S/N 608887
GT56x
102144501
14
Fuse Holder
With 4A Fuse
FUSE ONLY
All
102144901
102136301
Evaporator-"HK”
After S/N 608887
GT56x
102144601
15
On/Off Switch
All
102138601
Evaporator-“k”
GT56x
102147201
16
Compressor
GT561
102119128
Bin/Evap. Combo
GT56x
102143901
Compressor
GT564
102119131
3
Cam Switch (2)
All
102138001
17
Fan Motor
GT561
102139201
Magnetic Plate Switch
All
102147701
4
Evap. Probe 1.8
GT56x
102145701
Fan Motor
GT564
102139301
Bin Probe 1.8
GT56x
102145801
18
Fan Blade
All
102101602
5
Front Cam w/Springs
All
GBR00969
19
Drain Pan
GT56x
102137801
6
Rear Cam w/Springs
All
GBR00949
20
Water Pump All GT3,GT5,GB
ALL IM
102146305
7
Spring (2 per PK )
All
GBR00909
Power Supply
GT564
102146303
8
Actuator Motor
GT561
102123801
21
Water Tank
GT56x
102143301
Actuator Motor
GT564
102123802
22
Water Fill Assembly Float
GT56x
102146201
9
High Pressure Cut-Out
All
102105501
23
Expansion Valve
GT56x
GBR02359
10
Water Deflector
GT561
GBR00202
24
Filter Drier
All
GBR02750
14-Fuse Holder with 4A Fuse
15-On/Off Switch
13-Controller
24-Filter Drier
23-Expansion Valve
19-Drain Pan
18-Fan Blade
17-Fan Motor
16-Compressor
22-Probe Tube Assembly
1-Water Plate
21-Water Tank
2-Evaporator
7-Spring (2x)
5-Front Cam w/Springs
6-Rear Cam w/Springs
4-Evap/Bin Temp Sensor Assembly
8-Actuator Motor
10-Water Deflector
12-Ice/Clean Switch
9-High Pressure Cut-Out
20-Water Pump
11-Defrost Valve Coil
3-Plate/Cam Switch (3x)
