Kold-Draft RC314APV SC200 - Page 61

56

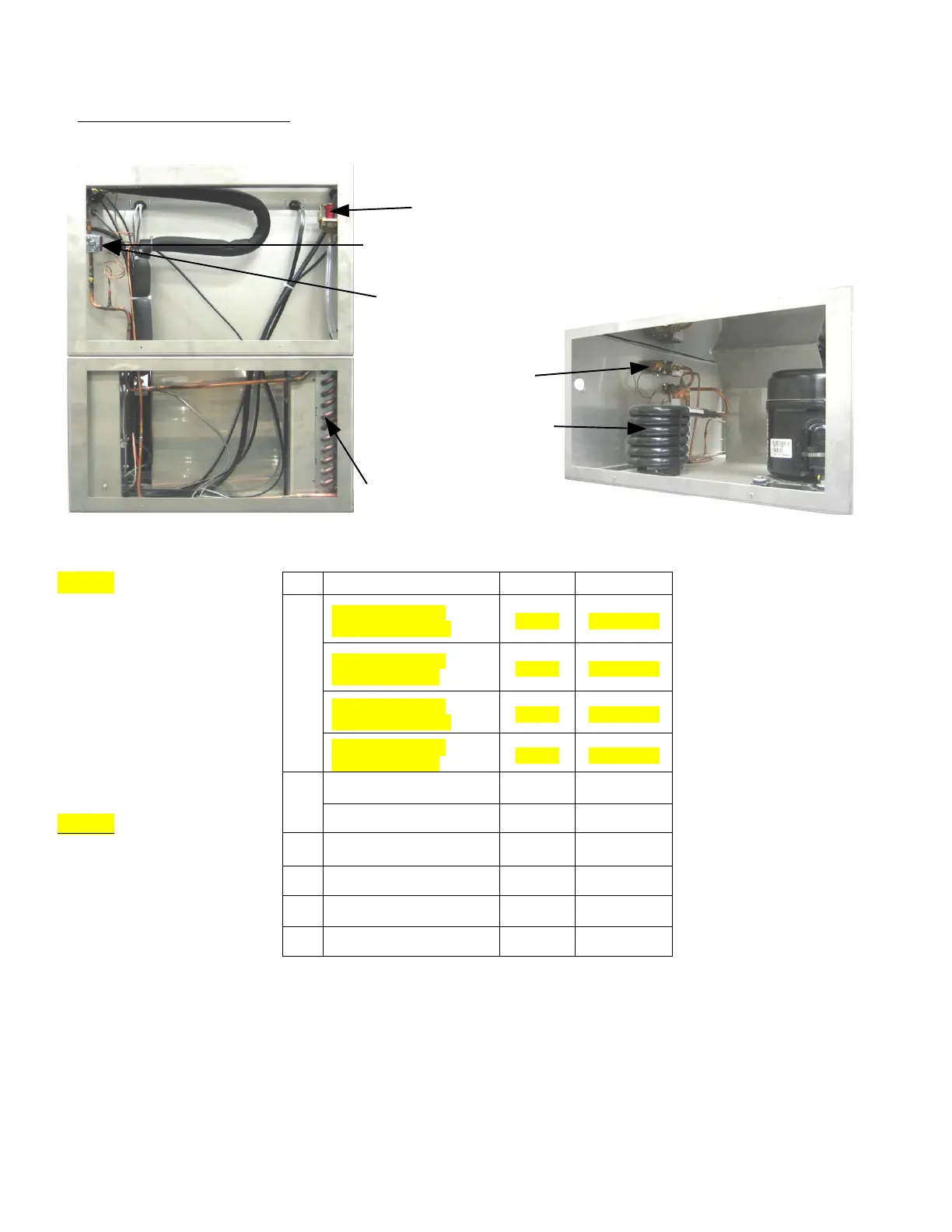

1-Water Valve
5-Condenser (Liquid Cooled)
Left Side
Liquid Cooled
6-Condenser (Air Cooled)
2-Defrost Valve Coil
3-Defrost Valve Body
4-
Liquid Regulator Valve
GT561
RUN CAP-102119704
START CAP-102119508
START RELAY-
102104709
GT564
RUN CAP–102104401
START CAP–
102119502
START RELAY-
102104706
No.
Description
Model(s)
Part No.
1
Water Valve-115V
Before S/N 607945
GT561 102138301
Water Valve-115V
After S/N 607945
GT561 102141201
Water Valve-230V
Before S/N 607945
GT564 102138401
Water Valve-230V
After S/N 607945
GT564 102141101
2
Defrost Valve Coil GT561 102101101
Defrost Valve Coil GT564 102101201
3 Defrost Valve Body GT56x 102101001
4 Liquid Regulator Valve GT56xL GAR00701D
5 Condenser-Liquid Cooled GT56xL 102102101
6 Condenser-Air Cooled GT56xA 102101803
GT56x Parts -Right Side
Water valve in same location on “A” and “L” models.
