§2.1 K5 PLUS Mainframe
§2.1.1 The mainframe appearance
The mainframe is a flat cylindrical, 118mm in height, 134mm in diameter, the
height from the rubber seal ring to the bottom is 78mm. The front side is the
buttons and indicator panel. The bottom of the instrument is radio and network
interface, as well as the battery compartment and other interfaces; there is a
string of bar code number, which is machine number.

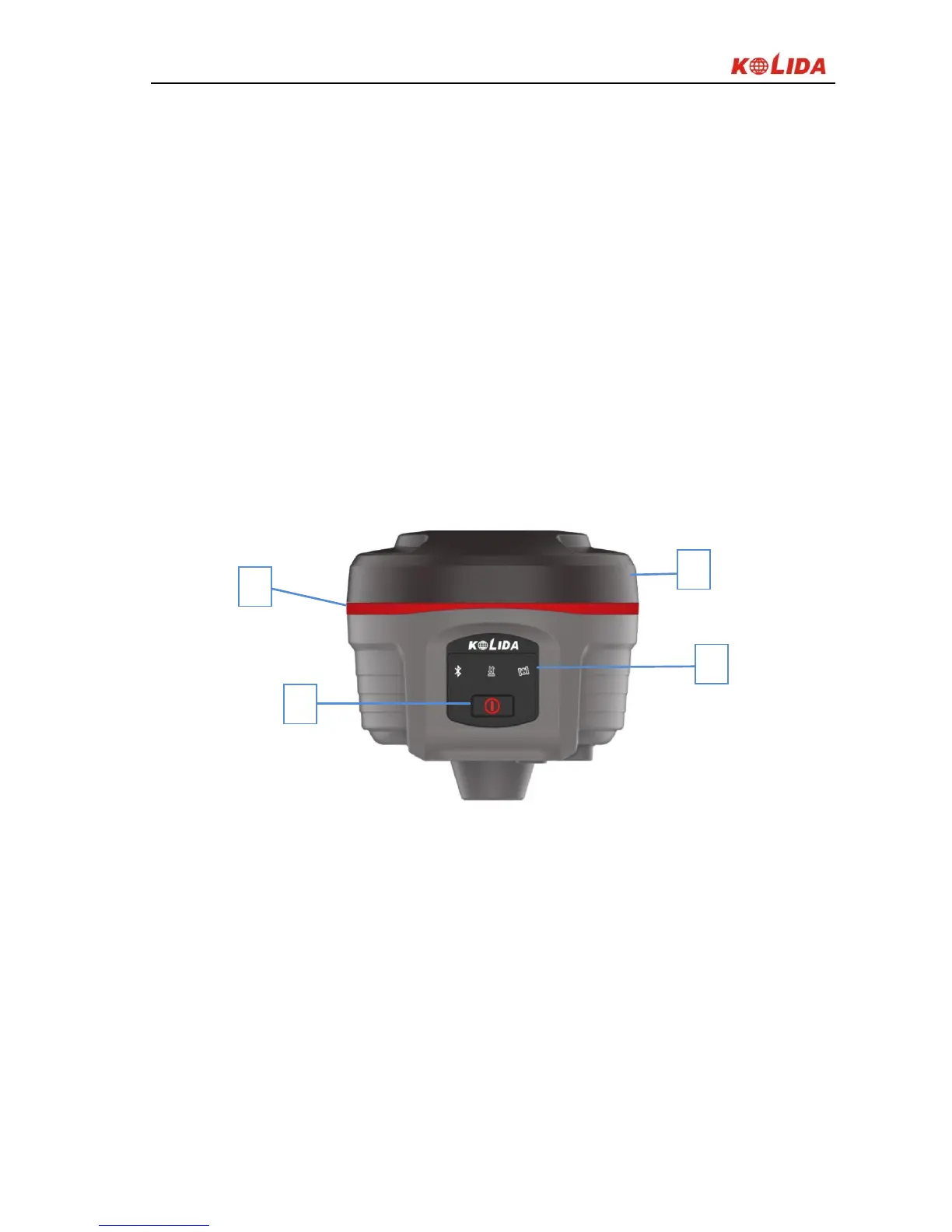

Front Panel
Figure 2-2
① Top cover ②Protection rubber ring ③Indicator light
④ Power Key
2
1
3
4
