Kolida K5 PLUS - Tilt Survey

K5 Plus GNSS
- 51 -

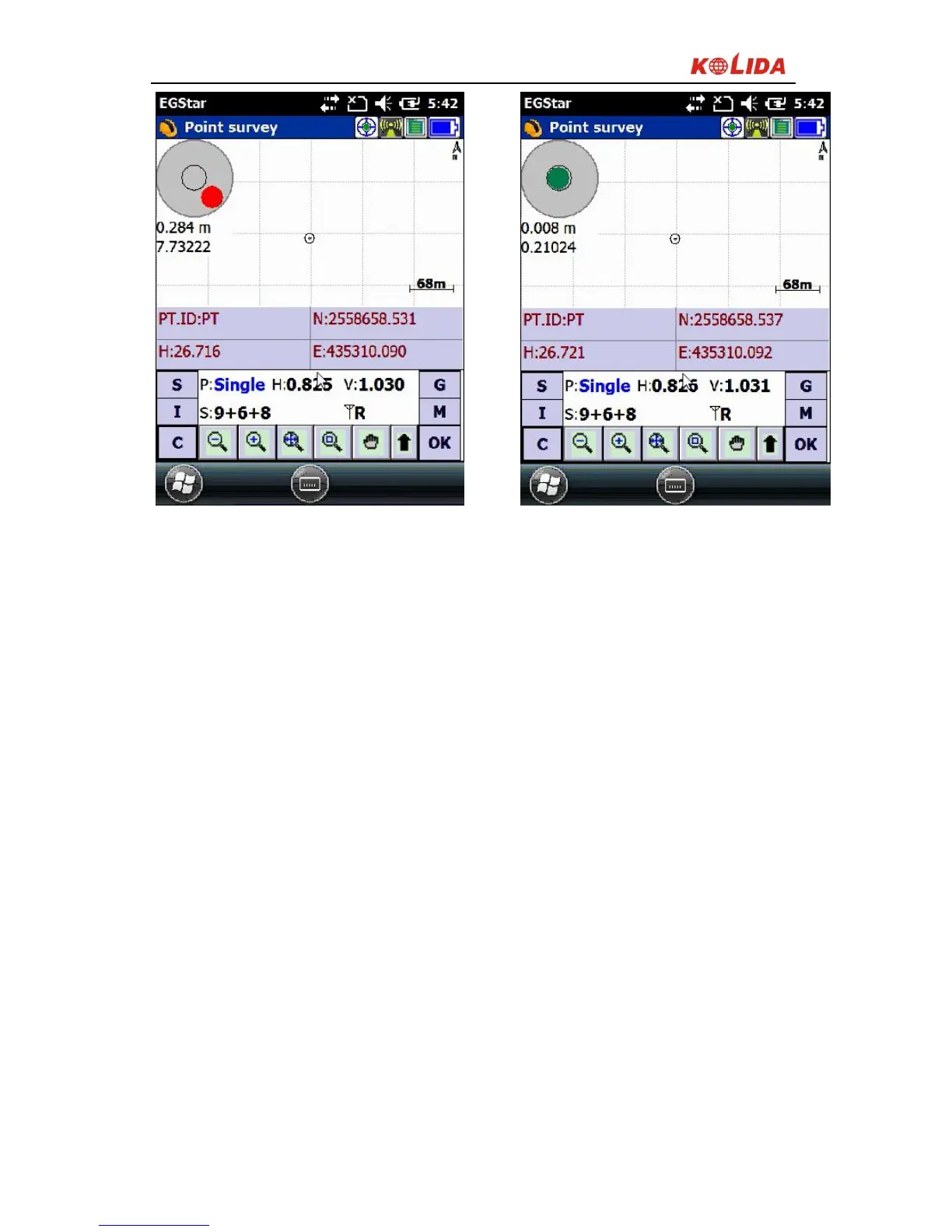

Not leveled Leveled
Figure 3-16
§3.3.4 Tilt survey
K5 PLUS supports tilt survey function, but you need to do acceleration
calibration and magnetic calibration before using it.
1. Acceleration calibration
Get into calibration screen by clicking on calibration setting button on the top of
the screen. See the picture as following.
