the base station mainframe (5-pin red jack), transmitting stations (black jack)
and external battery (red and black clip) for power supply and data
transmission.

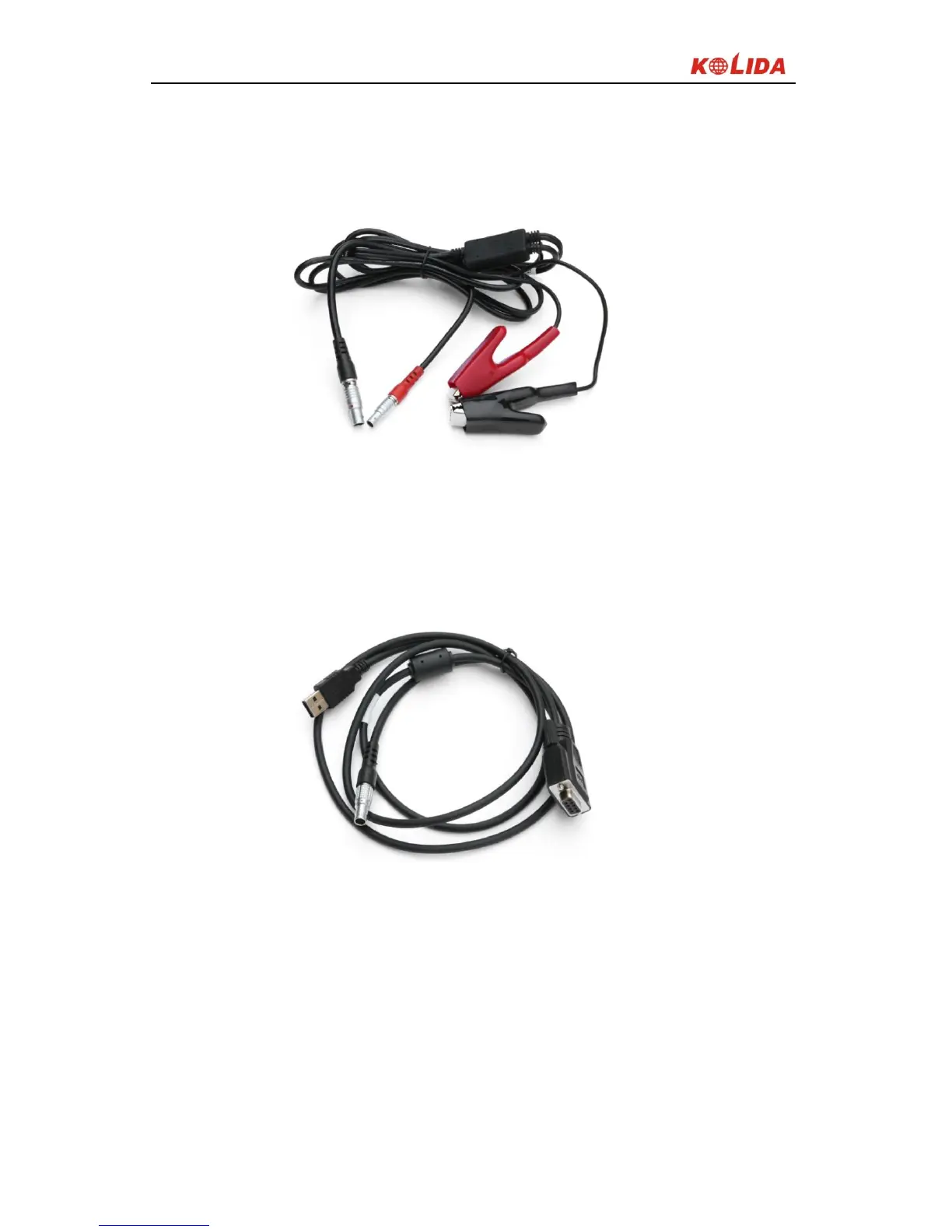

Figure 2-29 Power Cable
Mainframe multi-function data cable: the role of multi-purpose
communications cable is to connect the receiver to the host computer, for the
transmission of static data and the host firmware upgrade.
Figure 2-30 Data cable
§2.4.5 Other accessories
Other accessories include rover station centering rod, handheld bracket base
point, connectors and measuring tape.
Note: The models and types of instrument accessories will vary with the
