K5 Plus GNSS
- 32 -

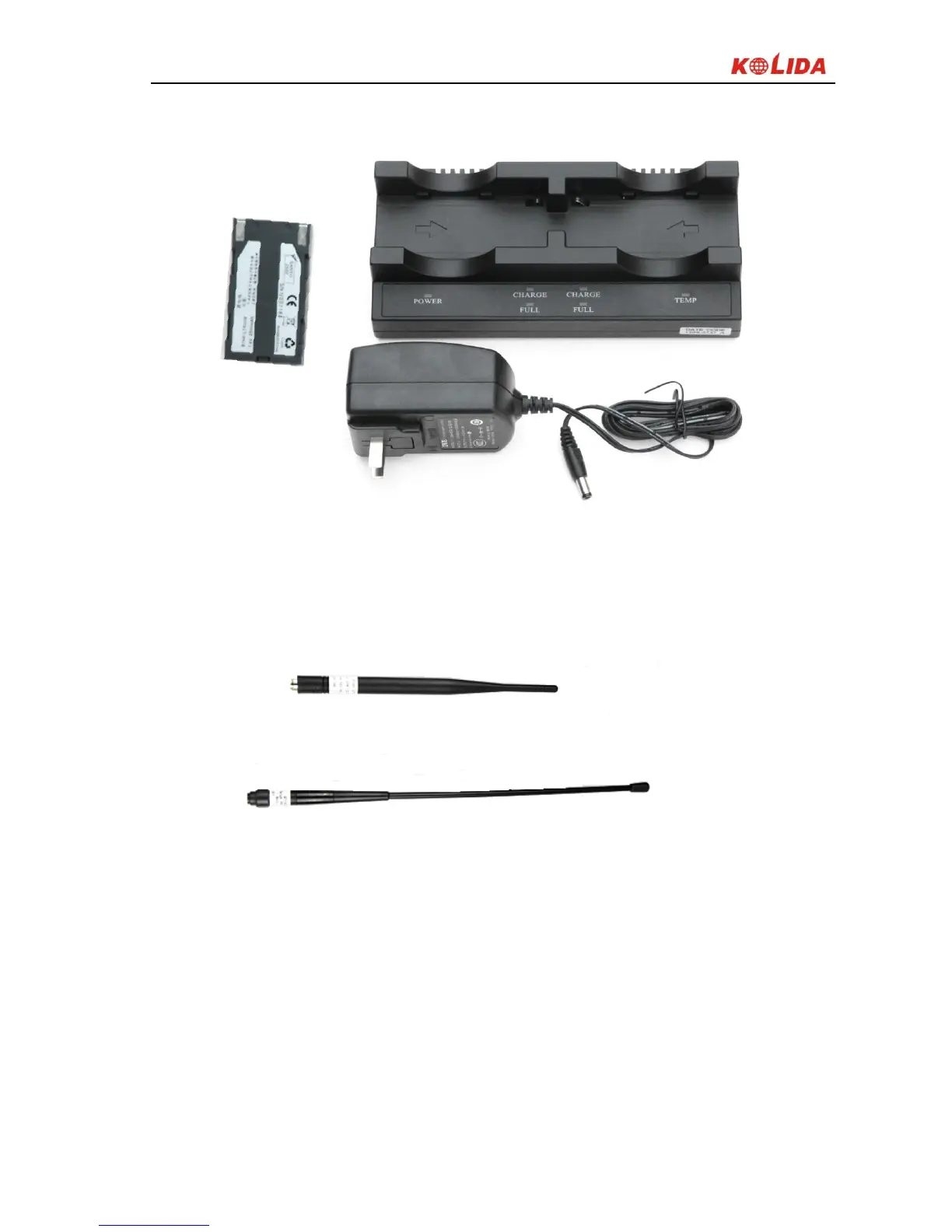

Figure 2-27 Charger& Adapter
§2.4.3 Differential antennas
Figure 2-28 GPRS antenna& UHF antenna
The differential antennas are as shown above; UHF differential antenna is
needed in UHF built-in radio base station mode and UHF built-in radio rover
station mode.
§2.4.4 Multi-function data cable
Radio Y-data cable: multi-purpose cable is a "Y"-shaped cable used to connect
