measurement point, measurement methods of antenna height in dynamic mode
includes pole height, vertical height and slant height;
Pole height: the height of the centering pole, which can be read from the
pole scale;
Vertical Height: the vertical height from the ground to the bottom of the
main mainframe + antenna phase center to the bottom of the mainframe;
Slant height: measure to the middle of the rubber ring, In the hand-held
software, select the antenna height mode to the slant height, then input the
value;
Static mode antenna height measurement: measure from the ground to the
middle of the mainframe rubber ring; select the appropriate type of antenna in
the post-processing software.

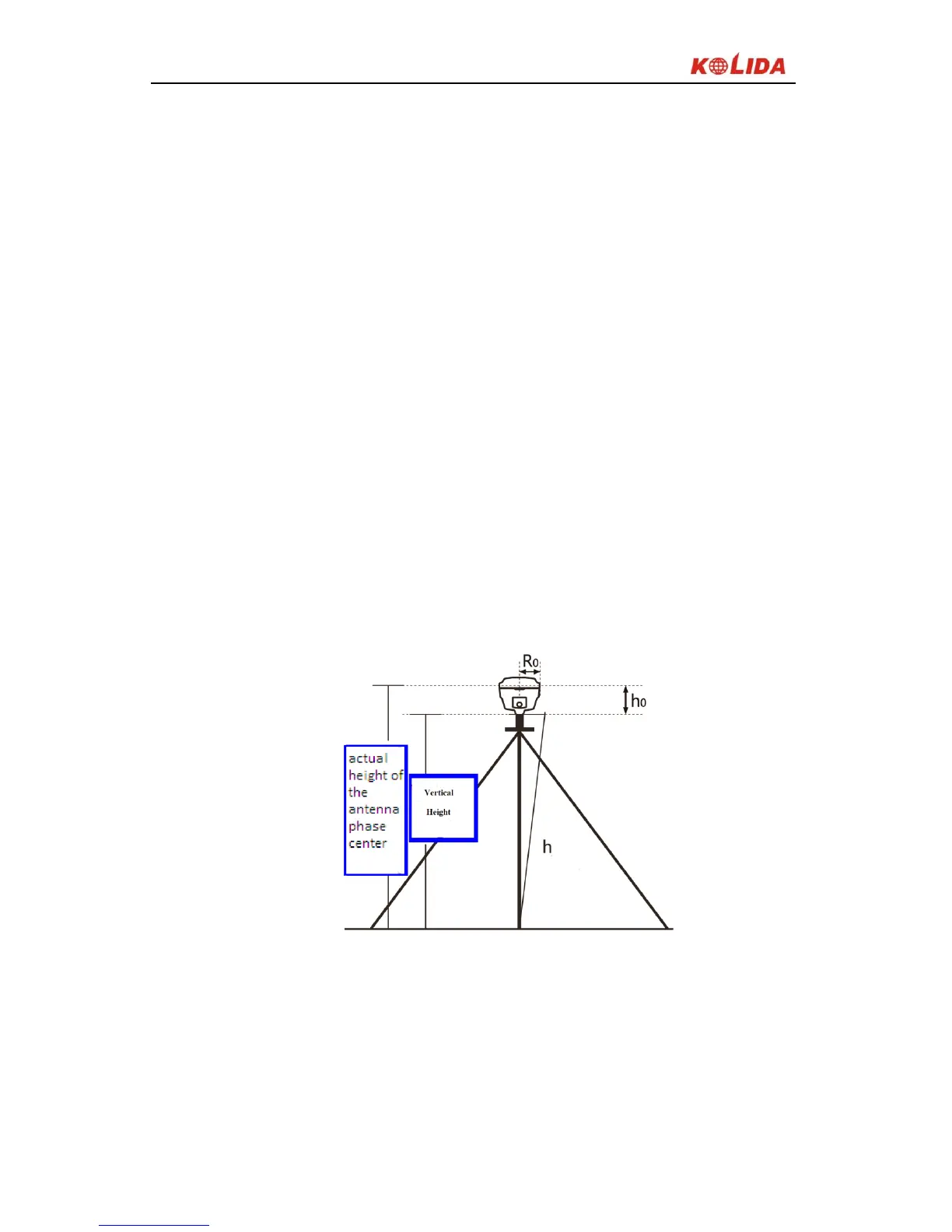

Figure 3-22
