8.4 Components of a servo system

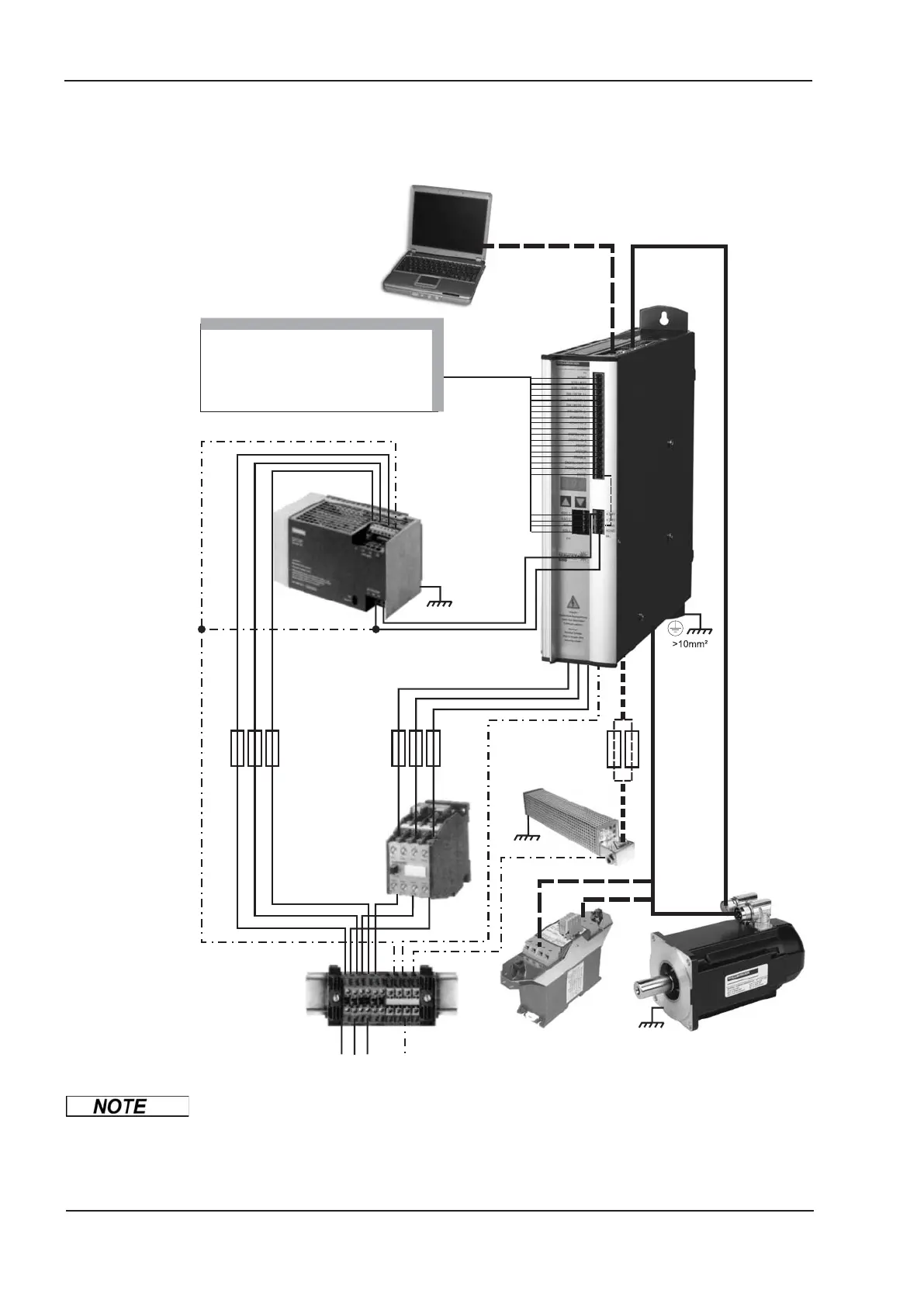

Cables drawn bold are shielded. Electrical ground is drawn with dash-dotted lines.
Optional devices are connected with dashed lines to the servo amplifier. The required
accessories are described in our accessories manual.
44 SERVOSTAR
®
601...620 Instructions Manual
Electrical Installation
07/2010 Kollmorgen
24V supply
Fuses
Drive cut-out
Terminals
Motor
Brake resistor
(optional)
PC
Motor choke
(optional)
Control / PLC
Option -AS-
I/O
