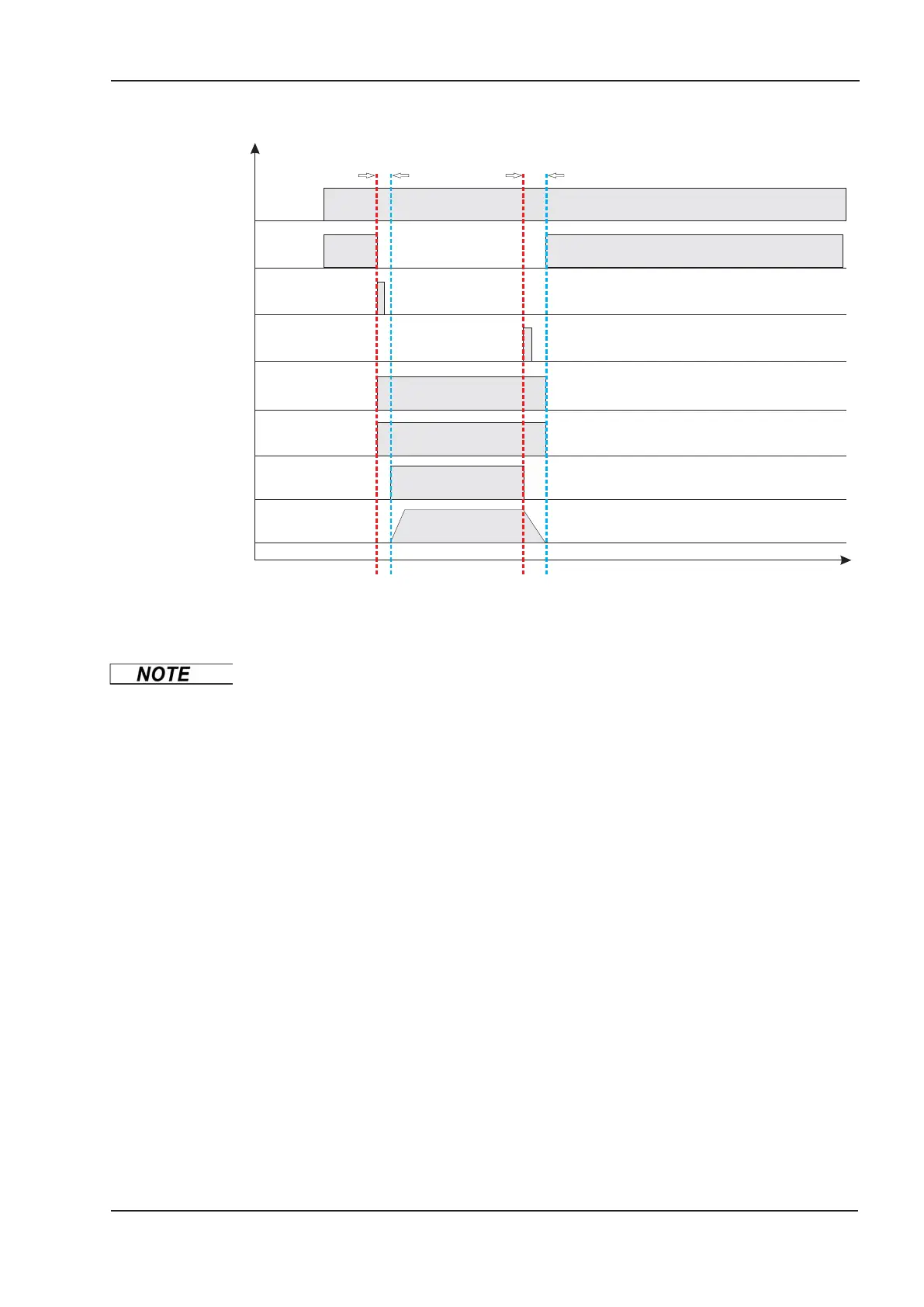

10.1.9.3 Flow chart
t(K30t) ³ 500ms
t(K10t) and t(K20t) ensure that the drive remains active until the axis has come to a standstill. This
time depends on the application and must exceed the deceleration ramp.
The drive must have been brought to a safe standstill by the time t(K10t) and t(K20t) have
elapsed. After this point, active braking with the servo amplifier is no longer possible.
SERVOSTAR
®
601...620 Instructions Manual 97
Kollmorgen
07/2010 Expansions / Accessories
24V
AS Relais
ON
K1
OFF
K10t / K20t
K30t / Enable
Speed
t(K30t) t(K10t) / t(K20t)
