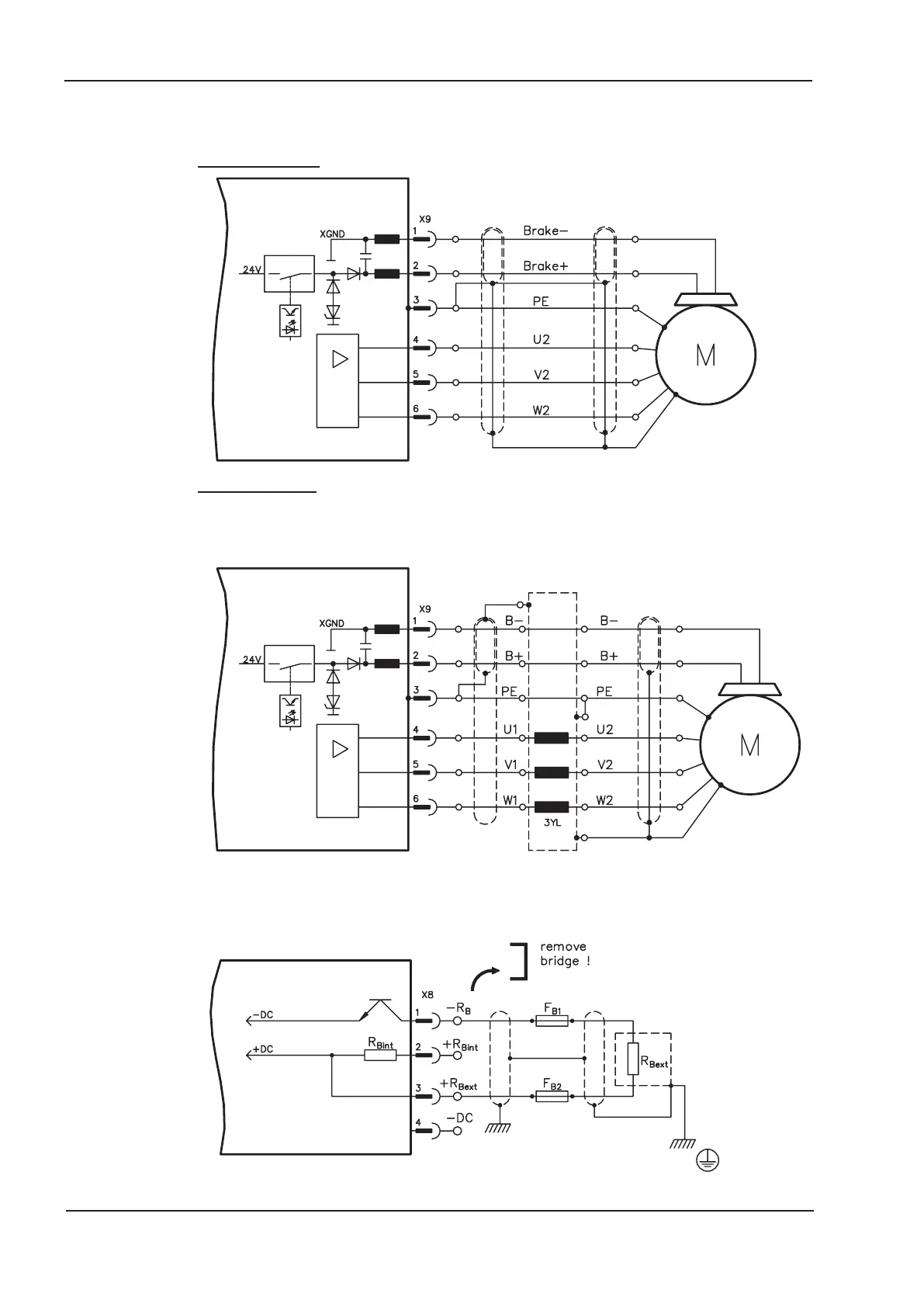

8.9 Motor connection with holding brake (X9)
Lead length £ 25m
Lead length >25m
For lead lengths above 25m the choke box 3YL (see accessories manual) must be wired into
the motor lead, close to the amplifier.
8.10 External brake resistor (X8)
Remove the plug-in link between the terminals X8/1 (-R
B
) and X8/2 (+R
bint
).
50 SERVOSTAR
®
601...620 Instructions Manual
Electrical Installation
07/2010 Kollmorgen
SERVOSTAR 600
SERVOSTAR 600
SERVOSTAR 600
