QUICK FILL SERVICE CENTER
The service center can be located on either side of the
machine and is used to fill system fluids. Table 1 on
page 4 shows the maximum recomended fill pressures
for the service center.
Table 1: Maximum Fill Pressures
Fill System kPa psi
Engine Crankcase 345 50
Reserve Tank 862 125
Hydraulic Tank 345 50
Coolant 345 50
Grease 10 342 1 500
Fuel 103 15

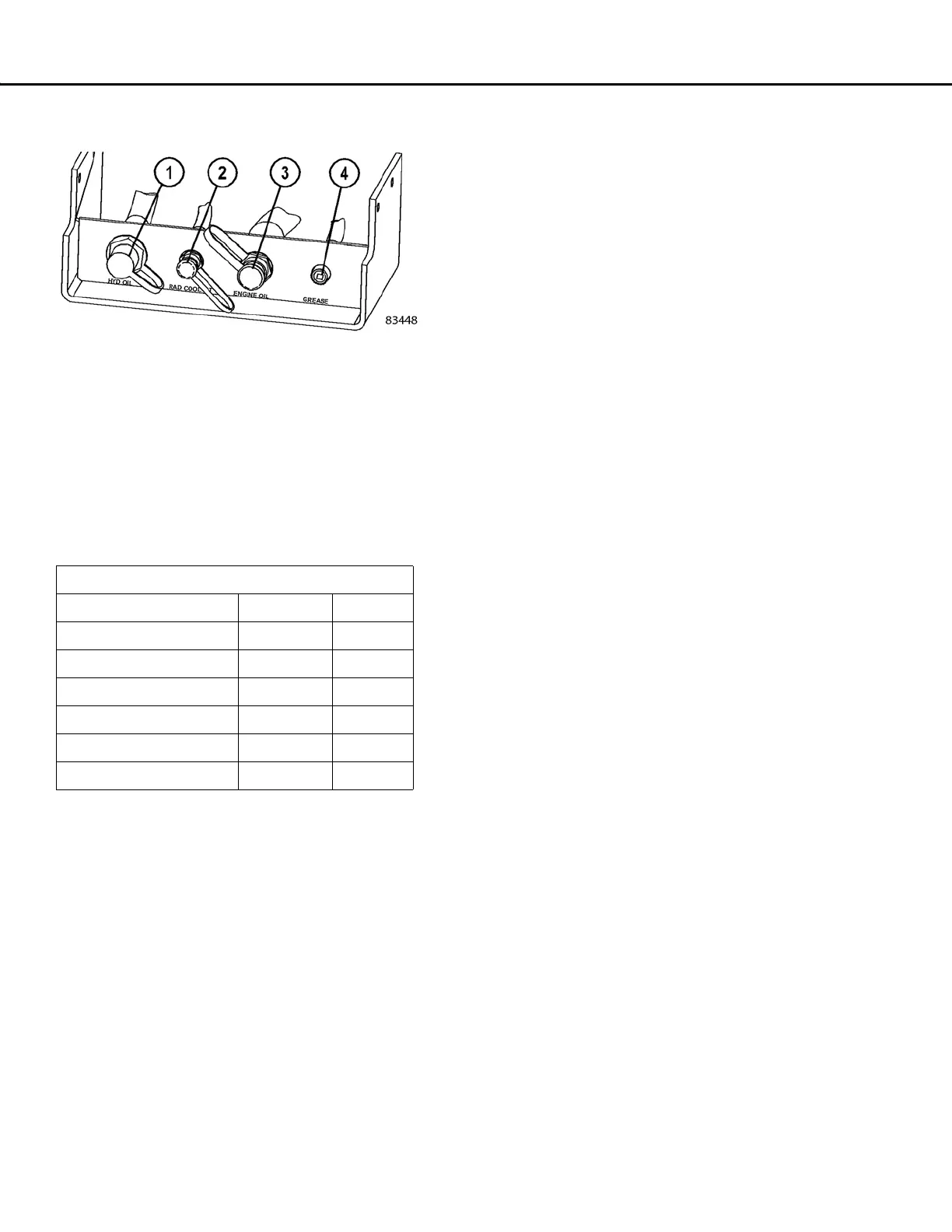

FIGURE 40-4. SERVICE CENTER
1. Hydraulic Oil
2. Radiator Coolant
3. Engine Oil
4. Grease
