OM3223 Operation - Section 32
Operator Cab and Controls Page 32-9
Download Ports and Connectors
Download ports and connectors are located inside
the center console and are illustrated in Figure 32-7.
Engine Diagnostics Port
Engine diagnostics port (12) is used by qualified per-
sonnel to access engine diagnostic information.
Komatsu Engine CENSE Connector
CENSE Connector (13) is a three-pin connector is for
use by qualified personnel to access engine diagnos-
tic information for the CENSE system. Refer to the
engine manufacturer’s service publications for trou-
bleshooting information.
Statex III Downlad Port
Statex III download port (14) is for use by qualified
personnel to access G.E. STATEX III electric propul-
sion diagnostic information and data.
Modular Mining Port (Optional)
Modular mining port location is used if the optional
Modular Mining System is installed on the truck.
Centry™ Fuel Control
Diagnostics Download Port (Optional)
Diagnostics download port is for use by qualified per-
sonnel to access the Centry™ fuel control system
diagnostic information.
Payload Meter
Payload meter (1, Figure 32-7) and download con-
nector (2) are used to provide management with
operational data such as tonnage hauled and cycle
times.
Refer to Section 6 Optional Equipment, for a more
complete description of the payload meter and its
functions.
Payload Meter Download Connector
Payload meter download connector (2, Figure 32-9)
is used with a special cable to allow the payload
meter (1) to communicate with a portable computer.

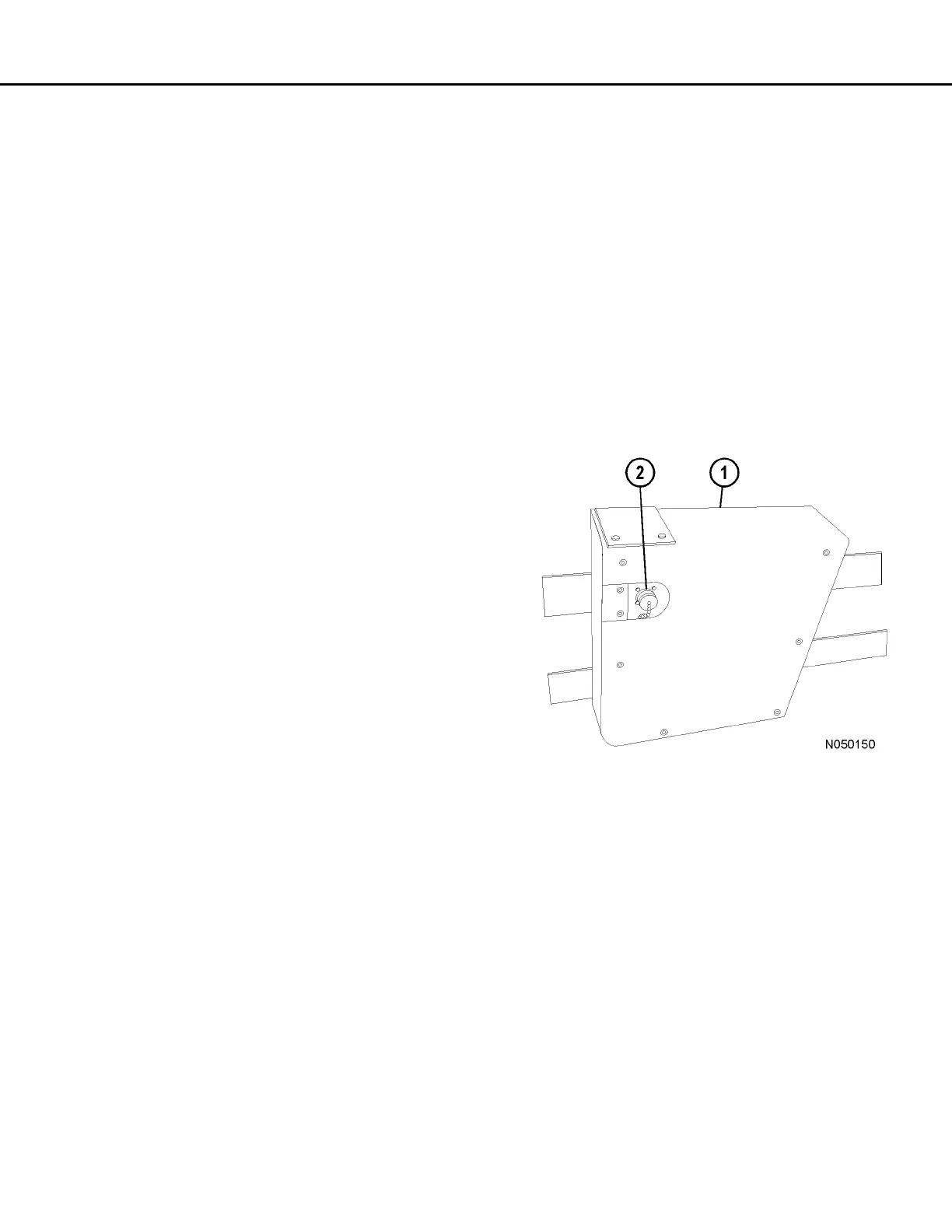

1. Payload Meter 2. Download Connector
FIGURE 32-9. PAYLOAD METER
