9. HAZARD LIGHTS SWITCH, N/O - Wires 11L/45L/45R
10. LAMP CHECK SWITCH, N/O (Mom.) -
Wires 712/52B/33H/710
* USED FOR TROLLEY OPTION ONLY

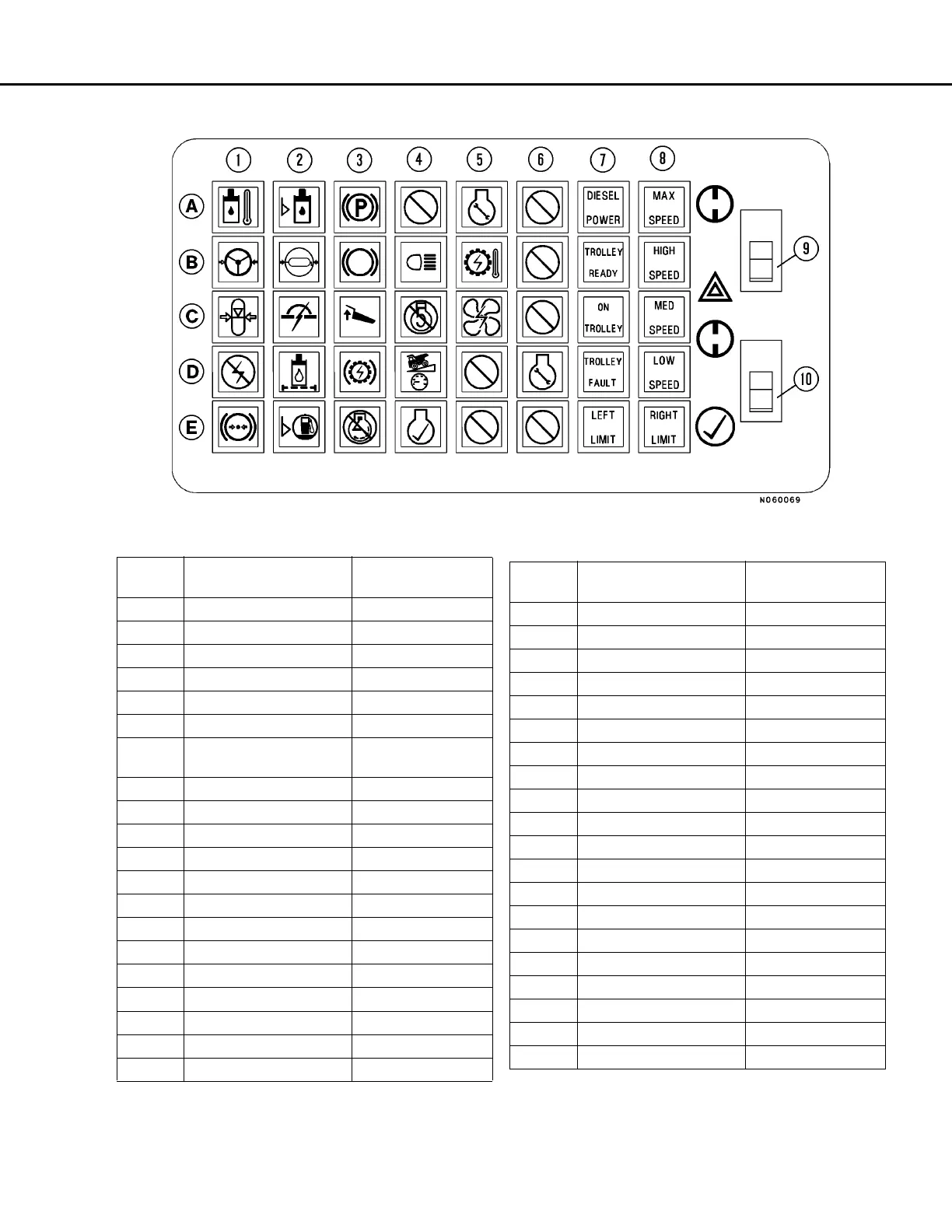

Row /
Column
Indicator
Description
Indicator Color
Wire Index
A1 Hydraulic Oil Temp. Red - 12F/34TL
B1 Steering Pressure Red - 12F/33A
C1 Low Accumulator Press. Red - 12F/33K
D1 Electric Sys. Fault Red - 12F/79V
E1 Low Brake Pressure Red - 12F/33L
A2 Hydraulic Tank Level Red - 12F/34LL
B2 Low Automatic
Lubrication Pressure
Yellow -12FD8/
68LLP
C2 Circuit Breaker Tripped Yellow - 12F/31CB
D2 Hydraulic Oil Filter Yellow - 12F/39
E2 Low Fuel Yellow - 12F/38
A3 Park Brake Yellow - 12M/52A
B3 Service Brake Yellow - 12M/44L
C3 Body Up Yellow - 12M/63L
D3 Dynamic Retarding Yellow - 12M/44DL
E3 Stop Engine - (DDC) Red - 12M/509MA
A4 Blank - For Future Use Yellow - 12M/SP2
B4 Back-Up Lights Yellow - 12M/47L
C4 5 Min. Idle Timer Yellow - 12M/23L1
D4 Retard Speed Control Yellow - 12M/31R
E4 Check Engine (DDC) Yellow - 12M/419
Row /
Column
Indicator
Description
Indicator Color
Wire Index
A5 Service Engine (Aem) Blue - 12M/528A
B5 Wheel Motor Temp. Red - 12F/722L
C5 Blower OFF Red - 12F/32B
D5 Blank - For Future Use Yellow - 12F/SP4
E5 Blank - For Future Use Yellow - 12F/SP5
A6 Blank - For Future Use Yellow - 12M/SP6
B6 Blank - For Future Use Red - 12M/SP7
C6 Blank - For Future Use Yellow - 12M/SP8
D6 Service Engine (Cen) Yellow - 528/12M
E6 Blank - For Future Use Red - 12M/SP9
A7 * Diesel Power Yellow - 71/719DP
B7 * Trolley Ready Yellow - 71/76Z
C7 * On Trolley Green - 71/719SB
D7 * Trolley Fault Red - 71/78CA
E7 * Left Limit Yellow - 71/719P
A8 * Max. Speed Green - 71/721L
B8 * High Speed Green - 71/721K
C8 * Med Speed Green - 71/721J
D8 * Low Speed Green - 71/721H
E8 * Right Limit Yellow - 71/719M
